Albin

40 Sundeck

1988–93

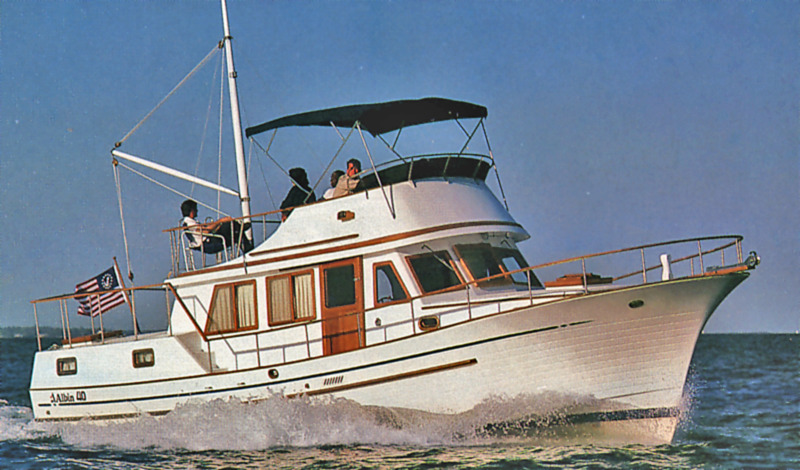

Albin 40 Sundeck
Sistership to the popular Albin 40 Double Cabin, the Albin 40 Sundeck offers the space and comfort of a full-beam master stateroom at the expense of the walkaround decks found on the 40 Double Cabin. Built on a solid fiberglass semi-displacement hull, both the Sundeck and Double Cabin models share similar two-stateroom, galley-down layouts with a queen bed aft and port and starboard deck doors in the salon. The aft cabin of the 40 Sundeck seems surprisingly spacious, but the U-shaped galley is uncomfortably confining with only modest storage space. Visibility from the lower helm is very good, however, and while the full teak interior can be a little oppressive, most traditionalists will find it to their liking. Topside, the flybridge will seat six aft of the helm, and there’s room on the full-width aft deck for several pieces of deck furniture. Additional features include a folding mast and boom, teak window frames and handrails, and a tub/shower in the aft head. Most Albin 40s were built with twin 135hp Lehman diesels. Later models have 210hp Cummins diesels (12 knots cruise/15 top).
Additional notes (BoatUS)
Overview: Conventional Taiwan-built trawler with full-beam aft cabin is handsome, comfortable, economical.@Features: Two-stateroom, galley-down interior includes lower helm, fold-down serving counter, parquet flooring, port/starboard deck doors, excellent storage. Teak interior woodwork is finished to high Asian standards. Flybridge seats six. Roomy aft deck is a plus.@Comments: Good range. Full-length keel protects props, rudders from grounding.@Performance: Cruise at 10 knots with 135hp Lehman diesels; 12 knots with 210hp Cummins diesels.

Floor Plans

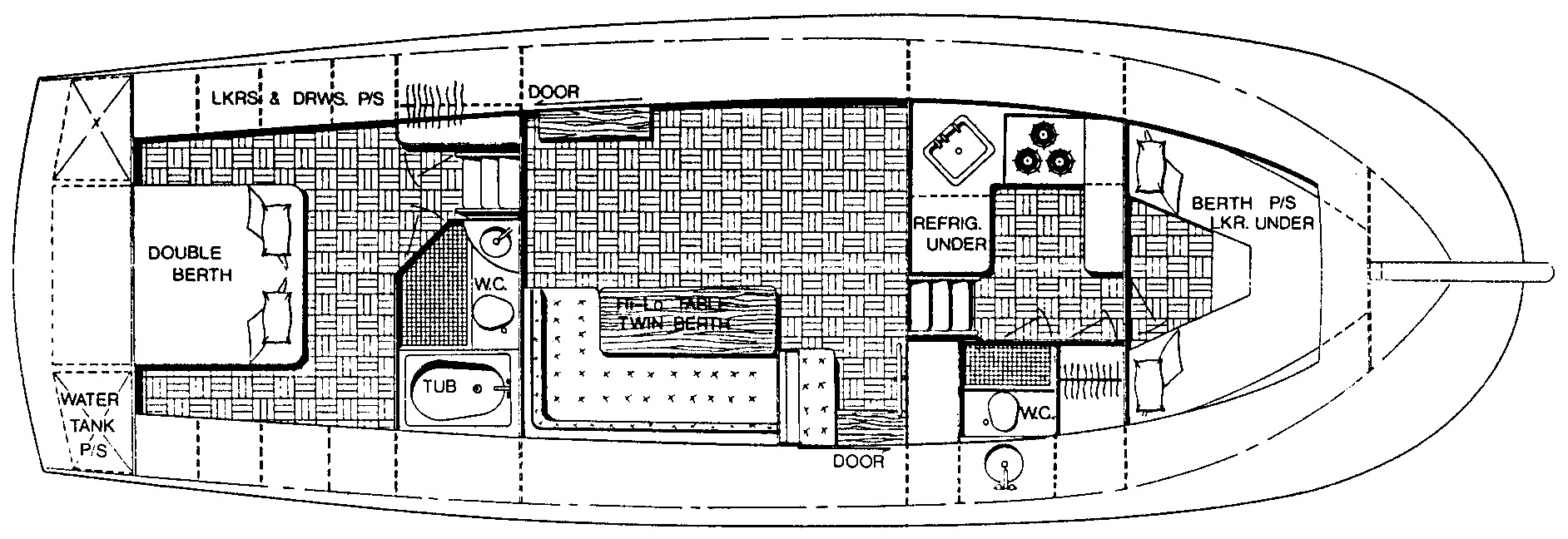

Albin 40 Sundeck floor plan
