Description

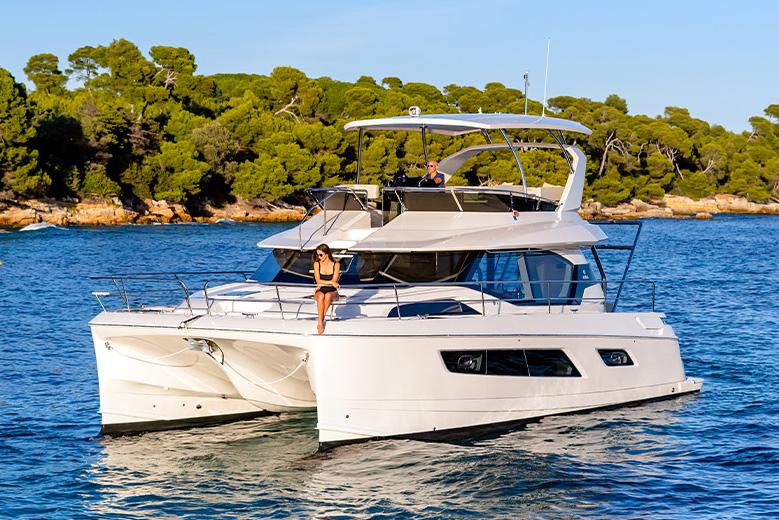

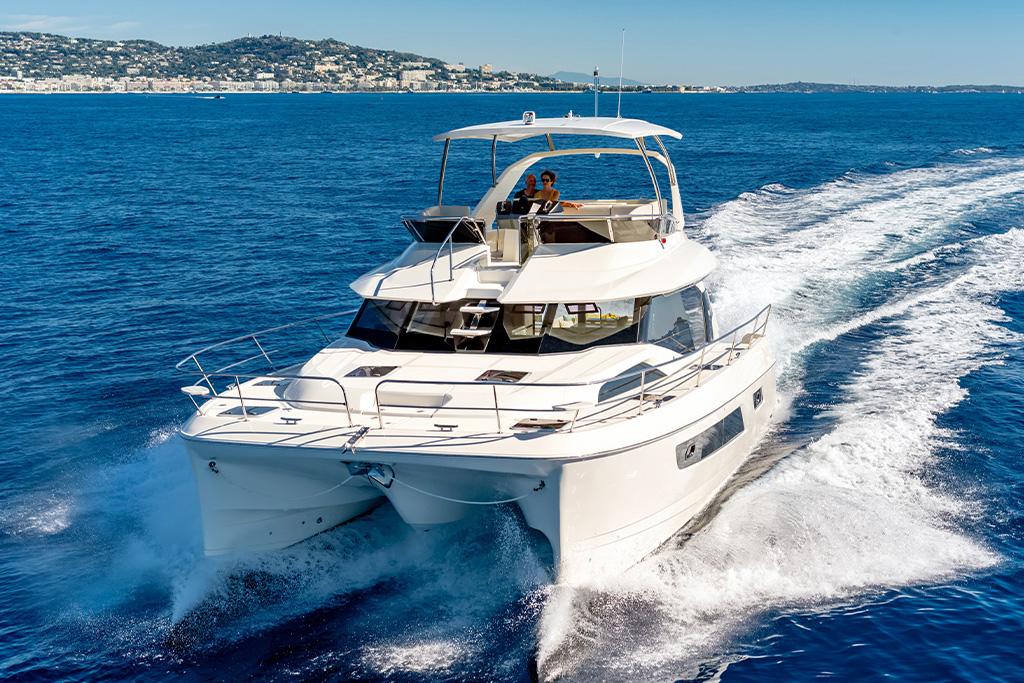

Aquila 44 Yacht Power Catamaran

Born of innovation and experience, the luxurious Aquila 44 Yacht Power Catamaran is a world leader in its class.

Designed to be both a long distance cruising yacht and a highly social platform, the highly experienced Aquila design and engineering team created the Aquila 44 Yacht to optimize performance.

Two Volvo Penta diesels are situated aft behind the living compartments reducing noise and vibrations.

Bulbous bows increase the waterline for greater efficiency while reducing pitching moments.

Multifunction displays, digital controls, joystick operation, engine monitoring displays, thrusters, and widely spaced main engines make operating the Aquila 44 Yacht easily accomplished by a single couple.

With an enormous amount of attention to detail and knowledge of how owners use their boats, both the exterior and interior spaces are perfected to serve those utilizations.

The stairway from the flybridge to the foredeck gives safe easy access to the ground tackle locker and forward cleats when anchoring or docking. Wide side decks and safety handrails are another example of the Aquila 44’s commitment to owner’s and guests’ comfort and safety.

Available with a 3-cabin layout featuring a salon and galley with 360° views and an extensive flybridge, the layout of the Aquila 44 Yacht makes entertaining a crowd aboard easy.

Boarding from the port or starboard swim platforms, guest step up to the aft deck with an al fresco dinette.

The window partition between the aft deck and the interior galley lifts and the countertop folds out to create a service bar.

The galley is strategically placed between the aft deck and the salon and dinette on the main deck making it easy to serve guest inside and outside.

A summer kitchen is centrally located to attend to guests in the aft mounted dinette and those on the flybridge can enjoy panoramic views along with the operator while underway.

Customisation options are available to meet an array of boating lifestyles.

Aquila 44 Yacht Power Catamaran

Propulsion

Standard 2 x D4 230 HP Volvo Penta Inboard V-Drive

Optional 2 x D4 320 HP Volvo Penta Inboard V-Drive

Construction

Hull and deck material: Resin infused vinyl ester throughout

Bulkhead and reinforcing: Resin infused vinyl ester throughout

Core materials (vary in density): PVC

Gelcoat of hull: NPG

Bulkheads: Water tight fore and aft

Bulbous Bows: Moulded and attached; breakaway safety

Hull and deck windows: Tempered glass meeting ISO standards

Flybridge structure: Custom built composite structure

Standard Features

  • An exceptional performing and seaworthy hull shape providing first in class stability and comfort
  • Expansive outdoor living and entertaining spaces along with luxurious interior styling and amenities
  • Plenty of shade on flybridge via fiberglass hardtop with 316 polished stainless steel supports

    Integrated bar area connecting social areas between aft cockpit and salon/galley
  • Comfortable seating throughout for up to 21 people onboard
  • Direct bow access from central steps leading from flybridge to bow area
  • FUSION multi-zone audio system with eight (8) Fusion speakers and Bluetooth connectivity
  • Premium comforts provided for three double berth cabins each with their individual walk in toilet with separate shower

Interior Layout

Three (3) cabins with double berths including private head with walk in shower and fresh water electric toilet

Large salon area with comfortable U-shaped seating

Large galley area with common household amenities

Salon Area

Excellent all around visibility from salon seating

Shatter-proof windows with external overhangs offering excellent visibility and reduced direct sunlight

Tempered glass hinged window via tempered glass door to cockpit offers excellent ventilation and through flow

Opening port lights in forward salon windows provide excellent ventilation (4 total)

Custom blinds fitted on salon outboard windows

Overhead LED ceiling lights, LED mood lighting and LED courtesy lighting

Panel ceilings with decorative solid wood trim and LED accent lighting

Cabinets and counter top on starboard side

U-shaped salon lounge settee around salon table with seating up to six (6) people

Salon table which has ability to convert into comfortable single bed

Large shelves behind settees

Upholstered cushions

Fusion speakers (2 total)

Vertical 316 stainless steel handrail in salon

Synthetic wear resistant flooring offering maintenance free natural wood look

Navigation Area

AC/DC electrical panel with circuit breakers and transfer switches for all electrical systems

Dedicated service panel for optional generator, desalinator and inverter control

Dedicated electronics display panel offering easy access and visibility to electronic systems

FUSION multi-zone audio system with eight (8) Fusion Speakers and

Bluetooth connectivity

Electronic panel displaying navigation lights and bilge pump warning lights and manual switches

Light switch panel controlling all salon, galley and aft cockpit lighting

Remote battery switches for all onboard batteries

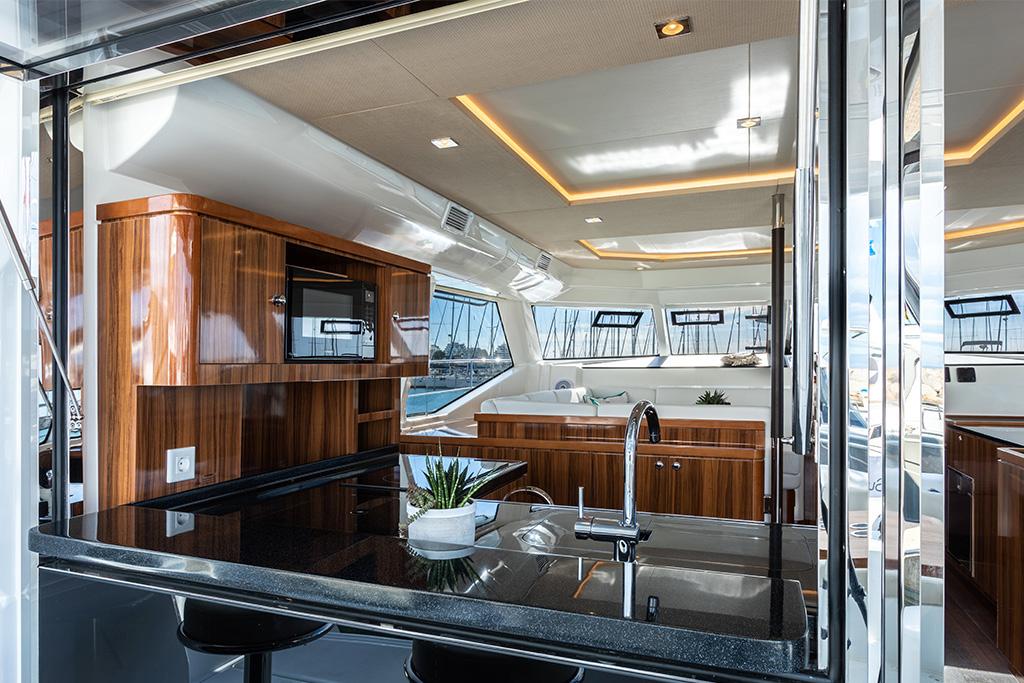

Galley Area

Induction two burner electrical cooktop

Convection microwave

Two drawer front access refrigerator/freezer offering easy access and efficient packing

Double stainless steel sink with Corian worktop cover and single lever variable temperature faucet

Storage cupboards & drawers offering ample storage for all galley accessories

Deep dish drying rack with Corian worktop cover

Durable stain resistant Corian countertop

Ample storage lockers on starboard side under Corian worktop surface

Tilt out garbage bin

Dedicated blender or coffee maker area

Overhead LED ceiling lights as well as mood lighting

Synthetic wear resistant flooring offering maintenance free natural wood look

Stateroom Areas

Large windows throughout offering excellent views

Dedicated hanging lockers

Ample storage lockers including storage located underneath beds

Custom blinds fitted on cabin hull windows

Concealed shade blind and insect screen on opening deck hatch where installed

Overhead LED ceiling lighting and floor courtesy lighting

Overhead LED reading lights

Island style beds in all staterooms

Large desk area with ample storage located in forward master cabin on starboard side

Memory foam mattresses

Synthetic wear resistant flooring offering maintenance free natural wood look

Cabin doors offering privacy

Large master stateroom mattress (71”W x 79” L / 180cm x 200cm)

Large guest cabin mattress sizes (59”W x 79” L / 150cm x 200cm)

Heads and Separate Shower Stalls

Quiet electric push button control fresh water flush toilets with large bowl

Private door leading into cabin

Opening deck hatch offering ample ventilation

Opening port light in large window

Stylish round wash basin with single lever variable temperature faucet

Corian countertop surrounding wash basin

Custom wood blinds

Vanity lockers with mirrors

Synthetic wear resistant flooring offering maintenance free natural wood look

Separate shower stall with seat and flexible shower faucet

Acrylic door separating shower from the rest of the bathroom

Automatic shower & sink drain via dedicated sealed sump box

Overhead LED lighting

Toilet roll holder located in sink locker

Hull and Deck Features

Opening deck hatches carefully positioned to enhance ventilation in cabins (8 total)

Opening portlights installed in hull side windows and forward salon windows (8 total)

Custom built PVC rubrail with 316 stainless steel insert offering all around protection

Custom solid deck railings in 316 stainless steel

Comfortable & protected bow seats integrated into deck railing (2 total)

Mooring cleats in solid 316 polished stainless steel thru bolted (10 total)

Deck fill plates in 316 stainless steel (2 x water; 2 x fuel; 3 x waste)

Stainless steel bow roller for secondary anchor

Anchor locker with 1500 watt windlass including handheld remote control with chain lock

Primary 55 lb. Delta anchor with 150 ft. 3/8” chain with shackles and bridle system

Secondary 45 lb. Danforth anchor with 200 ft. 3/4” rope on roll

Well placed ergonomic handrails in 316 stainless steel ensuring secure movement onboard

Forward access steps from flybridge to bow with 316 polished stainless steel support structure

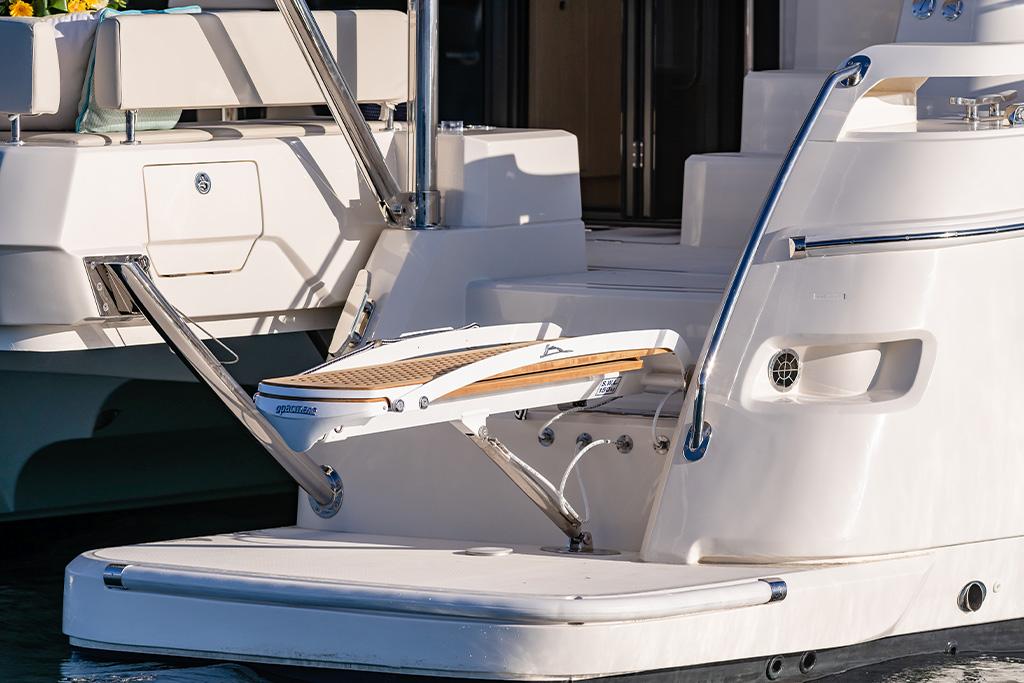

Ergonomic transom steps for easy boarding and comfortable lounging off stern

LED navigation lights, running lights and anchoring light

Engine ventilation intakes with FRP cowling cover

Lay flat stainless steel swim ladder

Large starboard and port bow lockers with easy lift gas hinges for fender or gear storage

Self draining storage locker in aft cockpit floor

Aft cockpit, flybridge and side decks all self draining

Aft cockpit bar area with two (2) stainless steel bar stools

Engine access lockers with easy lift gas hinge allowing easy access to engine room

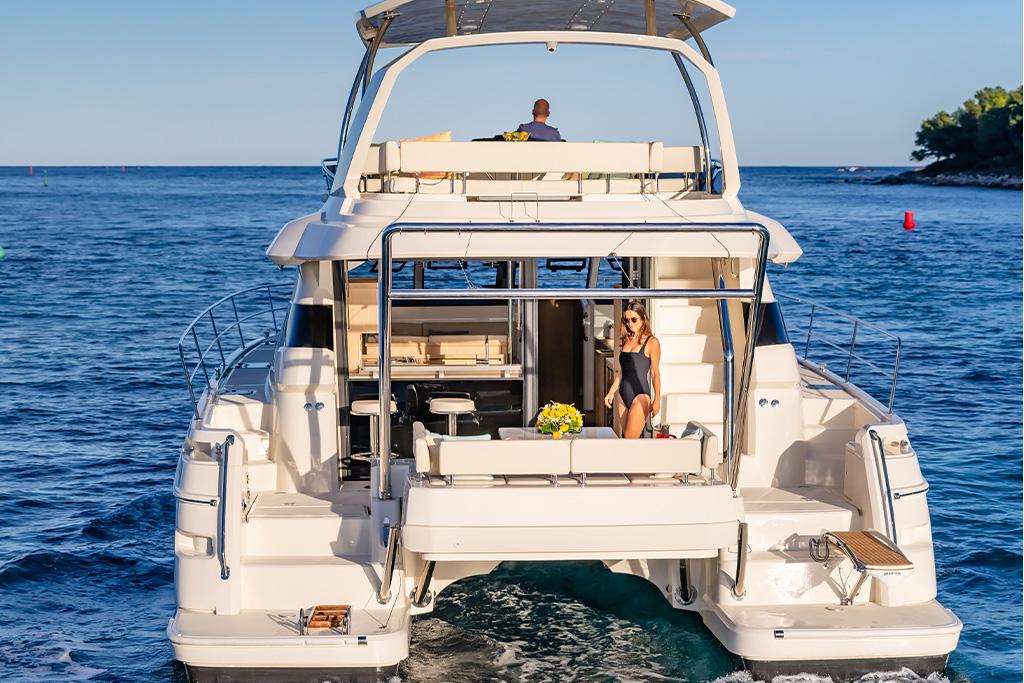

Aft cockpit with expansive hinging window and door opening to galley

Aft cockpit seating with U-shaped settee with integrated cup holders, built in cooler under seat and lowering cockpit table

LED deck courtesy lights located at transom, cockpit and flybridge

Large spacious foredeck for sunbathing

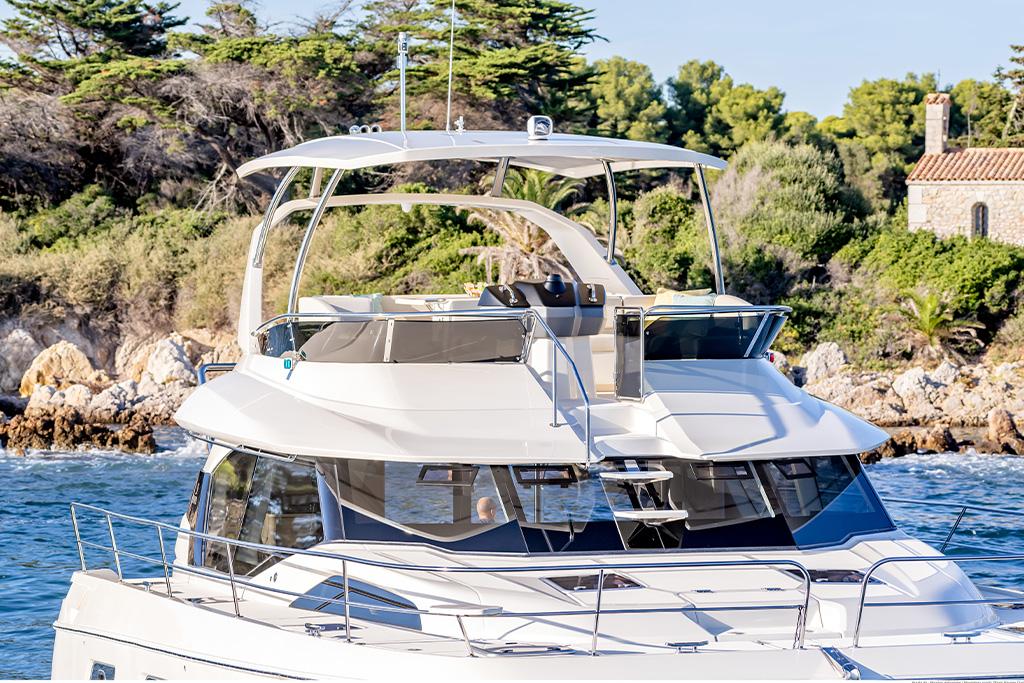

Flybridge

Expansive FRP hard top with radar arch and stainless steel supports

Access to flybridge from aft stairway and forward bow steps

Main access from aft cockpit via integrated molded steps

Ergonomic positioned handrail for safe access from aft cockpit

Forward flybridge access via center forward bow steps with built in stainless steel handrail for safety

Flybridge guardrails with acrylic wind protection inserts

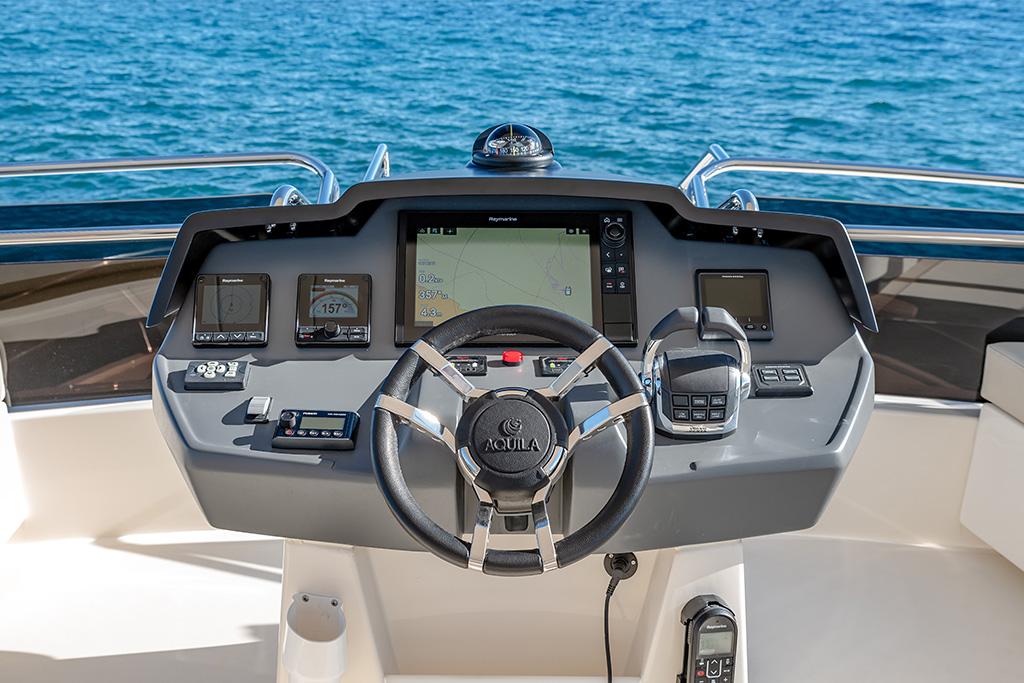

Electronic engine double lever throttle and gearshift control

Hydraulic steering with variable position steering wheel

Volvo Penta 7” colour display at helm

Helm station in dark grey non glare UV protection finish

Helm station storage canvas cover

Compass at helm station

Four (4) Fusion marine speakers mounted in hard top ceiling with remote mounted at helm

Dark acrylic windscreen with 316 stainless steel handrail support to deflect wind glare

Spacious and comfortable upholstered helm seat and backrest for three (3) people

Comfortable port side seating adjacent to helm station

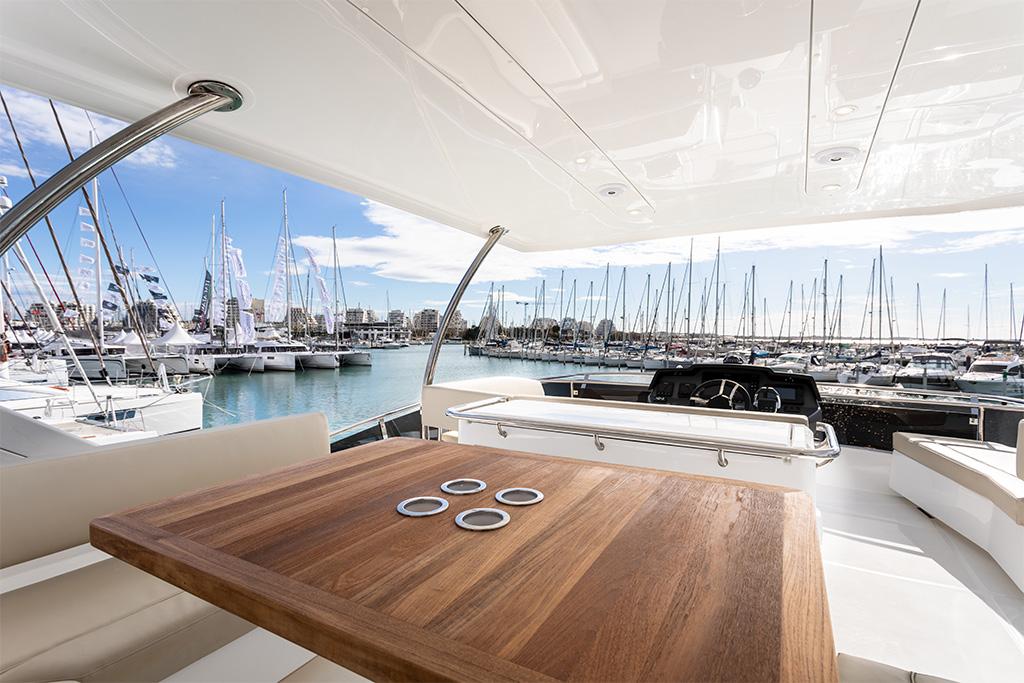

Flybridge table with fold down extensions comfortably seating six (6) people

Upholstered flybridge cushions with backrests

Wet bar behind helm station incorporating Corian work surface and sink with hot/cold water faucet

Integrated hinged fiberglass cover for wet bar area

Large storage area under wet bar with two (2) access doors

Dedicated life raft storage under aft seat

Lifejacket and safety gear storage under flybridge seats

Cup holders located in various areas around flybridge (7 total)

Dedicated electrical switch panel for overhead LED lighting and flybridge electrical items including waterproof AC outlet

Water and Bilge System

Fresh water pressure pumps with accumulator tank offering equal water pressure throughout

Dockside fresh water supply connection with pressure reducer

Two (2) hot water cylinders (16 gal. / 60 L.) powered by engine heat exchanges and AC power

Two (2) connected water tanks (103 gal. / 390 L.)

Variable temperature cockpit shower

Water tank level gauges located on service panel

Four (4) automatic 12-volt bilge pumps

Water System

Grey water from showers and sinks collected in three (3) sealed sump box’s with auto discharge overboard

Three (3) black water holding tanks (21 gal. / 80 L.) discharged via deck pump out or electric overboard pumps

Electrical System

Inverter/Charger (12/110v 5000 200VA OR 12/230v 5000 200VA) – voltage dependent of boats destination

Four (4) house Batteries in dedicated battery locker (200amp)

Two (2) dedicated engine start batteries (200amp)

AC power supplied by two (2) shore power cables (50amp 125/250v)

Dedicated circuit breaker switches for all high load components

Galvanic isolator protection system

Two (2) shore power supply plugs (50amp)

Fuel System

Diesel fuel system with Racor water separation filters

Dedicated fuel tank for each engine (147 gal. / 560 L.)

Fuel filters for each engine

Aluminum fuel tanks with safety shut off valves and level monitors at helm station

Engine Room

Custom designed underwater engine exhaust to reduce engine emission noise

Automatic fire suppression heat activated system with alarm monitors at helm station

Electronic start/stop switches at helm station with E-Key protection

Engine room with 50mm flame retardant polyurethane foam covered metalized polyester film insulation

Engine support frame built in 316 stainless steel

Engine room lighting

Automatic bilge pump in each engine room with warning light at helm and nav station

Excellent all around engine and systems access for ease of maintenance

Hydraulic steering cylinders (2 total)

Underwater Gear

Engine V-drive transmission for compact efficiency

Propeller tunnels for reduced draft and maximum efficiency

Four (4) blade bronze propellers

Machined stainless steel propeller shafts with rope cutter installed on each shaft

Rudders and tiller arm in 316 stainless steel with FRP tube

Shut off valves on all salt water intakes in engine rooms

Sea water strainers with transparent lid

Watertight self aligning dripless shaft seal with 316 stainless steel housing

Extended bronze P-bracket for maximum propeller protection

Sacrificial skeg forward of drive for added running gear protection

Black antifouling paint on hull surface at and below waterline

Technical Features

Bilge pump warning lights at helm and navigation station

Instrument panels including 7” Volvo Penta engine display at helm

Hydraulic steering system with tilt helm steering wheel

Custom Aquila stainless steel steering wheel

Safety

Tempered glass escape hatches located under cabin stairs with emergency escape hammer

Automatic fire suppression heat activated system with alarm monitors at helm station

Emergency steering tiller in 316 stainless steel

Mooring kit (6 x fenders; 6 x mooring ropes)

Aquila 44 Specifications

Length overall w/ swim platform & protection platform 13.44 M / 44’ 11”

Beam overall 6.56 M / 21’ 6”

Height above waterline w/ hard top 5.70 M / 18’ 8”

Draft without sacrificial skegs 1.0 M / 3’ 3”

Draft with sacrificial skegs 1.16 M / 3’ 10”

Light displacement 15,900 KG / 35,053 LB

Fully loaded displacement 22,000 KG / 48,500 LB

Fuel tank 1,120 L / 295 GAL

Water tank 780 L / 206 GAL

Holding tank 240 L / 63 GAL

CE certification A:12, B:12, C:14, D:21

Sleeps (up to) 8

Max passengers 21

Cabins 3

Heads 3

Showers 4





Disclaimer

HMY Yacht Sales, Inc. is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Approved Boats.

Specifications Add to Favorites

Name: No Name
Current Price: --
Year: 2022
Engine Model: D4
Length: 44.91 ft
Gross Weight: --
Hull Material: --
State: E19
Draft: 3.84 ft
Fuel Capacity: 1097.77 Liters
Fuel Type: diesel
Engine Manufacturer: Volvo Penta
Beam: 21.49 ft
Max Speed: --
City: Southampton
Country: GB

Vessel Overview


Return to Yachts for Sale Get more information

Get Info

Watch Price

Two Oceans E-Newsletter Sign-Up
