130 Heesen Custom 1987 “LIONSHARE”

1. 35-year ABS special survey currently underway

2. Completely updated interior with modern aesthetics and bright colors

3. Trans-Atlantic capable; recent crossings completed

4. CAT C32 Acert engines new in 2012; full rebuild in 2020

5. 2x 65kw generators with top end service in 2021

6. Captain’s cabin on bridge deck and fantastic crew accommodations

7. Full navigation equipment upgrade on the bridge deck

8. Accommodations for 12 guests in 5 beautifully appointed staterooms

9. Semi-displacement hull allows for cruising speed of 12 knots and max speed of 20 knots.

HMY Yacht Sales, Inc. is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Northrop & Johnson Yachts-Ships LLC.

SPECIAL FEATURES

1. 35-year ABS special survey currently underway

2. Completely updated interior with modern aesthetics and bright colors

3. Trans-Atlantic capable; recent crossings completed

4. CAT C32 Acert engines new in 2012; full rebuild in 2020

5. 2x 65kw generators with top end service in 2021

6. Captain’s cabin on bridge deck and fantastic crew accommodations

7. Full navigation equipment upgrade on the bridge deck

8. Accommodations for 12 guests in 5 beautifully appointed staterooms

9. Semi-displacement hull allows for cruising speed of 12 knots and max speed of 20 knots.

CONSTRUCTION

Aluminum hull and superstructure.

Teak on all decks.

DIMENSIONS

General

Length Overall: 130 feet Length at Waterline: 101 feet 9 inches Beam: 25 feet Draft Minimum: 6 feet 11 inches Draft Maximum: 7 feet 7 inches Gross Tonnage: 236 gross

Capacities

Fuel Capacity: 11,597 US Gallons 43,900 liters   7 fuel tanks   Water Capacity: 2,000 US Gallons 7,570 liters   3 water tanks   Gray Water: 1,135 US Gallons 4,296 liters Lube Oil 211 US Gallons 801 liters

Speeds

  Speed Consumption/hr RPM Load

Maximum:

20 knots 200 Gallons/hr 2300 100% Cruising: 12 knots 74 Gallons/hr 1600 38% Economical: 10 knots 25 Gallons/hr 1150 20-25% ACCOMMODATIONS

LIONSHARE accommodates 12 guests in 5 staterooms.

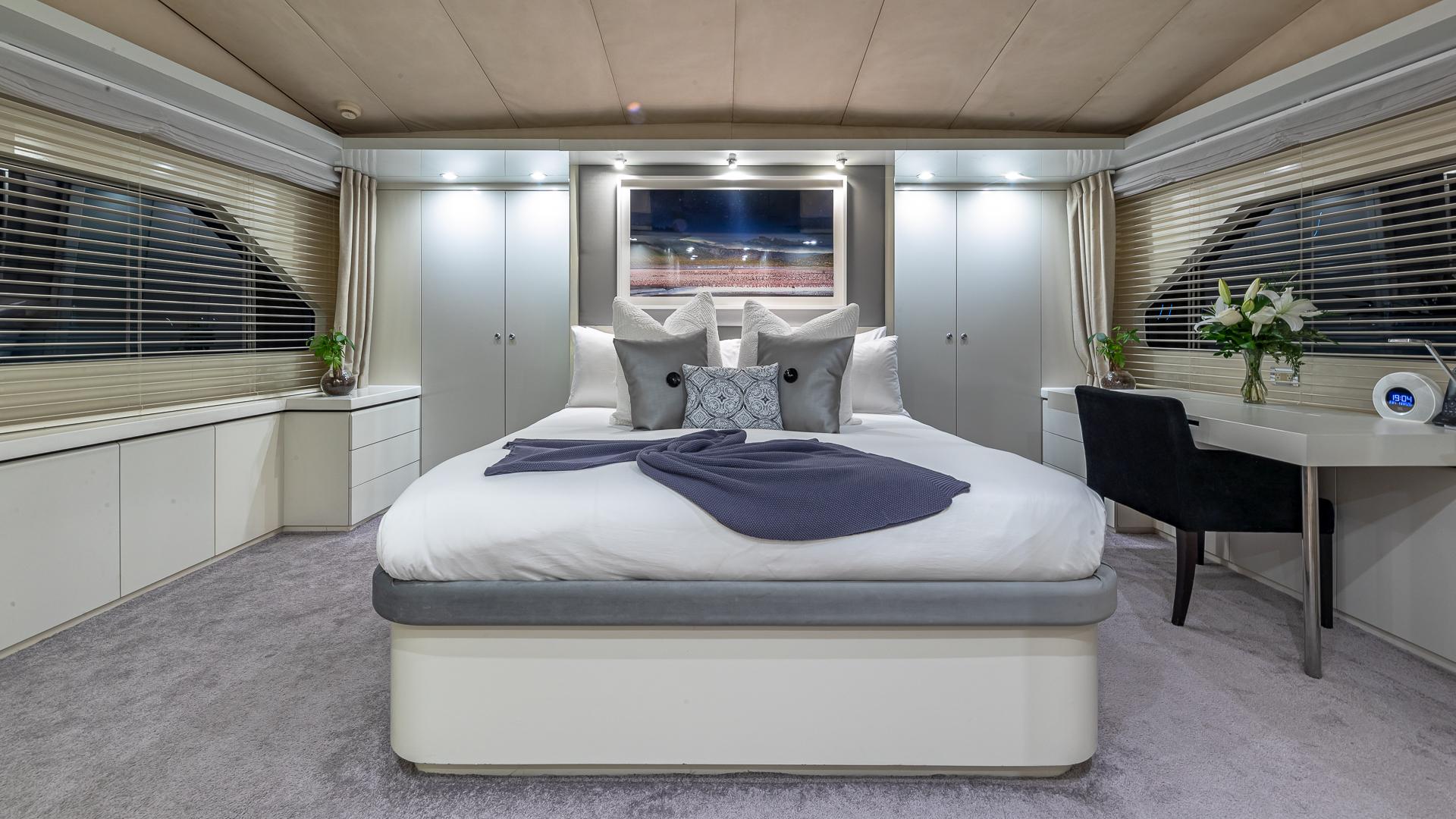

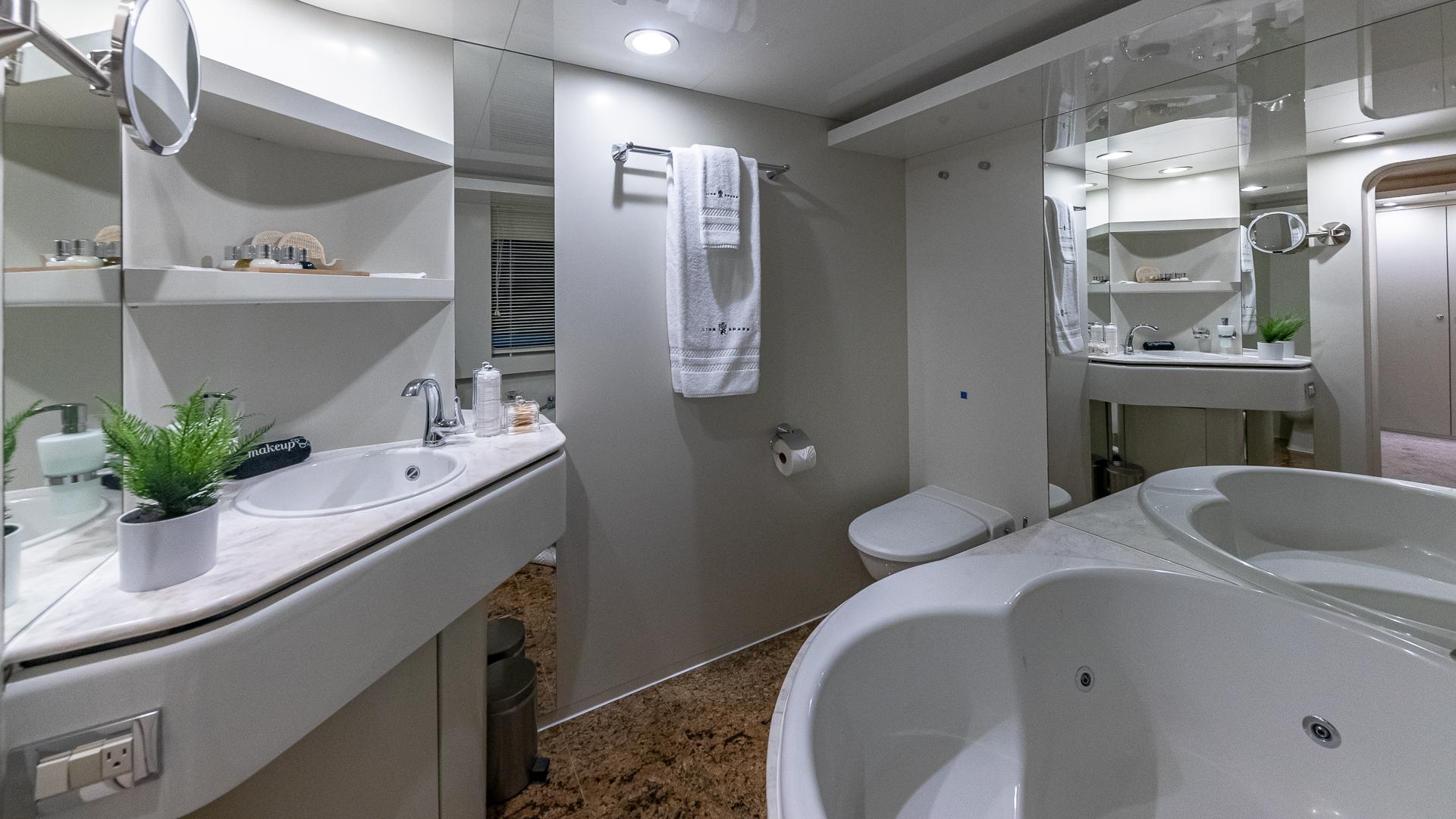

The full beam, main deck forward master suite features a King sized bed, vaulted ceilings, built-in desk, and his and hers ensuites, with a Jacuzzi tub for her and a large, glass shower for him.

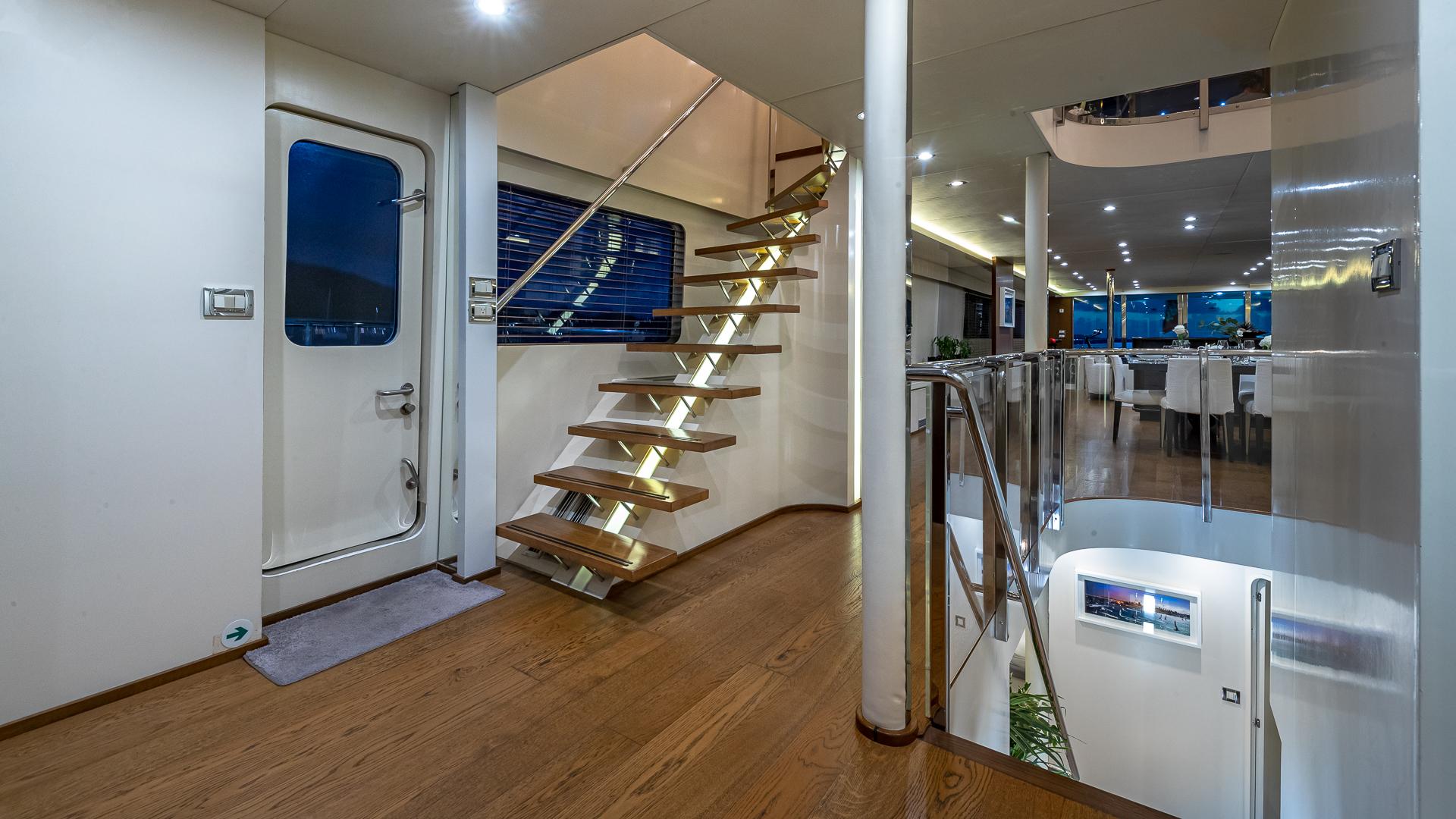

Located on the lower deck amidship, an illuminated modern staircase takes guests down to the lower foyer where there are three guest cabins, consisting of:

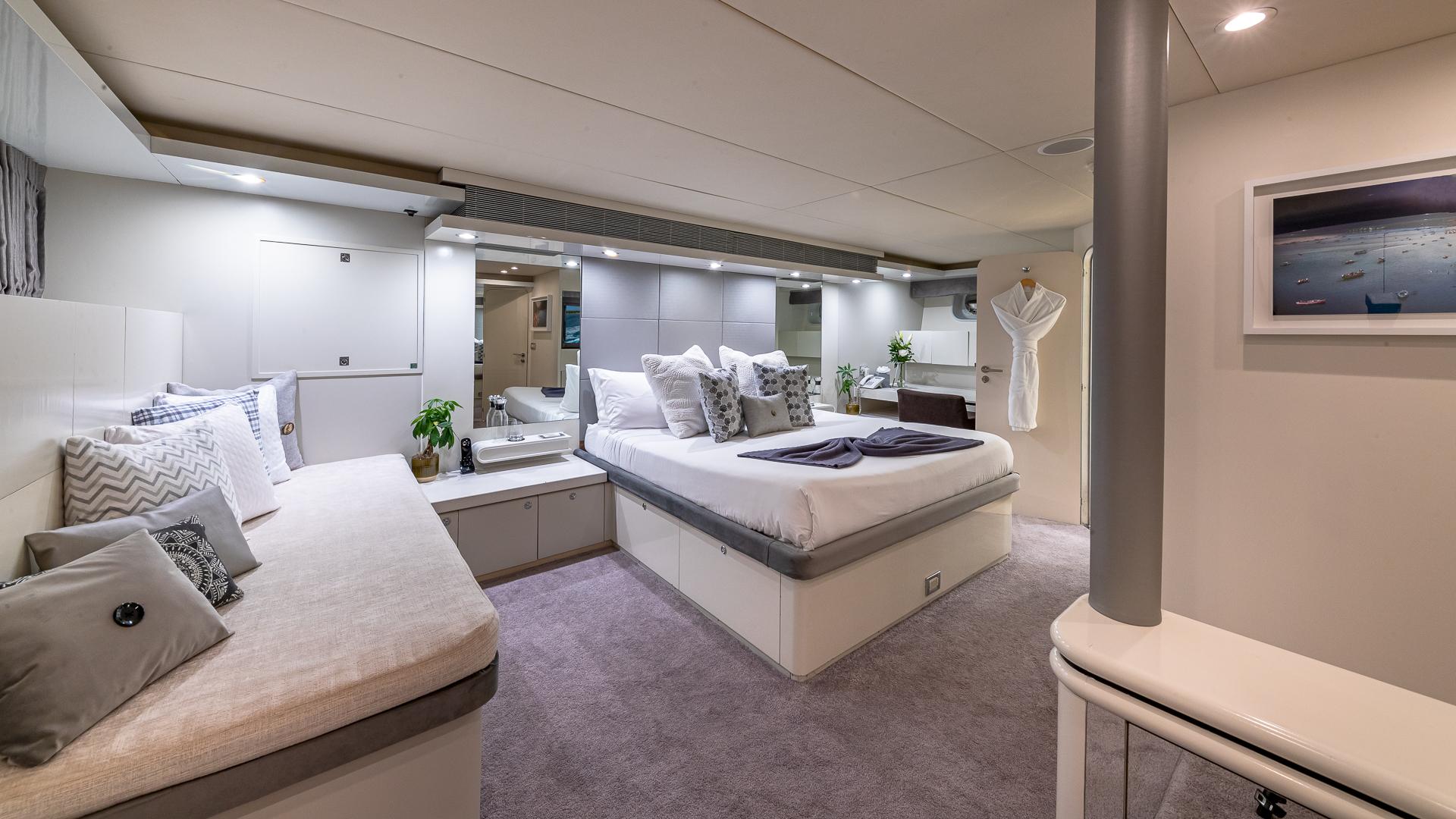

(1) x VIP full beam stateroom with King sized bed and ensuite bathroom featuring a bathtub and full length glass shower, large lounge which may sleep an additional guest or child if desired and a built-in desk space.

(1) x Twin Stateroom with Pullman berth and ensuite bathroom with full length glass shower.

(1) x Queen Stateroom with ensuite bathroom and full length glass shower.

The main salon aft staircase provides access to the 4th stateroom, located on the lower deck:

(1) x Double Bed stateroom with an additional twin bed and Pullman with ensuite bathroom and full length glass shower.

MACHINERY

Main Engines

Engine Type: (2) CAT C32 Acert/1800 hp (installed new in 2012) Hours (July 2022): Port: 1,707 since rebuild (Rebuilt at 10,847 hours)   Starboard:1,709 since rebuild (Rebuilt at 10,835)   Engines rebuilt in June 2020 by Pantropic Power. Gearboxes: ZF3055 Propellers: (2) x 4-blade props

Generators & Electricity

Generators: (2) x 65 kW Zenoro Generator Engine Blocks: (2) x John Deere, both new in 2017 Hours (as of July 2022): Port: 10,449   Starboard: 11,082   Generator top-end service in September 2021 by NPS Diesel. Generator Fuel Consumption: 30 US Gallons/day/per generator/at anchor Shore Power: (2) x ASEA Model AC30-1   In: 180-520 VAC   50-60 Hz   Out: 208/120 VAC   3-phase 60 Hz Batteries: Main engine starting: (2) Catapillar (replaced August 2020)   Generator starting: (2) 2 x 12V Odyssey (new August 2020)   Electronics: Bridge replaced December 2019

Air-Conditioning

Type: Frigomar; 21 tons, 3-chiller unit   210,000 BTU's/hr   Installed new in May 2022

Other Machinery

Watermakers: (2) x Custom watermakers; 120 US Gallons/hr; 2,800 US Gallons/day (combined) Stabilizers: Naiad, 12 square foot fins, underway only Bow Thruster: Hydromar, hydraulic Steering System: Sperry Marine, hydraulic Backup Emergency Steering: Cable system, located in the lazzarete Fuel Filtration: Westfalia    (2) x Racor filters on each engine   (1) x Racor filter on each generator Sewage System: Headhunter Type 2; ABS approved August 2017 Freshwater System: (2) x Headhunter Mach 5



COMMUNICATION, NAVIGATION, AND ENTERTAINMENT SYSTEMS

Communication Systems

Loudhailer: Furuno LH5000  Cellular: Pepwave Max Router VHF: (2) x 25W VHF

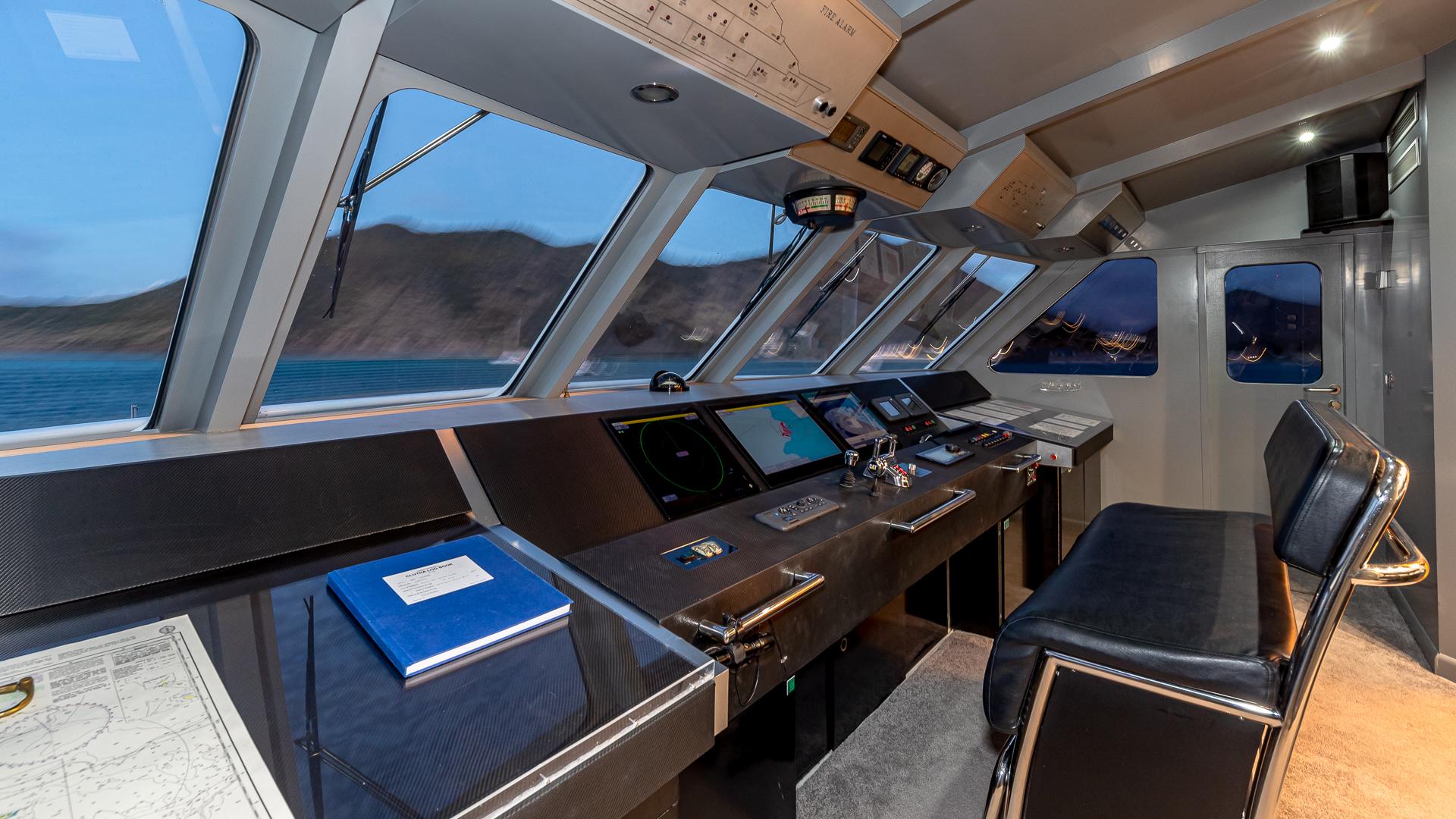

Navigation Systems

AIS: Class A AIS Transponder Depth Sounder: Furuno SS260 50/200 Hz   Aimar DST810 NMEA200 Smart Multisen Automatic Pilot: Raytheon Anschultz Pitostar NX GMDSS: Navtex NX700P with printer   Furuno Inmarsat-C FELCOM18 Ship's screens: 4 x touch screen displays Chartplotter: Navnet TZ Touch2 BlackBox Satcompass: SC70 Wind: Furuno F170 Rudder Indicator: Raytheon Ship's software: Timezero & TRANSAS Ship's Computer: Nobeltec with Timezero  BNWAS: Furuno BR-500 (bridge, crew mess, captain's cabin)

Entertainment Systems

(1) x 65" LG Smart TV (Main Salon) (1) x 55" LG Smart TV (Sky Lounge) (3) x 37" LG  (Master, Port Aft Cabin, Fwd VIP Cabin) (1) x 32" Samsung (Aft Guest Cabin) (1) x 23" LG (Starboard Guest Cabin) (1) x JVC (Crew Mess) Apple TV (Main Salon, Sky Lounge, Guest Cabins) Playstation 4   Plex Media Server GALLEY & LAUNDRY EQUIPMENT

Main Galley Equipment

Cooking Equipment: (1) x Miele 24" Combo-Steam Oven (new 2022)   (1) x Miele 24" Speed Oven- Vitroline (new 2022)   (2) x Garland 2-burner Induction Cooktop   (1) x Induction griddle  Refrigeration & Freezer: (3) x TRUE Refrigerator   (1) x TRUE Freezer (Lazz)   (1) x TRUE Fridge (Lazz) Wine Fridge: (1) x wine fridge (bridge deck aft) Beverage Fridge: (1) x fridge (bridge deck aft) Ice Maker: (1) x Scotsman, commercial (Lazz)

Crew Mess Galley

Frigidaire Side-by-Side Refrigerator with Freezer Drawer; built-in ice/water dispenser Lambar dishwasher Black & Decker microwave

Laundry Equipment

(2) x Miele wash machines (2) x Miele dryers 1 set of above washers and dryers new in 2021 TENDERS & TOYS

Main Galley Equipment

Cooking Equipment: (1) x Miele 24" Combo-Steam Oven (new 2022)   (1) x Miele 24" Speed Oven- Vitroline (new 2022)   (2) x Garland 2-burner Induction Cooktop   (1) x Induction griddle  Refrigeration & Freezer: (3) x TRUE Refrigerator   (1) x TRUE Freezer (Lazz)   (1) x TRUE Fridge (Lazz) Wine Fridge: (1) x wine fridge (bridge deck aft) Beverage Fridge: (1) x fridge (bridge deck aft) Ice Maker: (1) x Scotsman, commercial (Lazz)

Crew Mess Galley

Frigidaire Side-by-Side Refrigerator with Freezer Drawer; built-in ice/water dispenser Lambar dishwasher Black & Decker microwave

Laundry Equipment

(2) x Miele wash machines (2) x Miele dryers 1 set of above washers and dryers new in 2021 DECK EQUIPMENT



Anchor Windlass: (2) x Lofrans, horizontal gear box Anchors: (2) x Pool HCG Lieden; 350 pounds each Anchor Chains: (2) x 5/8" stud link galvanized chain; 500 feet each Aft Warping Capstans: (1) x Lofrans; (1) x Quick Bow Davit: UMT; 1200 pounds Passerelle: Besenzoni Deck shower: Yes, swim platform



SAFETY & FIRE EQUIPMENT

Safety Equipment

Ship's safe: Master Stateroom, VIP Stateroom, and Captain's Cabin Life Rafts: (2) x Duarry 16-capacity   (2) x KHA 8-capacity Life Rings: (6); (4) on bridge, (2) on main deck EPIRB: (1) x ACR

Fire-Fighting Equipment

Fire System: Fixed CO2 for engine room only Fire Hydrants: Bridge deck and 2 on main deck Fire pumps: FLOMAX 5 and FLOMAX8



2022 REFIT

Refit/Maintenance Details:

- New carpets throughout
- New wooden flooring
- New furniture
- Altering the color scheme and moving away from the browns
- Replacing deck headliners in the interior
- Extending the galley out for guests to be able to socialize with Chef Julian, as they wish, and to give Julian more space - for plating as well as extra fridge space
- Bridge equipment upgrades
- New Smart TV’s throughout the vessel
- New blinds
- New mirrors
- New A/C installation throughout vessel

EXCLUSIONS

The name LIONSHARE does not convey.
All the owner's and crew's personal items.
A detailed list of exclusions will be provided at time of sale, upon request.
