HMY Yachts

Hatteras Yachts 48 LRC

1976–81

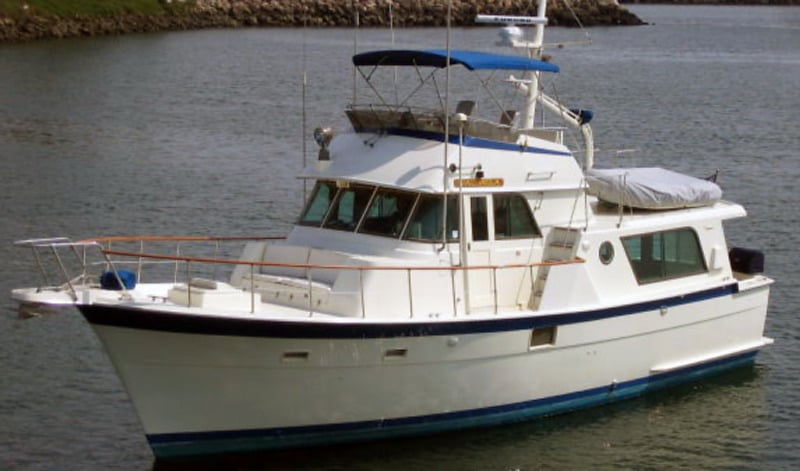

Hatteras Yachts 48 LRC
The Hatteras 48 LRC is a full displacement trawler whose raised pilothouse lines and rock-solid construction made her a favorite with serious cruising enthusiasts. One of Jack Hargrave’s most enduring designs, the 48 LRC is a proven offshore passage maker. Heavily built on a solid fiberglass hull, hard aft chines reduce roll and a full keel protects the props and rudders. Most 48s were delivered with two-stateroom teak-and-mahogany interiors featuring a full-beam salon with L-shaped settee and coffee table to port, U-shaped galley (with breakfast bar) forward, and spiral companionway to starboard. The full-beam master stateroom of the Hatteras 48 is amidships with built-in dresser and private en suite head with stall shower. Forward, the guest stateroom has V-berths, storage drawers, and private access to a head with shower. The pilothouse, four steps up from the salon, includes a U-shaped dinette, single watch berth, and port/starboard deck doors. Topside, the boat deck is designed to carry a dinghy and hoist. A cockpit transom door assists boarding. No lightweight, twin 112hp GM 4-53N diesels cruise the Hatteras 48 LRC at 8–9 knots. Over 40 were built.
Additional notes (BoatUS)
Overview: Long-range pilothouse trawler with displacement hull delivers signature Hatteras blend of handsome styling, bulletproof construction, luxury-class amenities.@Features: Two-stateroom teak interior boasts full-beam salon with galley forward, two full heads, full-width owner’s suite. Raised pilothouse has watch berth, U-shaped dinette, sliding deck doors. Three-stateroom layout with smaller master was optional. @Comments: Note weatherdeck dinghy davit.@Performance: Cruise at 8 knots with 112hp GM (or 120hp Lehman) diesels.

Floor Plans

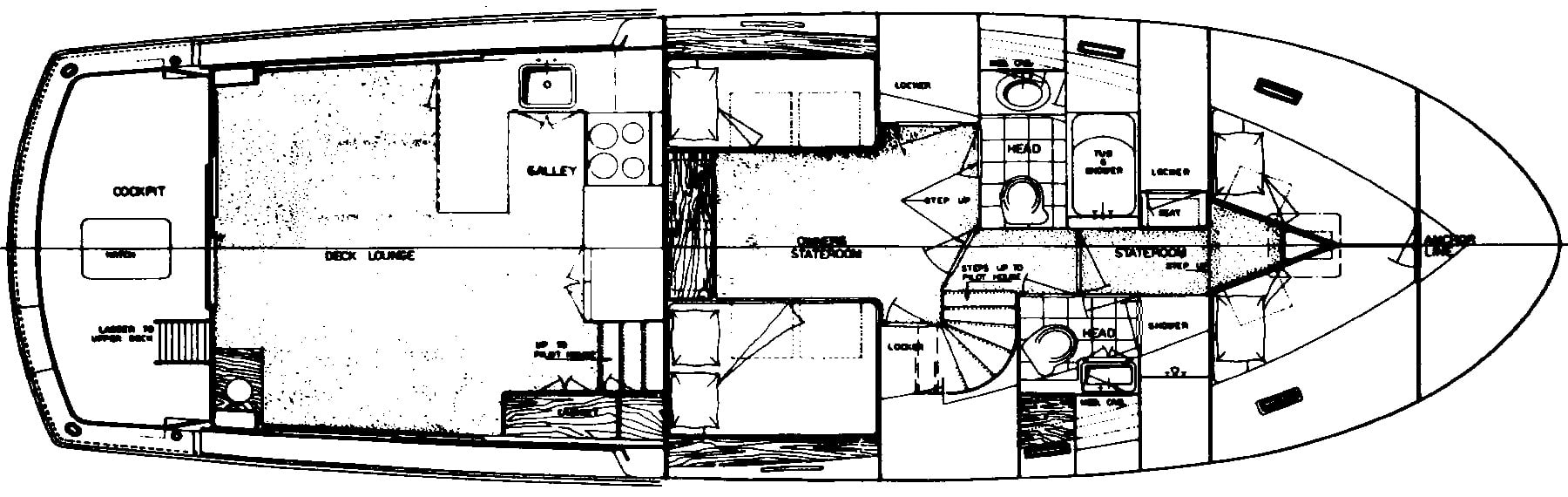

Hatteras Yachts 48 LRC floor plan
Hatteras Yachts 48 LRC floor plan

Courtesy of Powerboat Guide.
