The ECLIPSE 505 Shadow Sets a New Standard with Hulls #001 & #002

The ECLIPSE 505 Shadow Sets a New Standard with Hulls #001 & #002

The launch of the first two hulls of the ECLIPSE 505 Shadow marks a bold new chapter in express cruiser design, seamlessly blending cutting-edge engineering with uncompromising luxury. This striking model sets a new benchmark for performance and elegance on the water with elevated horsepower, advanced onboard technology, and refined interior craftsmanship featured throughout both Hull #001 and Hull #002.



Precision. Power. Presence



The ECLIPSE 505 Shadow is built on the revolutionary SVVT (Stepped Vee Ventilated Tunnel) hull—that delivers incredible efficiency, smooth handling, and head-turning speed. Paired with its bold styling and expressive lines, the 505 Shadow has a commanding presence whether at the dock or underway.





From stem to stern, every detail of the ECLIPSE 505 Shadow speaks to its uncompromising purpose: to elevate the express cruiser experience ECLIPSE owners can enjoy a significant boost in both technology and power with the highlighted options below:



  • Triple Mercury Verado V12 600 HP outboards

  • Starlink satellite connectivity

  • 360-degree surround view camera system

  • Rich interior fabrics and finishes

  • Joystick for precision docking



"This is definitely a performance boat- it's also a luxury yacht." - Yachting Magazine



A Layout That Redefines Space



In addition to its sleek and sporty silhouette, the ECLIPSE 505 Shadow delivers the kind of liveaboard comfort typically reserved for much larger yachts. Both Hull #001 and Hull #002 offer a true two-stateroom, two-head layout, complete with a flush deck design ideal for effortless entertaining. Whether it's a weekend getaway or extended island hopping, the 505 Shadow ensures guests experience the very best in spatial luxury and flow.



Industry YouTuber Aquaholic says of the ECLIPSE 505 Shadow, "It's a classic style but with a modern twist, so it's really clean, really crisp. It's a good-looking boat."





Construction Excellence



Every inch of the ECLIPSE 505 Shadow is a testament to modern yacht building excellence. Hulls and decks are constructed with a high-performance composite structure, utilizing Vinylester barrier coats, carbon fiber reinforcement, and vacuum-bagged high-density foam cores. The result is a strong, lightweight platform engineered for optimal performance and longevity.



Finishing touches include:

  • Painted exteriors with Alexseal high-gloss finishes

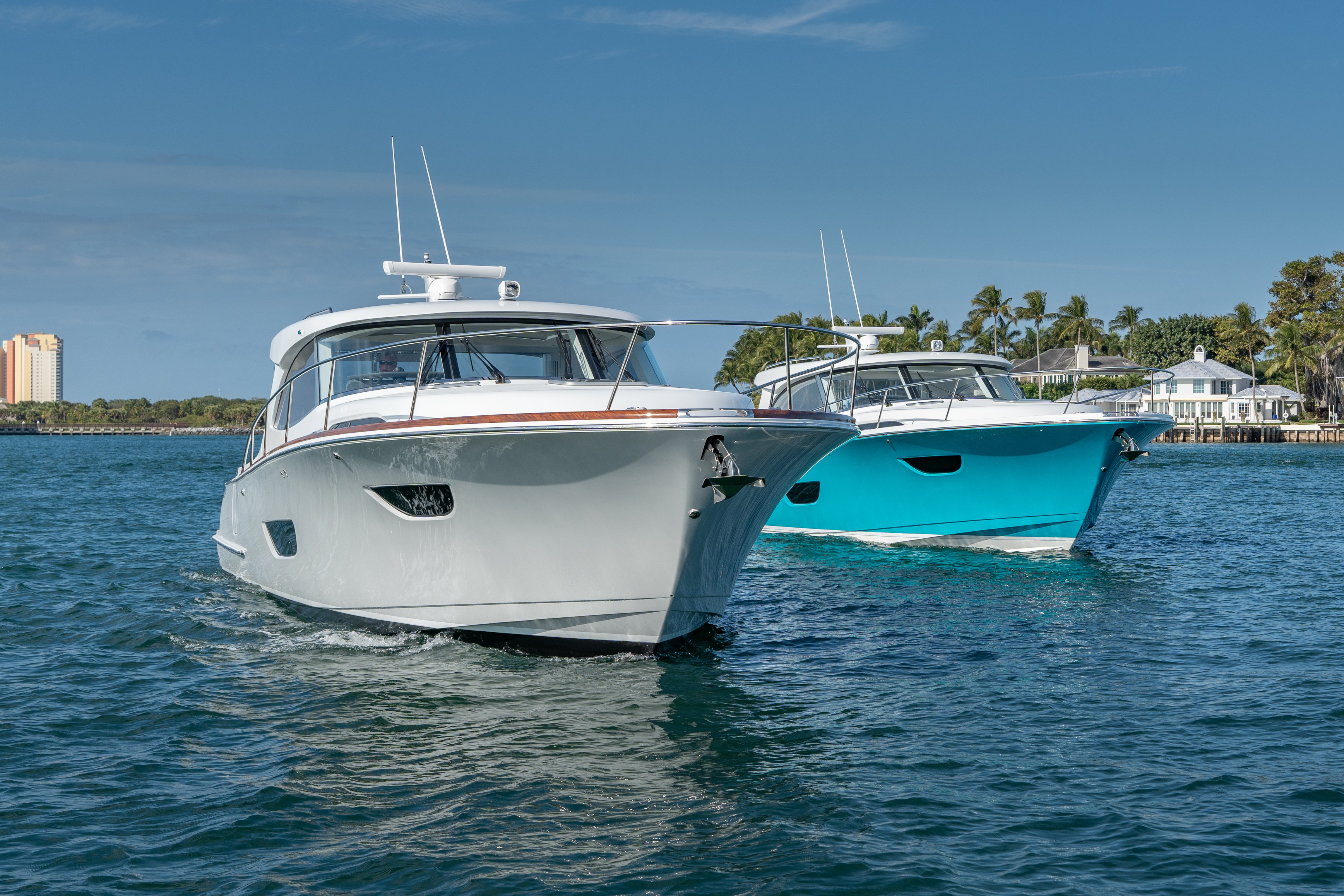

  • Hull #001 – Whisper Grey hull color

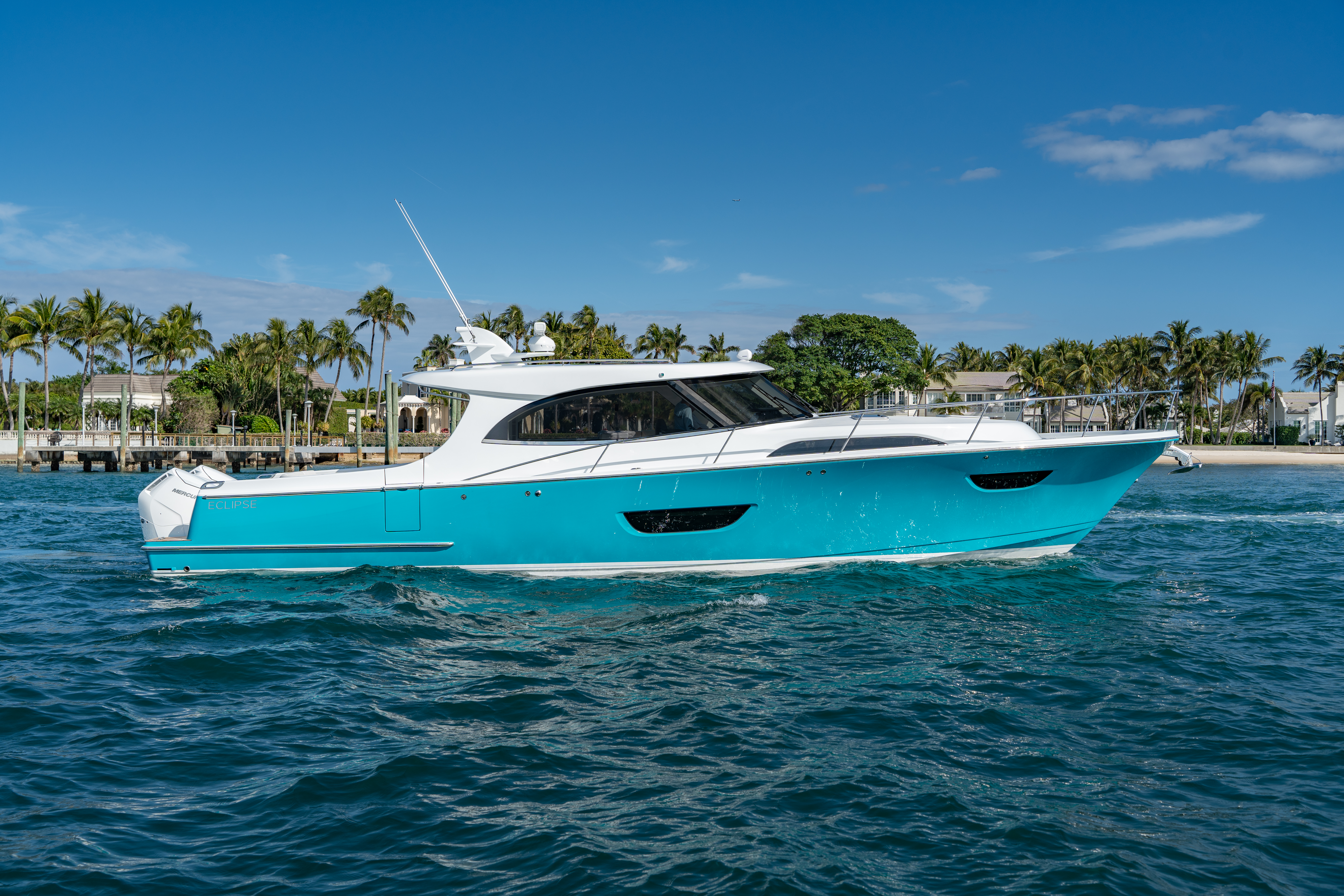

  • Hull #002 – Island Turquoise hull color

  • E-glass laminate for enhanced structural integrity

  • Cored panel interior joinery and flooring for reduced weight and added rigidity

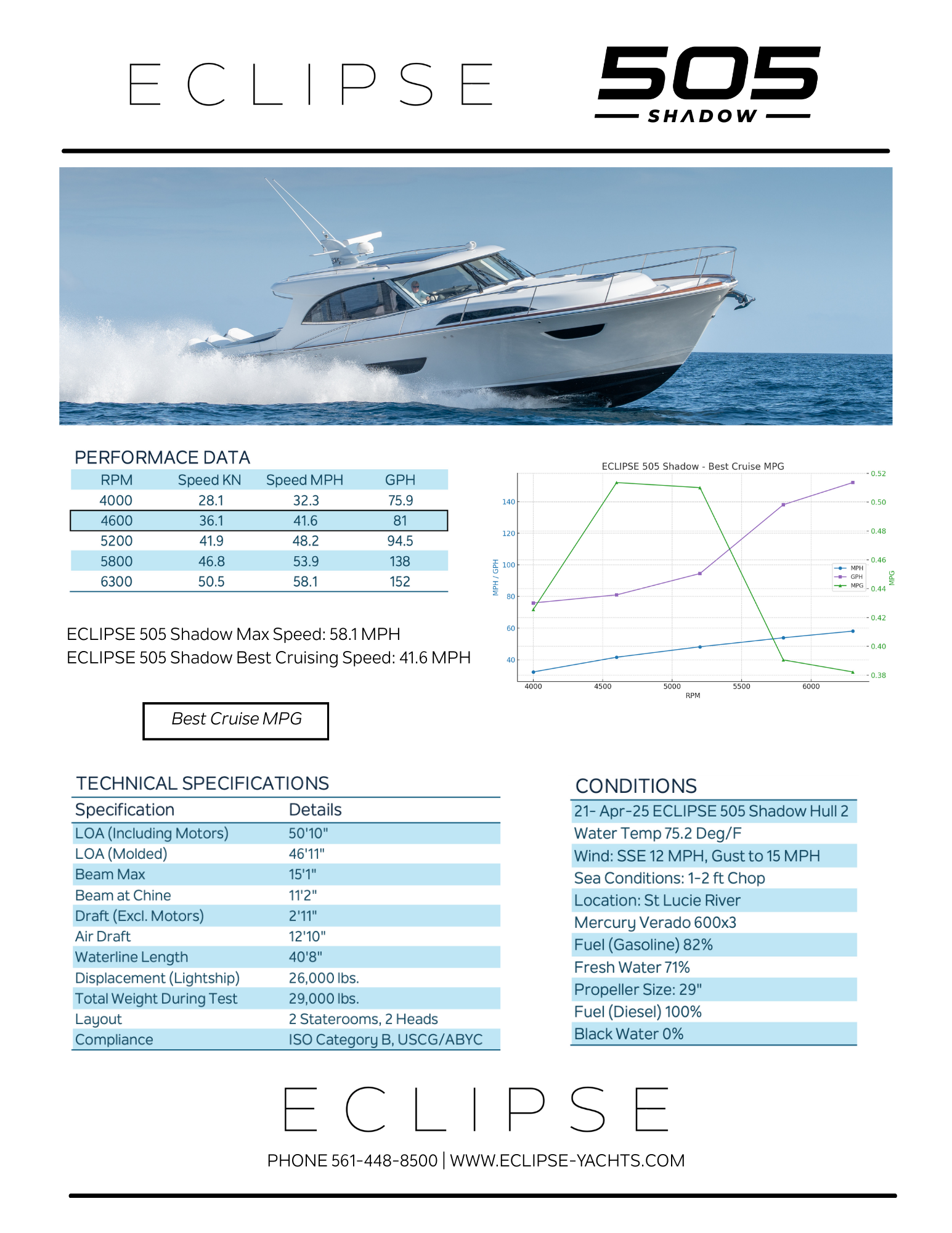

Technical Specifications:



LOA (Including Motors) 50'10"

LOA (Molded) 46'11"

Beam Max 15'1"

Beam at Chine 11'2"

Draft (Excl. Motors) 2'11"

Air Draft 12'10"

Waterline Length 40'8"

Displacement (Lightship): 26,000

Layout 2 Staterooms, 2 Heads

Compliance ISO Category B, USCG/ABYC

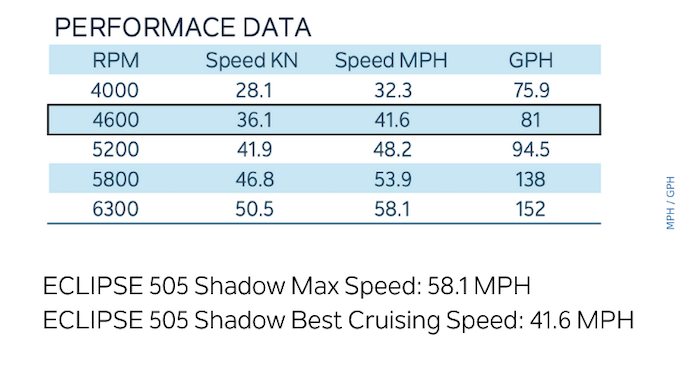

Performance Numbers



With a top speed of 58.1 MPH, the ECLIPSE 505 Shadow is a frequent flyer in the fast lane. But it’s not just about wide-open throttle. At 4600 RPM, she cruises comfortably at 41.6 MPH, while consuming just 81 gallons per hour—striking the perfect balance between performance and fuel efficiency. This is your go-to speed for covering serious water without burning through your fuel reserves.







A New Era Begins



With Hull #001 and Hull #002 already generating a lot of buzz in the yachting community, it is apparent that the ECLIPSE 505 Shadow is quickly asserting itself as the ultimate luxury express cruiser in its class. Owners of these early hulls will step into a league of their own, where power meets poise, and performance meets precision.



Southern Boating Magazine agrees, saying, "ECLIPSE 505 Shadow combines luxury with avant-garde interior appointments along with engineering and design elements that deliver not only powerful elegance, but also a minimalist approach without the need for fluff."





For those who demand nothing but the best in craftsmanship, design, and innovation, the ECLIPSE 505 Shadow is not just a yacht—it’s a statement.



The pinnacle of yachting has arrived. Twice. And there is much more to come from the ECLIPSE brand



Contact and HMY ECLIPSE Product Specialist today for more information: (561) 448-8500
