2018 GlassTech 96 Description

Reset is a 2018 96' Custom Expedition Yacht designed for long-range cruising and explorations.

Reset is being offered at a fraction of her cost. Reset offers a range of

3000 nautical miles at 10 knots with her reliable twin Caterpillar C-18 diesel engines. In addition to spacious living

areas, she also features a pilothouse with a full walkaround deck and outside wing control stations. Reset was

designed with commercial-grade electronics and many redundant systems. Included in these is a Furuno WASSP

multi-beam sonar with 3D mapping.


Reset Specifications Add to Favorites

Name: Reset
Current Price: $2,500,000
Year: 2018
Engine Model: C-18
Length: 96 ft
Gross Weight: --
Hull Material: Steel
State: FL
Draft: 7'
Fuel Capacity: 6374 Gallons
Fuel Type: Diesel
Engine Manufacturer: Caterpillar
Beam: 19' 6"
Max Speed: --
City: Stuart
Country: US

2018 GlassTech 96 Vessel Overview

Vessel Details

Construction

  • Mild steel formed plate on frame
  • Hull plating-1/4" steel butt welded bottom and topsides
  • Frames/floors-1/4" with 3" caps on 36" centers
  • Stringers- 1/4" with 3" caps major and 3/16" x 2" x 2" minor
  • Backbone-Open topped keel- 1/4" steel
  • Deck- 3/16 mild steel epoxy-coated and non-skid painted on sawn 1/4" beams
  • Cabin/Superstructure- 1/4" and 3/16" aluminum
  • Rudders- Stainless steel posts, bronze logs

Accommodations

Accommodations on "Reset" consist of 5 staterooms and 5 heads. A full-beam master cabin is located amidships with a king-sized bed, L-shaped seating and en-suite head.

  • 2 forward VIP guest cabins with en-suite heads.
  • 2 separate quarters for Captain and crew with en-suite heads.

Walkthrough

Boarding is via railing gates port or starboard or the transom step to the large aft deck with crane/davit and dinghy chocks. Aft is a large hot tub with aft facing seating at the stern.

Entering the salon to port is a large "L" shaped settee with a long table and entertainment center to starboard. Forward to port is the Captain's cabin with a large single berth and desk. The en-suite head has an electric toilet, sink, and shower stall. Access can be gained to starboard to the passageway or aft through the head to the salon. A passageway forward from the salon leads to a companionway up to the pilothouse, down to the forward berths, inboard to the Captain's cabin or outboard to the side deck.

The pilothouse has the helm on centerline with full controls and complete electronics. Two Captain's chairs are forward and there is a small settee aft. A door aft leads to the bridge deck and side doors to bridge wings with maneuvering stations both port and starboard. Down aft in the salon is access to the full width master cabin with King bed and L shaped settee with a coffee table to starboard.

The en-suite head aft to port has an electric toilet, sink, and shower stall. To starboard aft is the engine room access which first enters a pump room through a watertight door. A second door gains access to the engine room and an aft watertight door allows access to the battery compartment and steerage.

Forward below are two mirror-image staterooms each with large single berths and en-suite heads each having electric toilets, sinks and shower stalls. Forward is the crew quarters with single berths port and starboard. The crew head has an electric toilet, sink and shower wand.

Salon

  • Salon is located on the main deck level
  • Samsung TV
  • Entertainment System A/V
  • Dimmable LED Lights
  • LED rope lighting under cabinets
  • Freeman windows and doors
  • Dining area for twelve guests
  • Open access to galley

Galley

  • Galley is located on the main deck level
  • Viking Professional Series 4- burner range top with vent fan
  • Viking full-size oven
  • Bosch dishwasher
  • Viking trash compactor
  • Viking Professional Series gourmet icemaker
  • Sharp Carousel microwave oven
  • Sub Zero 36" stainless steel-faced refrigerator unit with 2 freezer drawers
  • Sub Zero 28" stainless steel-faced refrigerator unit with 2 freezer drawers

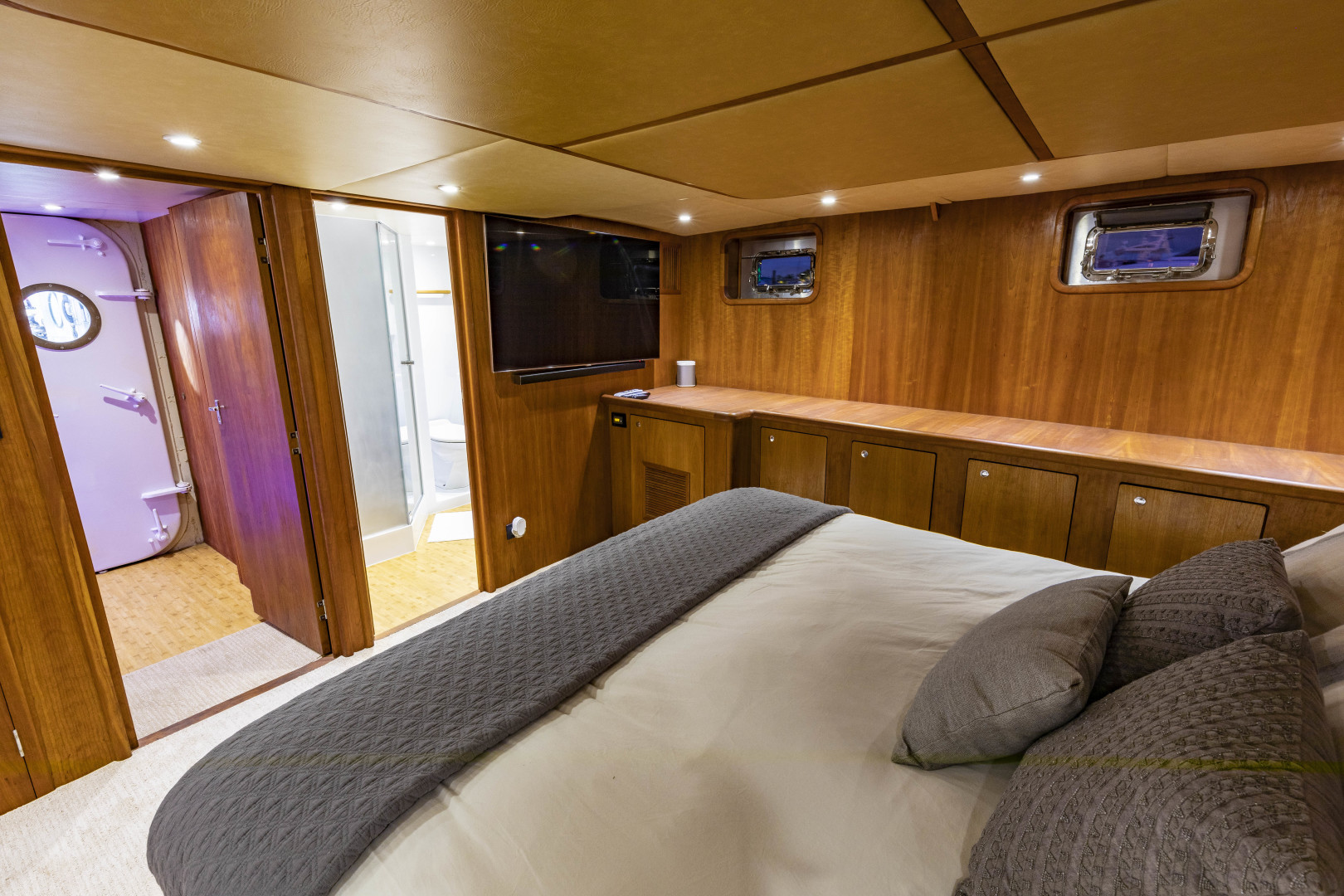

Master Stateroom and Head

  • Located amidships, below salon
  • Very spacious with walkaround California King bed
  • L shaped settee to starboard with table
  • En-suite head with sink and large shower stall
  • Maetron DSM 250 ships monitoring station
  • Entertainment A/V

Guest Stateroom and Head

  • Two single berth guest staterooms forward and below
  • Each stateroom has an en-suite head with sink and stall shower
  • Maetron DSM 250 ships monitoring system

Crew Quarters and Head

  • Crew quarters are forward of the two guest staterooms
  • Each has en-suite head and shower
  • Entertainment A/V
  • Maetron DSM 250 ships monitoring system

Captain's Cabin

  • Captain's cabin is located on the main deck just aft of the pilothouse
  • Maetron DSM 250 ships monitoring system
  • Captain's silent alarm
  • Entertainment A/V

Companionway

  • Bosch Axxis clothes washer
  • Bosch Axxis clothes dryer

Engines

  • (2) Caterpillar C-18 6 cylinder, turbocharged/aftercooled engines 535 HP
  • Port engine 586 hours
  • Stbd engine 596 hours

Transmissions

  • ZF Hydraulic marine reverse reduction gear with integral "V" drives
  • Model # ZF550V; Ratio 2.960:1. Ser # 20160240 (Port) #20160341 (Stbd)
  • 3" stainless steel shafts
  • Tides marine Strong Seal dripless shaft seals
  • Propellers

Generators

Generator #1

  • Cummins/Onan 4 cyl 32 Kw diesel/AC generator in sound shield (7108 hours)
  • Model # 32MDKBU-6782B; Serial # L12043316-
  • Located Portside forward in engine room
  • Freshwater cooled, wet exhaust

Generator #2

  • Cummins/Onan 4 cyl 32 Kw diesel/AC generator in sound shield (2890 hours)
  • Model # 32MDKBU-6782B; Serial # K12025177-
  • Located Stbdside forward in engine room
  • Freshwater cooled, wet exhaust

Tankage

Fuel Tanks

  • 6374 gallons total in 4 integral steel and 2 integral day tanks
  • Port forward- 695 gallons
  • Stbd Forward- 695 gallons
  • Port Midship- 1322 gallons
  • Stbd Midship-1322 gallons
  • Port Day-1260 gallons
  • Stbd Day- 1060 gallons

Water Tanks

  • Potable water- 1451 gallons in 3 integral steel tanks
  • Forward- 535 gallons
  • Port Aft- 458 gallons
  • Stbd Aft- 458 gallons
  • UVMAX freshwater UV Filter
  • (2) Fresh water heaters

Waste Tanks

  • Headhunter tidal Wave MSD waste treatment system
  • Waste holding tank- 288 gallons in 4 integral steel tanks
  • Forward Gray water tank- 48 gallons
  • Aft gray water- 52 gallons
  • Forward Black water- 48 gallons
  • Aft black water- 140 gallons

Lube Oil Tanks

  • Lube Oil clean-94 gallons in 1 integral steel tank
  • Lube Oil clean-118 gallons in 1 integral steel tank

Pumps

Bilge Pumps

  • (6) Rule/2000 24vDC automatic bilge pumps


Fresh Water Pumps

  • (2) Headhunter/Mach 5 automatic freshwater demand system


Fire Pumps

  • King/L 1409T 240vAC main emergency fire pump
  • King/L 1409T 240vAC main emergency bilge pump (Fire pump backup)

Fuel Pump

  • (2) Fuel transfer pump with meter
  • Alfa Laval fuel centrifuge MAB 1048-24

Oil Pump

  • (2) Oil change with quick fittings


Sump Pump

  • (2) 24vDC sump pumps


Waste Pump

  • (4) 240vAC waster transfer pumps- 2 black & 2 Gray, 2 fwd & 2 aft


Crane Pump

  • Quick Lift/2500 crane hydraulic pump


Hot Tub

  • Jacuzzi Brand self contained unit


HVAC

  • (2) Dometic Cruisair/26011357 72,000 BTU air conditioning chilled water units
  • (9) Dometic Cruisair/921025821 air handlers
  • (1) Dometic Cruisair/921049845 18,000 BTU air handlers
  • (2) Century/A472 raw water air conditioning
  • (2) Dometic Cruisair/225500271 chilled water circulating air conditioning

Watermaker

  • (2) Bluewater Explorer 1200 GPD reverse osmosis de-salinators
  • Flexflo/A -1614-3N MRC brining pump

Electrical

  • AC ship/shore power system 50v/100amp
  • (4) Delta T engine room ventilation blowers with graphic controller
  • (2) Telecaniuque/Alvitar 31 engine room blower frequency converters
  • 100 watt shore power converter/ASEA/AC25-1
  • Charles Marine Isoboost 50- 50 watt shore power converter
  • Mastervolt -24-100-3- 100 amp multi-bank AC - 24vDC battery charger
  • Mastervolt -24-40-3- 40 amp multi-bank AC - 24vDC battery charger
  • Digital volt and ammeters
  • NHP/VT2000A air compressor

DC Systems-24 and 12 volt

  • Engine- (4) Lifeline group 8-D AGM 12v batteries in 1 24 volt bank
  • House- (8) Lifeline group 8-D AGM 12v batteries in 1 24 volt bank
  • Electronics- (1) Lifeline group 8-D AGM 12v batteries in 1 12 volt bank
  • Pilothouse-(2) Lifeline group 8-D AGM 12v batteries in 1 24 volt bank
  • Thruster/windlass- (4) Lifeline group 8-D AGM 12v batteries in 1 24 volt bank
  • Battery Isolation switches
  • Fused switch panel
  • Digital volt and ammeters
  • Navigation lights, cabin lights and deck lights-24vDC
  • Underwater Lights 12V 10 U/W Sea Blaze 10 (Blue & White)
  • Remote control spotlights 24vDC
  • (3) Windshield wipers 24vDC

Bowthruster

  • SidePower SP-285 12" bowthruster


Electronics

  • Maretron multi-function ship's monitor
  • Caterpillar 307-7542 graphic engine displays
  • (3) ZF Mathers digital engine controls with synchronizer and (2) remotes
  • FLIR night vision camera with remote
  • ASUS monitor
  • DSM 250 monitor
  • Tyco/Minerva T2000 fire detection system
  • Simrad Autopilot AP70 with S-1570 rudder angle
  • Intercom with 8 stations
  • Kallenberg M-511c-d whistle control foghorn
  • Wave EC-HP WIFI generator
  • (3) Simrad FU80 steering joggers
  • Simrad RGC 50 gyro compass
  • Tracphone KVH TT 3672A satellite phone with antenna
  • Furuno NAVTEX HX 700 receiver

GPS

  • (2) Furuno Navnet multi displays for radar, depth, GPS map


Radar

  • Furuno/Navnet 25 kw radar with Furuno RCU-015 tracball


VHF

  • (2) Icom HM 195B VHF transceivers
  • Icom M-402 VHF transceiver
  • Icom M-323G VHF transceiver (GPS)

Depth sounder

  • Furuno WASSP multi-beam sonar with 3D mapping
  • (3) Furuno RD-33 depth

Entertainment

  • Hideaway flatscreen TV, 4 flatscreen TV's
  • Direct TV receiver
  • Stereo

Safety Gear

  • (3) 5 lb. portable dry chemical fire extinguishers
  • (1) 25 lb portable foam fire extinguisher
  • (1) 90 cf CO-2 portable fire extinguisher
  • 180 cf CO-2 automatic fire suppression system
  • (6) Type 1 adult approved personal flotation devices
  • (4) Type 3 adult approved personal flotation devices
  • (3) Type 3 child approved personal flotation devices
  • (4) Approved inflatable type life vests with MOBI AIS indicators
  • (3) Throwable life rings
  • MOB Strobe
  • Perimeter safety railings and handrails
  • Air horn (OOC)
  • Variable engine compartment exhaust blowers
  • Sea Safe 1000 SART
  • (7) CO-2 detectors
  • Fire Detection system
  • High water alarm

Notable

  • Built-in swim platform with removable stainless steel railings
  • Stainless swim ladder and aluminum dive ladder with rails
  • Radar mast with spreaders
  • Quick lift 2500 aluminum crane / dinghy davit with AC/ hydraulic hoist
  • Dinghy chocks
  • Portable bridge deck table and awning


Mechanical Disclaimer

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.
