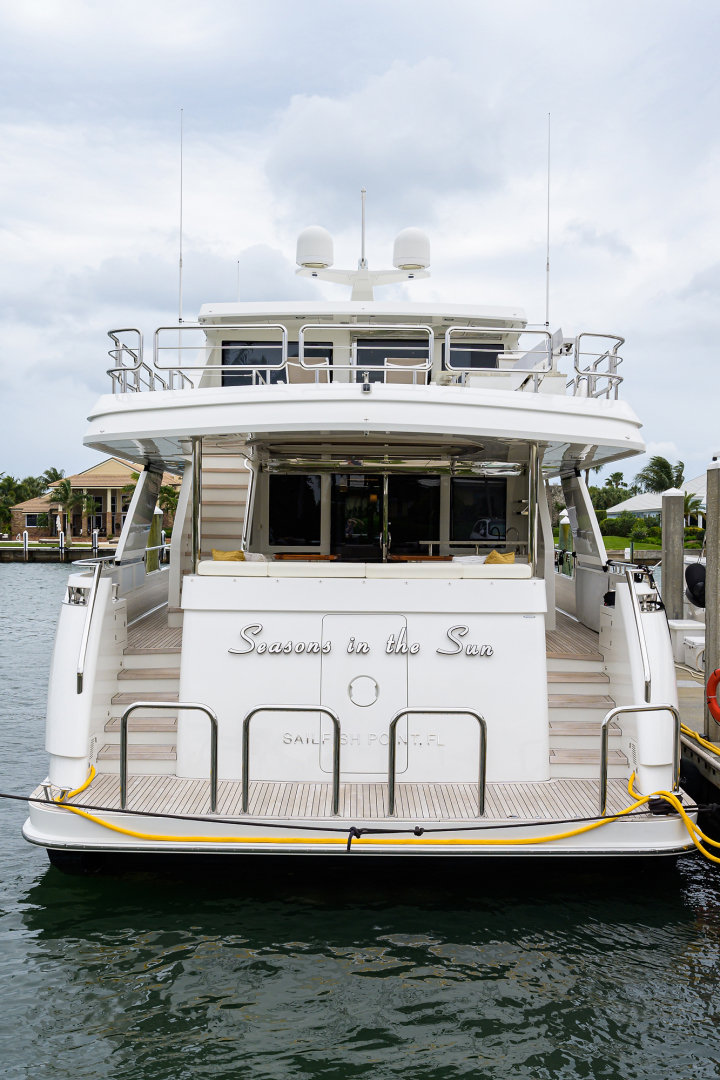

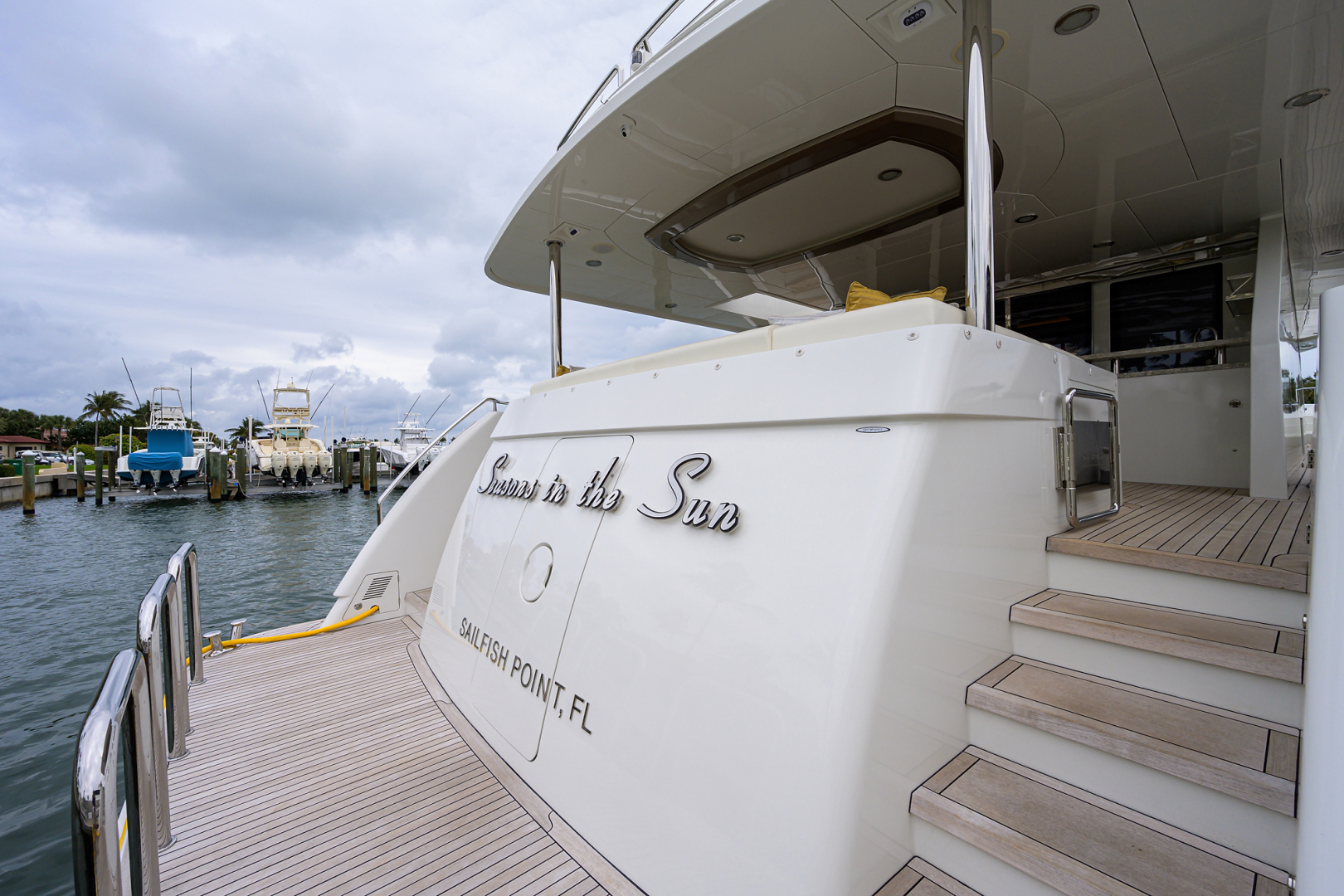

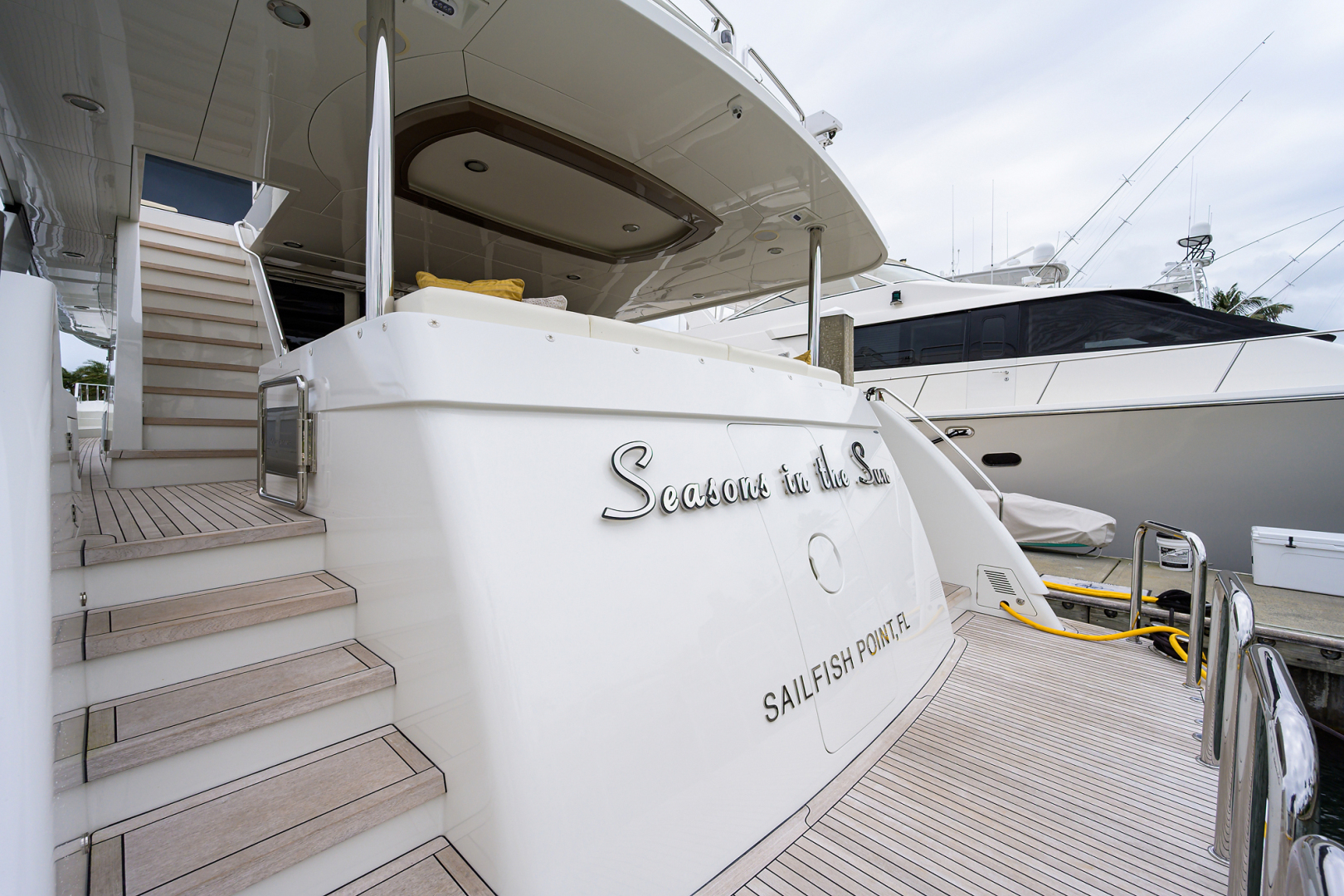

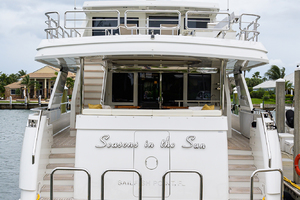

100 Ocean Alexander 2019 “Seasons in the Sun”

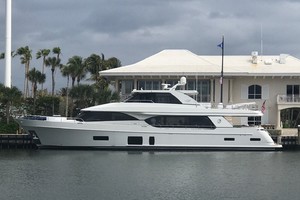

2019 Ocean Alexander 100' Motor Yacht Seasons in the Sun is for sale.

Vessel Highlights

· Shallow draft for the Bahamas (5'6"- 6'5") depending on load

· 5 Stateroom -Including On Deck Master Stateroom

· Largest Crew quarters in class- 3 cabins + crew lounge

· Zero speed Stabilizers

· Atlas World Power System

· Plug In Yacht Controller- Remote Control (works on bridge and aft deck)

· 2- Sea Recovery Water Makers (1,400 GPD)

· 2,500 lb Davit

· Bow & Stern Thrusters

· Garmin Electronics package

· KVH Sat TV with Crestron

Twin MTU 12V2000- 1940 HP engines (820 hours)

· 2- 55 KW Generators

· Fuel Polishing System

· Waste Treatment System (Ecomar)

· Inverter Package

· 8 LED Underwater Lights

· Massive amount of Refrigeration/ Freezer thru out the boat with ice making capacity.

· True Chefs galley

Vessel Details

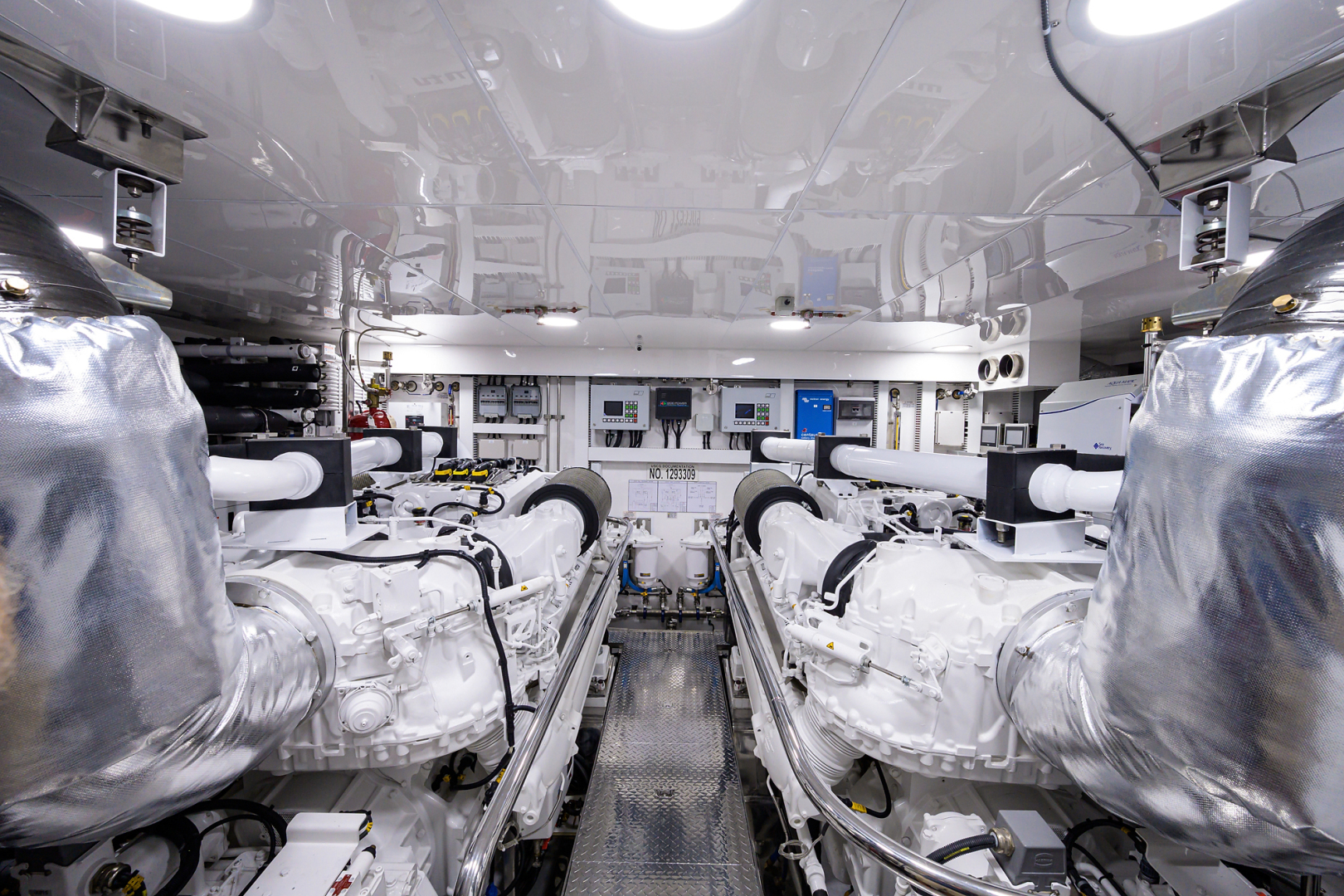

ENGINE ROOM:

MTU 12v2000 (1940 HP)

Stainess Steel Engine Beds

Lube Oil Change System with 45 gallon lube tank

Delta T fan system

2-55 KW Kohler Generators

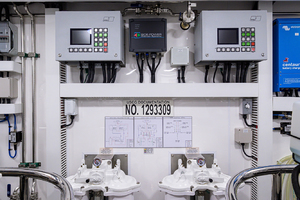

2- 1,400 GPD Water Makers

Waste Treatment System

Atlas

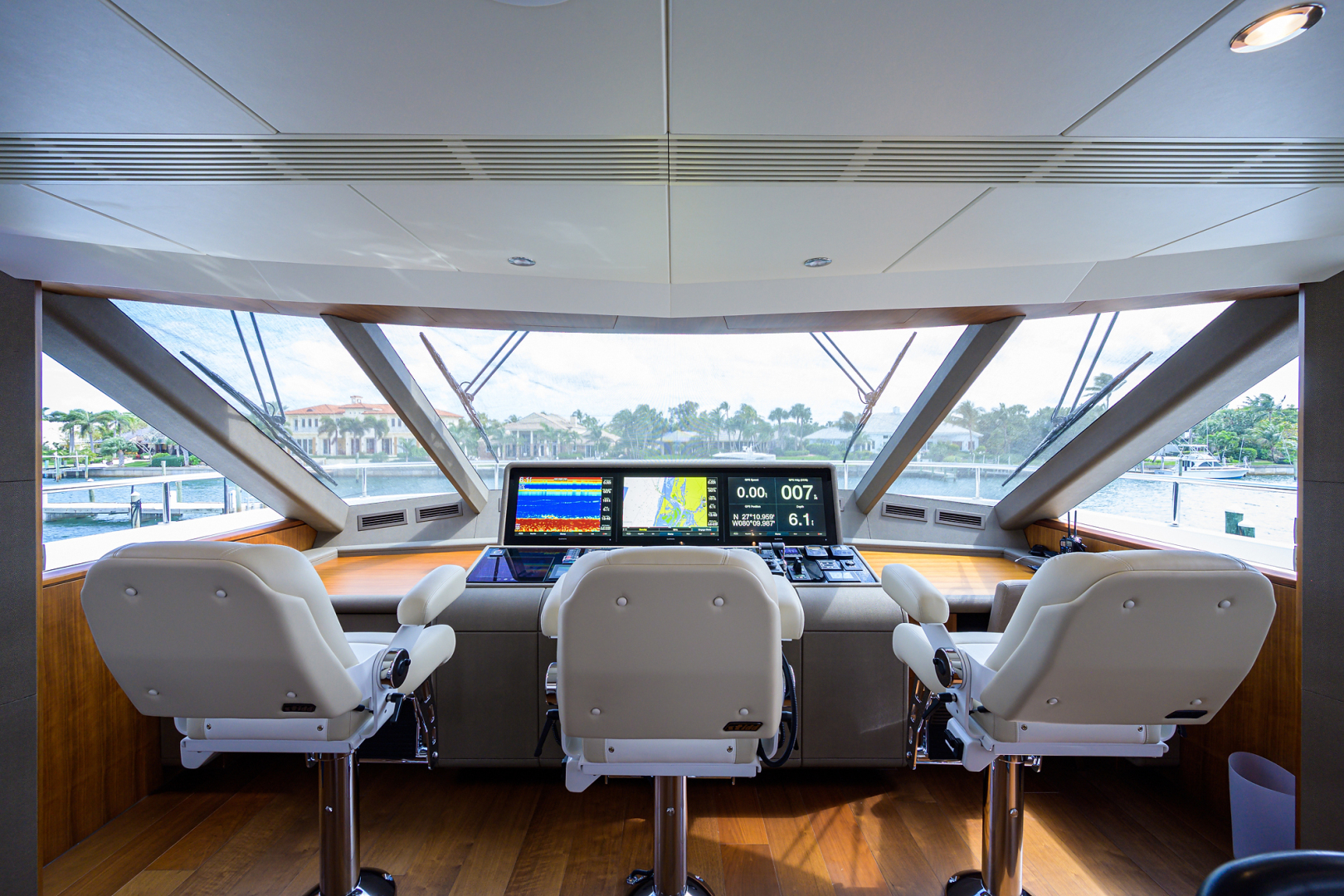

STEERING / CONTROL:

• Hydraulic steering system

• Steering control station with complete instrumentation

• S/S rudders w/integrated zinc plates

• Dripless seal for rudder post

• High performance computer designed and machined

NiBrAl propeller

• Interior s/s steering wheel w/ Faux leather wrapped

• Maintenance free "dripless" seals for engine shaft

packing glands

• Propeller shaft Aqua 22HS.

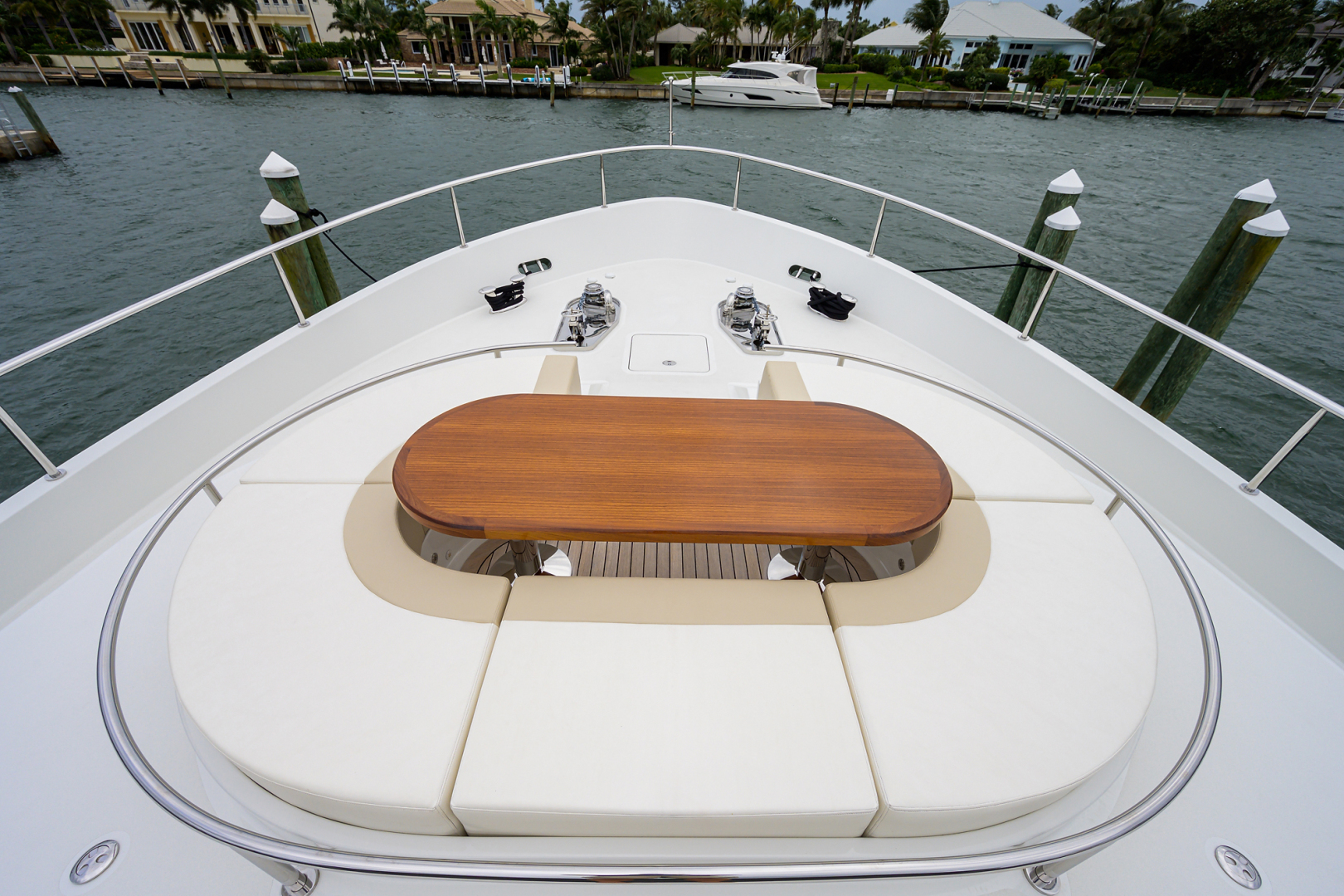

WINDLASS / MOORING:

• Dual hydraulic windlasses, VWCLP4000

• Dual stainless steel anchors 350 lbs. from hull sides w/

250ft anchor chain (1/2" HT) & chain stoppers.

• Two vertical electric rope winches for aft deck VC

2500(Standard versus competitors' optional)

• Reinforced anchor platform and anchoring system

• Chain counter

• Hands-free anchor chain wash system – allows for

cleaning of chain during anchor operation (Unique OA

feature)

THRUSTER / STABILIZERS:

• Sidepowerâ„¢ Vector Fin (DAME 2013 award winner) 15 ft2

hydraulic stabilizer find with zero speed stabilization

function

• Sidepower's patented "curved" fin design not only

provides lift underway it is also unique in the industry with

active "predictive" inertia control

• 55HP bow and 40HP stern thrusters.

OTHER:

• Stainless steel rails on side of engine and stainless steel

engine mounting plates (Unique Ocean Alexander

engineering affords industry leading torsional rigidity and

engine alignment assurance. Further reducing vibration

and high torque pressures)

• Color-coded piping system for easy identification

Kahlenbergâ„¢ heavy-duty horn

• All engine room and bilge spaces shall be primed and

top coated with polyurethane paint system.

• Heavy-duty commercial grade pantograph windshield

wipers & washers w/ intermittent function

• Detailed stringers in engine room & lazarette

• Ocean Alexander proprietary "dry bilge ventilation

system" with dedicated bilge exhaust to outside. This

provides constant airflow to keep the bilges dry and

mildew free. Any moisture from condensation is

evacuated outside the yacht to keep a clean and

healthy cruising environment

• Ocean Alexander design in oversized shafts, rudder and

other drive train systems typically one-class larger than

competition. Superior handling, longevity is ensured with

Ocean Alexander drive-train systems

FUEL SYSTEM:

Sight gauges for all tanks

• 4.5mm thickness 5052 Aluminum fuel tanks with sight

gauges and tested to International Standards 33CFR

510(a) w/ high and low fuel level alarm system

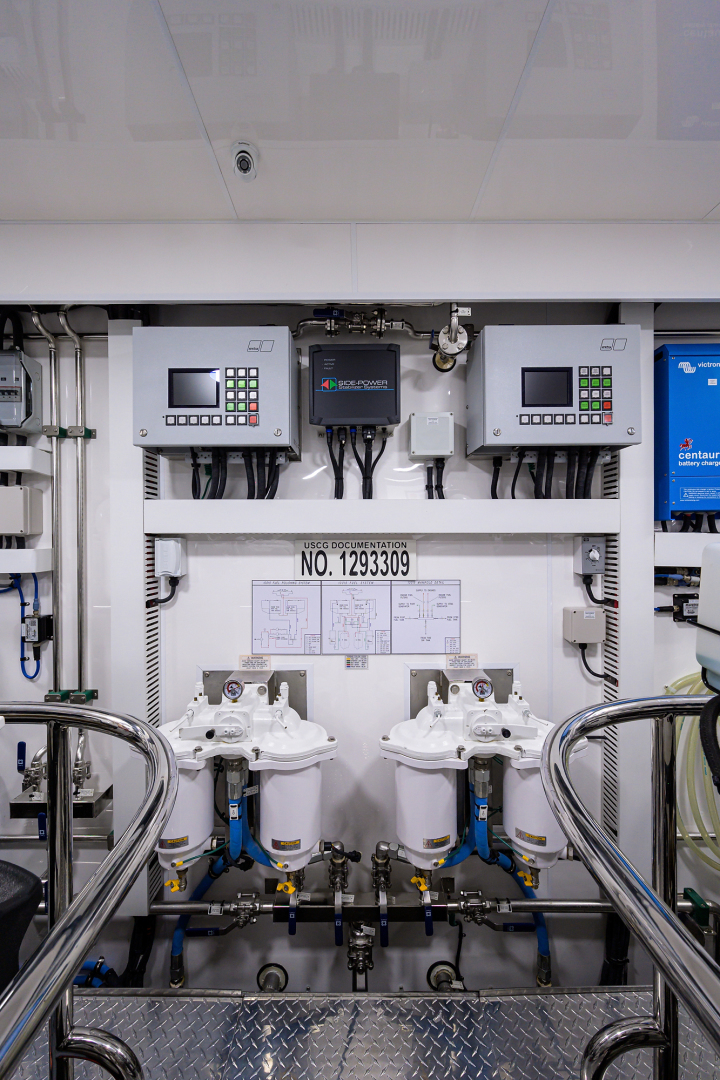

• Dual Racor® fuel/water separator with Y-valves for

generators

• Gulfcoastâ„¢ Fuel polishing system based on US Military

Abrahams-M1 tank design (standard versus competitors'

optional)

• Dual MTU® fuel filter w/ remote readout of filter

performance. (Unique OA standard, usually found on

150'+ vessels)

• Filler for fuel tanks on both sides with individual tank vents.

(Unlike others where fueling is only possible on 1 side. This

unique OA feature allows for concurrent and faster

fueling & negates need to move boat to complete

fueling)

• Fuel system with venting and "catchment system"

designed for burps or overflow accidents (Unique OA

feature. Often ignored by competitors which can lead to

high fines and insurance cancellation)

HOLDING TANK SYSTEM:

• Ecomarâ„¢ waste treatment system (600Gal/day) x 2

BILGE / DISCHARGE:

• Oversized drains to overboard

• Automatic bilge pump - The vessel shall be outfitted with

automatic bilge pump with manual and automatic

switches in each space as divided by weather-tight

bulkheads.

• High water bilge alarm at every Rule® bilge pump

station

• Dry bilge area arrangement in center engine room

• Lighted bilge with built-in (when necessary) S/S ladder

(Unique OA Feature)

OTHER:

• Compressed air in ER & aft deck

AC / DC SYSTEM:

AC outlets throughout

• All primary AC & DC electrical wiring is appropriately

labeled throughout the yacht

• GFI (110V) AC outlet in potential "wet" areas. In addition,

entire boat is dual protected via ELCI Octoplex breakers.

(OA is unique in the industry to provide dual protection

GFCI & ELCI)

• 24 Volt system

• Engine battery isolation switches

• AGM Batteries with 40°F to 140°F operating temp and

industry leading low self-discharge rates 1 to 3%

Octoplex NMEA 2000 Monitor Network electrical control

system

• Based on aerospace technology for remote activation,

control and status reporting of AC and DC breakers.

Monitors power sources (AC and DC) for voltage,

frequency and amperage abnormalities and provide

visual and audio alerts. Includes enhanced circuit

breaker functionality with no-load indication, dimming

and usage information with touch screen monitor that is

user reconfigurable. Brown-out configurable control

through auto load shedding is included where operator

designated equipment (e.g. navigation and other

essential systems) remains powered-on while

automatically switching other systems off. Octoplex

NMEA 2000 Vessel system monitor system. Provides main

access doors, tank levels, bilge level and battery

monitoring of current, voltage and temp. (Unique OA

standard feature, not an optional upcharge like

competitors)

• Heavy-duty batteries

• Battery paralleling system w/ control switch

• Service battery switch

• Bonding system throughout

• The vessel's bonding and grounding systems shall

include copper straps secured to the hull and running

the full length of the vessel parallel to centerline. Engines,

generators, metallic through hulls, strainers, and pump

bodies shall be connected to the bonding strap using 8

AWG wire minimum or equivalent

AIR CONDITIONING

Dometic® chilled water system air conditioning system,

rated for "extreme tropical climates" (with reverse cycle

for operation down to 40°F water temp)

• Refrigerant type is accepted worldwide under the

Montreal Protocols

• Dedicated engine room air conditioning

• Where possible A/C exits from custom made ceiling

panels hidden from view. Shortens A/C ducting thus

improving efficiency and speed of cooling by over 20%.

Also reduces db reading by over 7 db (Design cues from

135)

LIGHTING:

• 24V LED lights (Aerospace quality, specially tuned color

temperature for Ocean Alexander

• Convenience lights

• International navigation lights

NAVIGATION PACKAGE:

• Garmin 8600 series black box with 24" touch screen

(three screens skylounge station)

• Garmin GRID remote input device installed on helm

chair

• Garmin 25KW open array radar

• Garmin autopilot GHC20

• Garmin VHF and card reader

• Garmin blackbox sounder

• Garmin AIS with NMEA GPS

• Garmin marine camera (2 in engine room and 1 aft

deck)

• KU-KA-band triad technology HD7 with direct HDTV

• Ritchie compass 5"

• IPad with built-in Garmin app for navigational

control/viewing via iPad

• Navigational electronics standard versus optional with

competitors

N2KVIEW SAFETY & SECURITY MONITORING PKG:

• These security/safety automatic monitoring and alert

abilities include using Apple iPad or Android for wireless

access to operate, view, and alarm Octoplex data and

navigation system with a fully customizable screen

layout, and remote notification (cell phone) capability

• These monitoring abilities include: main engines and

generators, AC monitoring, DC house bank battery

monitoring, engine room weather-tight bulkhead door,

tank Levels, fire System, bilge level (high-water), exterior

door sensors . Unique OA standard feature, not an opt

upcharge like competitors

POWER CONVERTER PACKAGE:

• Atlas 50/60 Hz power converter. Allows for automatic

marina connection irrespective of 60 Hz (USA) or 50 Hz

(European) standards.

• 100AMP charger

OTHER:

• Vimarâ„¢ switches and outlets

• Panasonic Intercom system – includes Panasonic phone

system and digital panasonic phones for connection in

MSR, VIP,guest staterooms, crew lounge, salon, galley

and skylounge

• ACR searchlight with 1,000,000 peak candlepower and

spreader lights for swim step and FB deck

• Onboard intranet, driven by commercial-grade 4G SIM

card capable Wi-Fi router. Allows outside 4G Internet

card and/or internal intranet net connection via supplied

iPad to Systems monitoring, Garmin and other onboard

equipment apps. (Unique OA feature)

• Shore power receptacles in transom with CM-8 cable

master storage system. (OA is unique in making this a

standard vs. optional. Cleans & boosts questionable

shore power to better protect sensitive equipment

onboard)

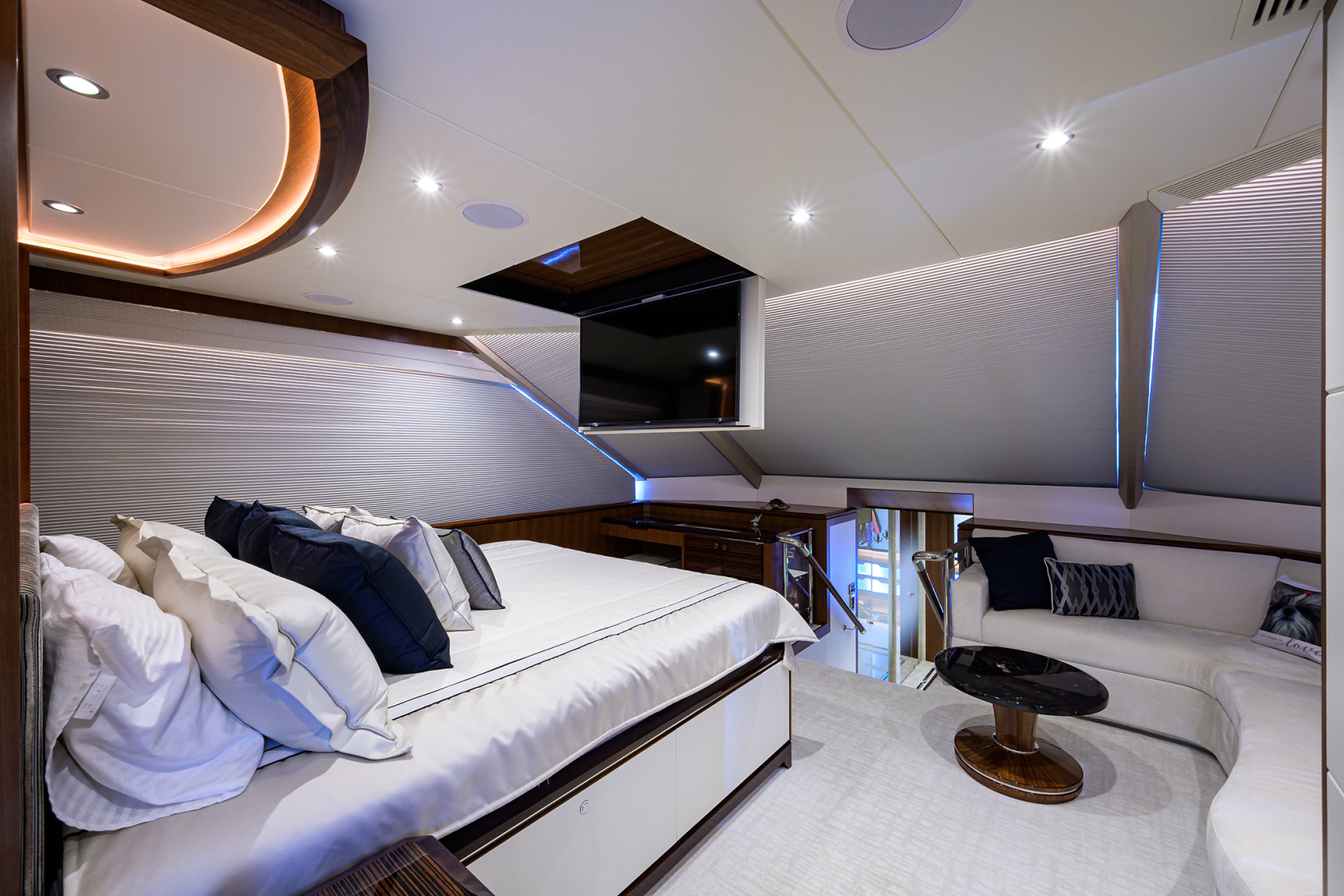

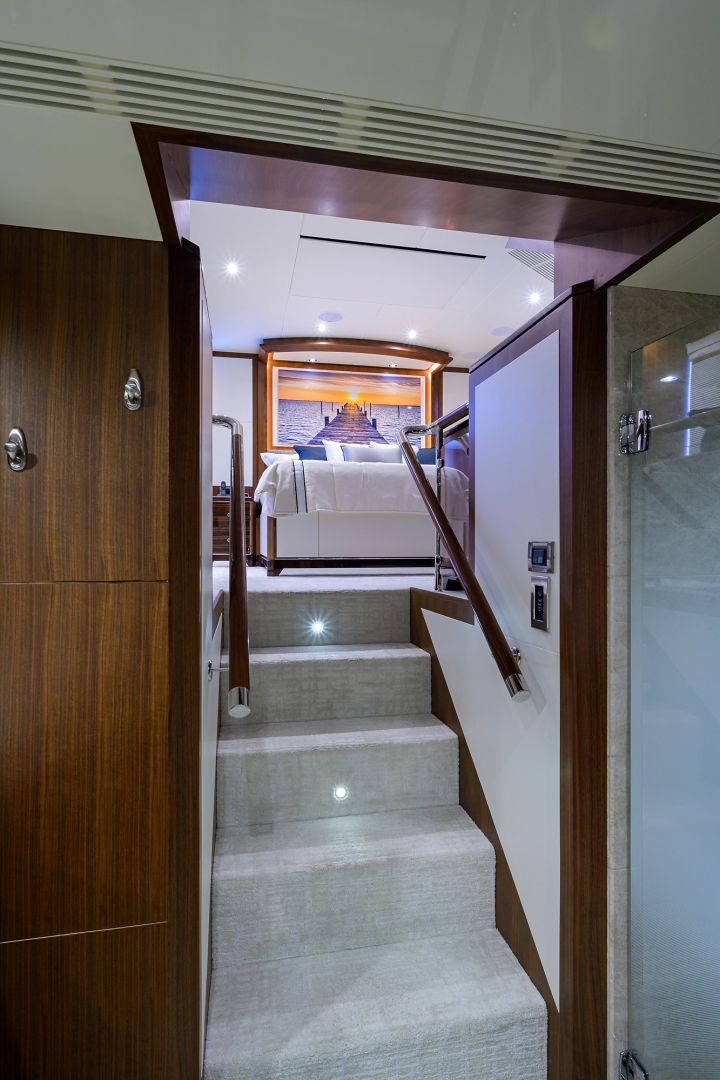

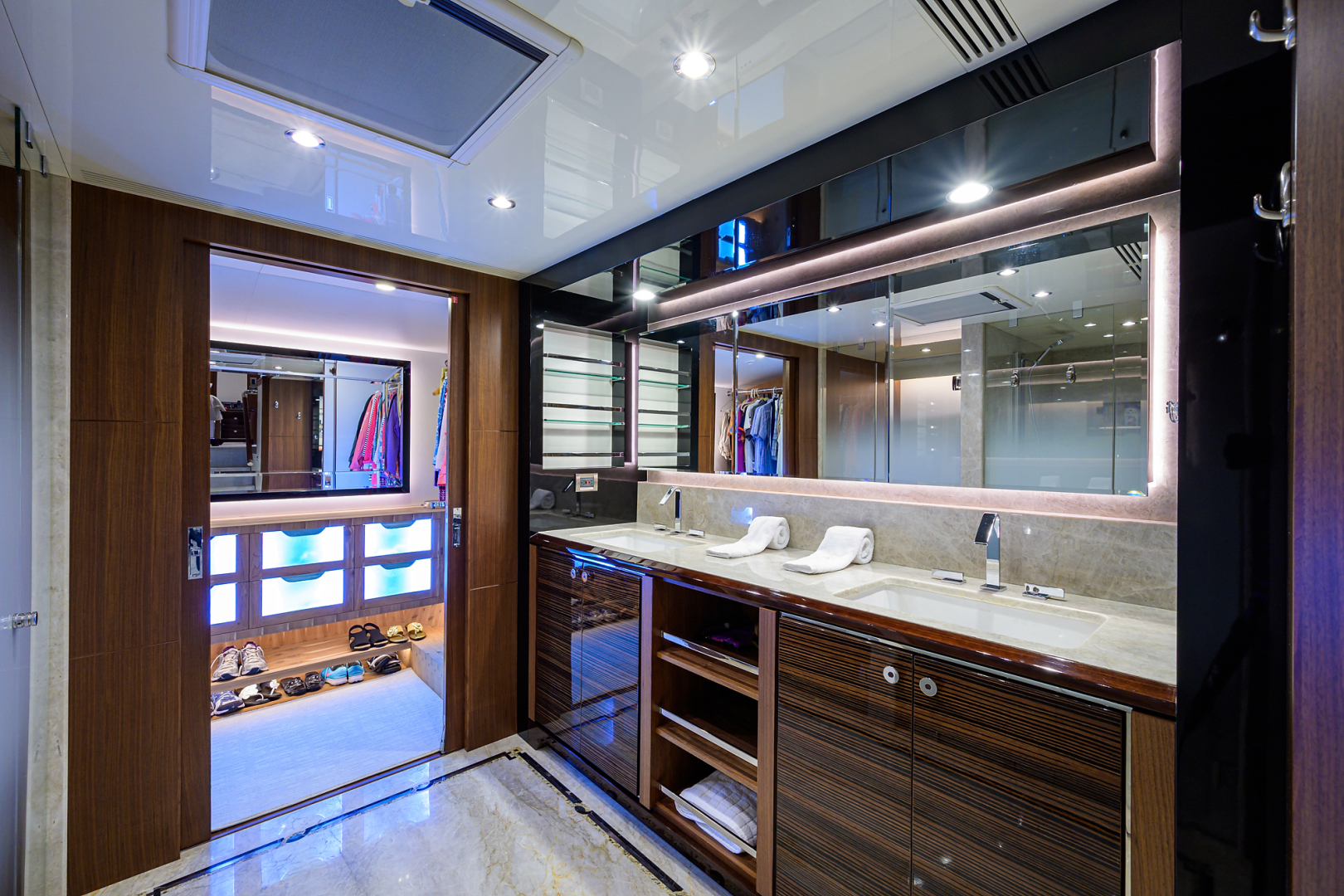

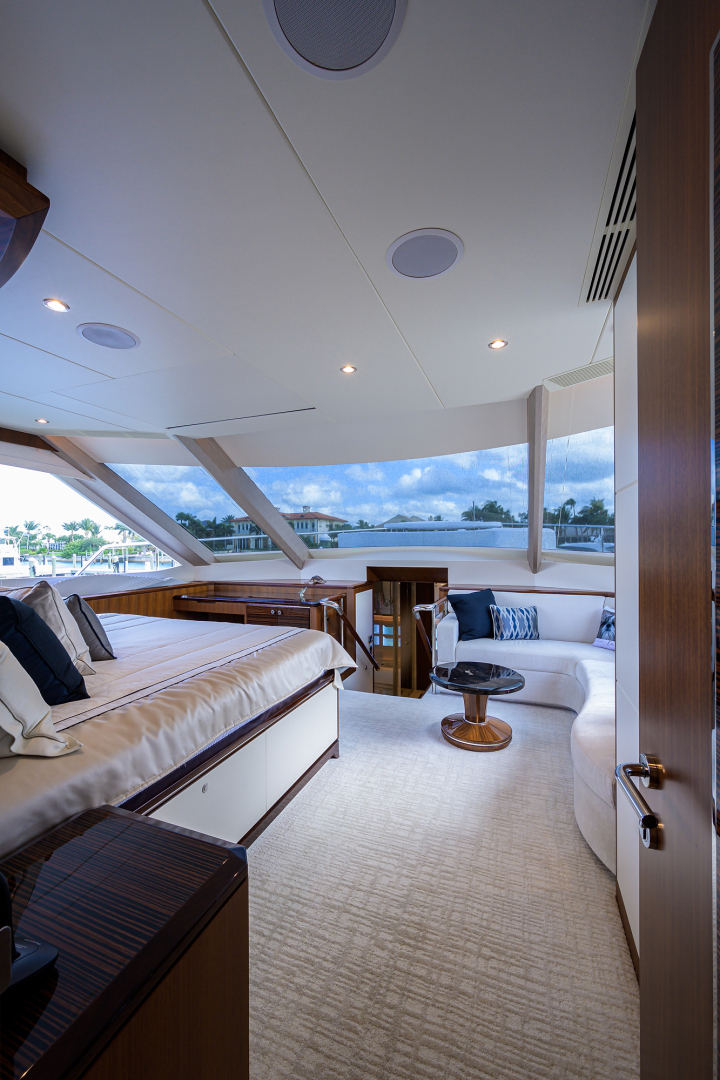

MAIN DECK MASTER STATEROOM:

• LED 50" flip down TV with A/V System

• King-sized berth (with independently coiled his & her

sections to ensure minimal transfer of movement)

• Two nightstands with wood countertop

• Hidden safe in hanging locker

• Walk-in closet on FWD w/ lighting

• Wide-opened curved window with custom engineered

solution incorporating aluminum beams allows greatest

visibility and incoming light

• Custom headboard with recessed indirect lighting

• Vanity on port, sofa with table on starboard

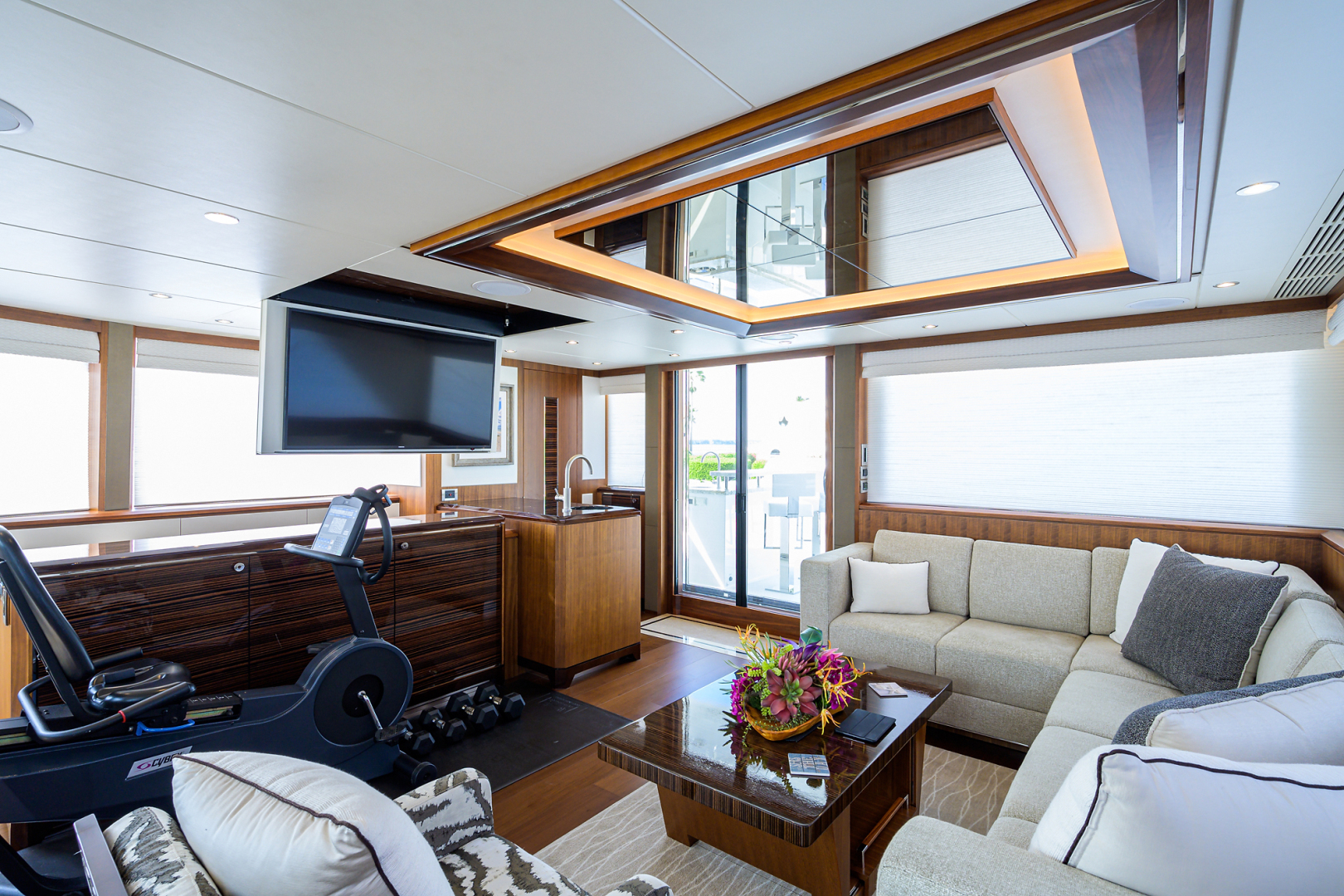

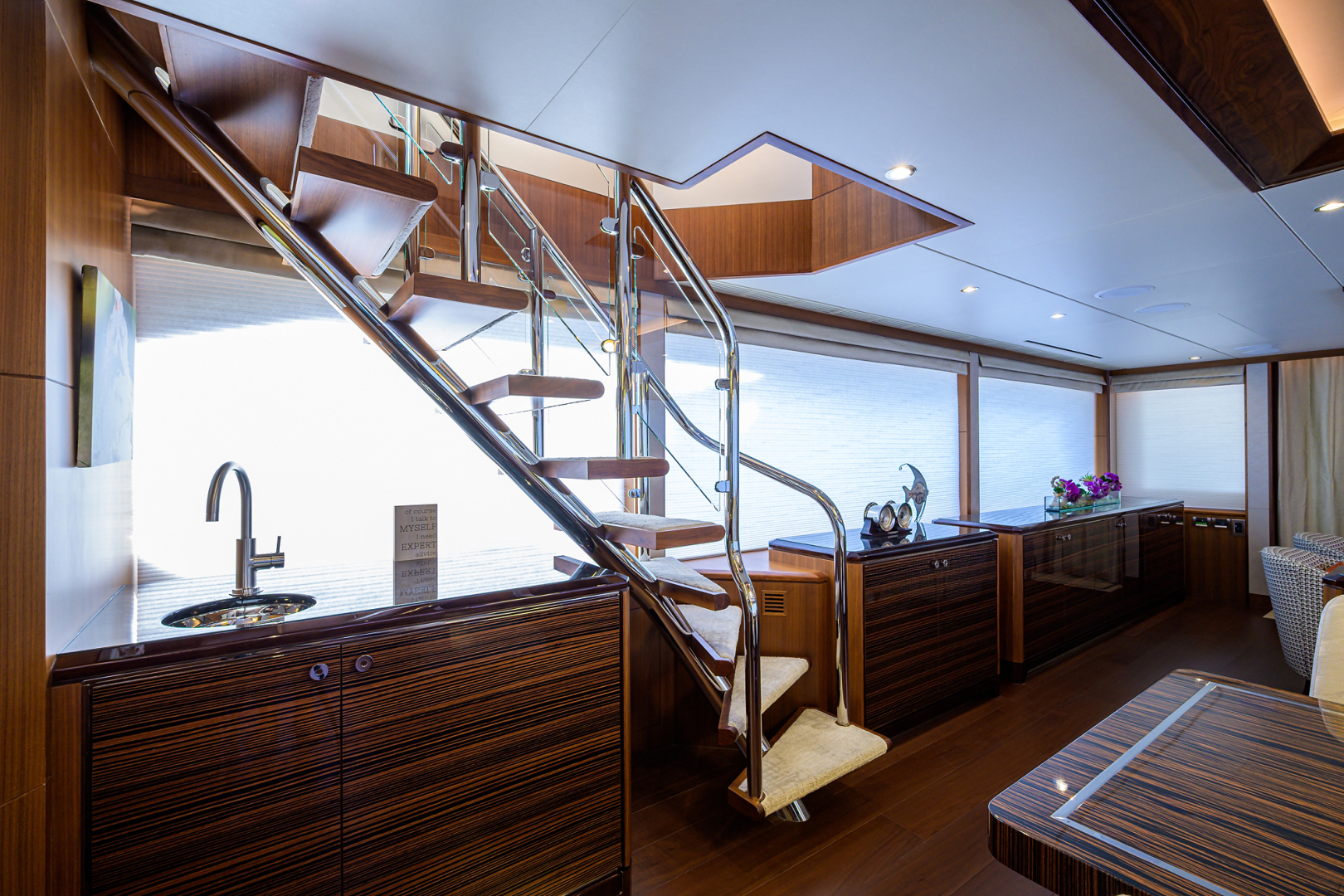

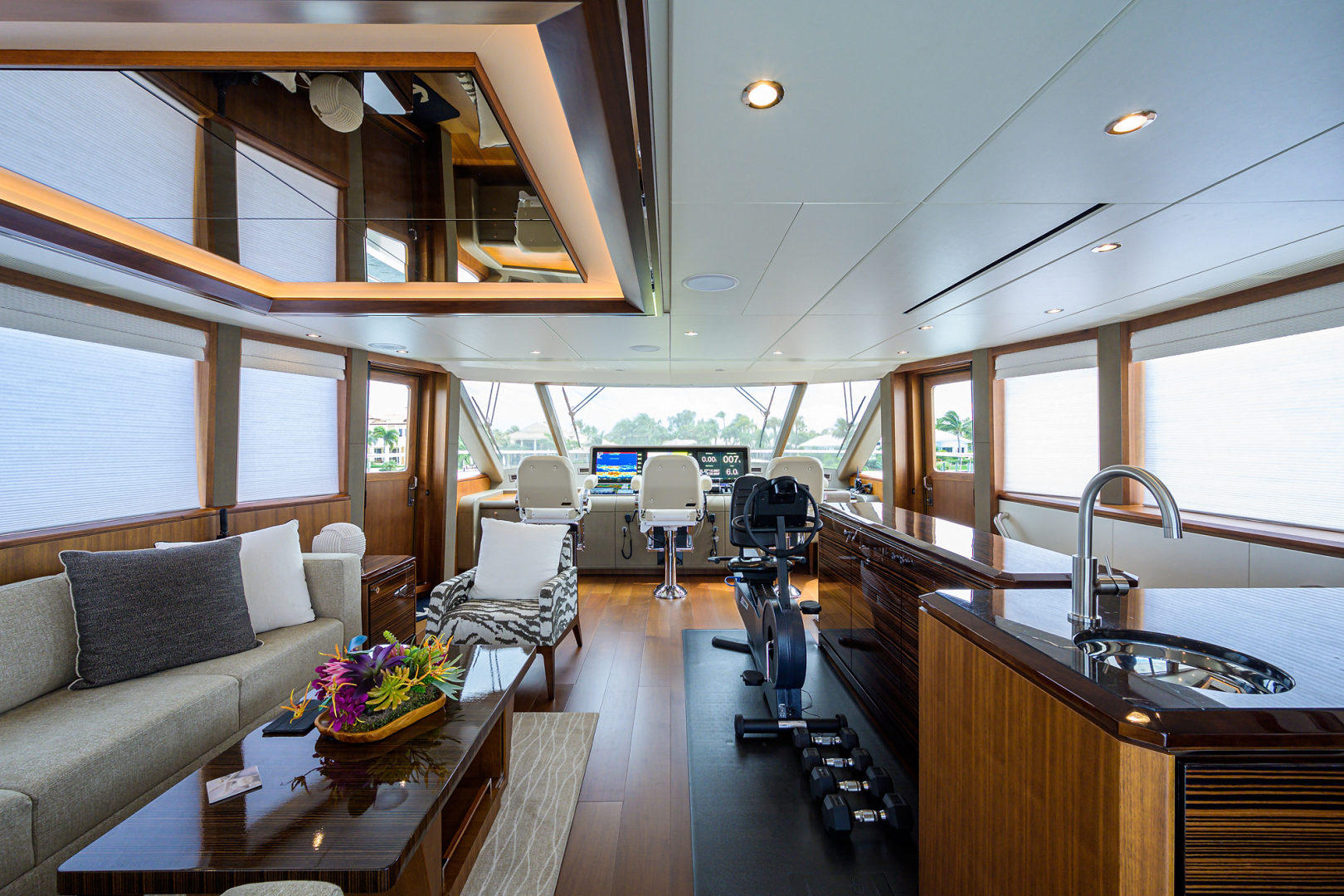

SKYLOUNGE :

• Cabinet including wet bar, Jenn-Airâ„¢ refrigerator w/

doors and storage

LED 50" flip down TV with A/V System

• Wood valance board

• Settee with wood table

• Day head

• Chart locker

• Phantom screen (for insects + pollen protection) with

dedicated wood box for door

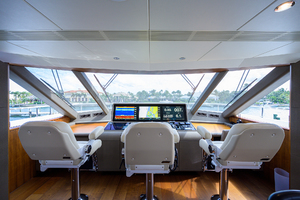

• Electric Stidd helm seats x3

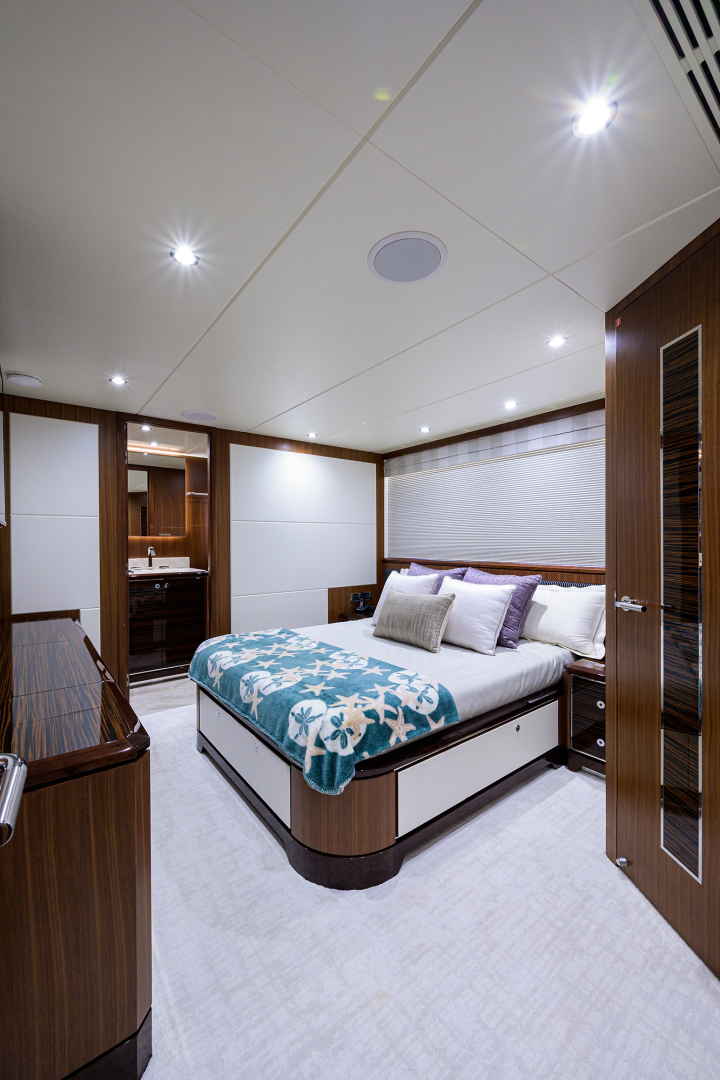

TWIN VIP STATEROOM:

• LED 50" TV

• Double berth

• Two nightstands with wood countertop

• Vanity table with chair

• Walk-in closet

• Storage cabinets

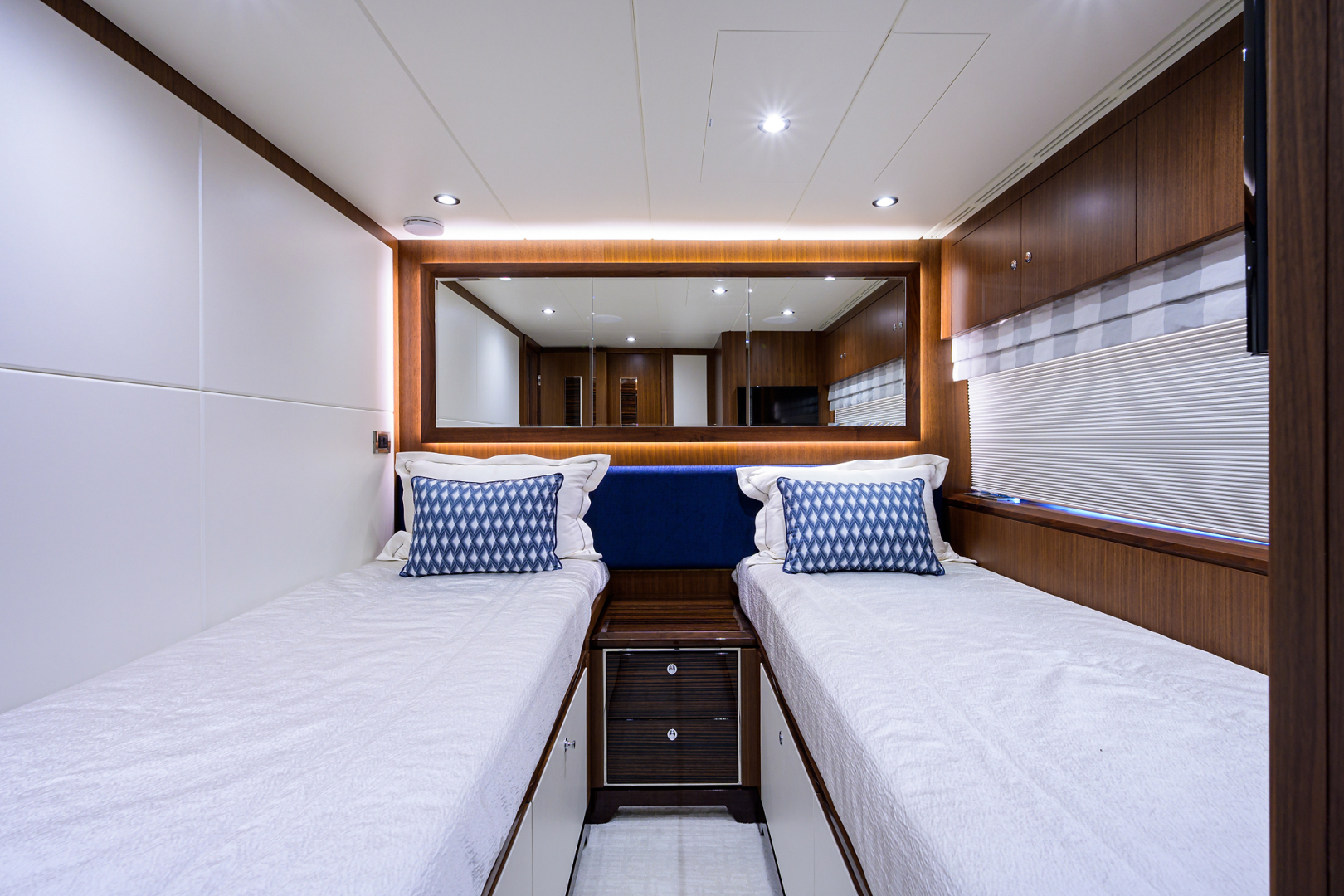

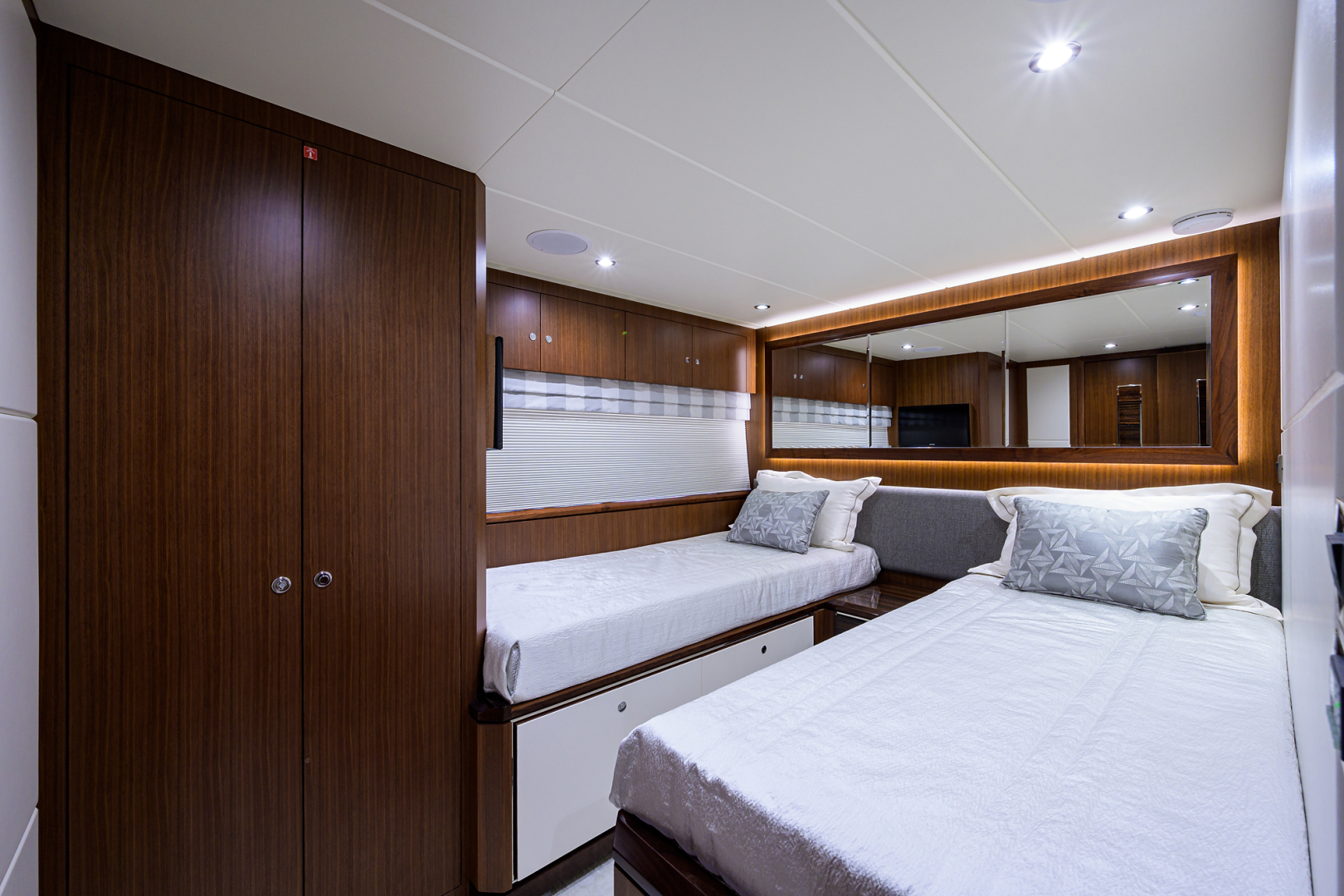

TWIN GUEST STATEROOM:

• LED 24" TV

• Nightstands with wood countertop

• Cedar-lined, Full-height hanging locker with lighting

• Side-by-side berths can slide together and convert to

single queen berth.

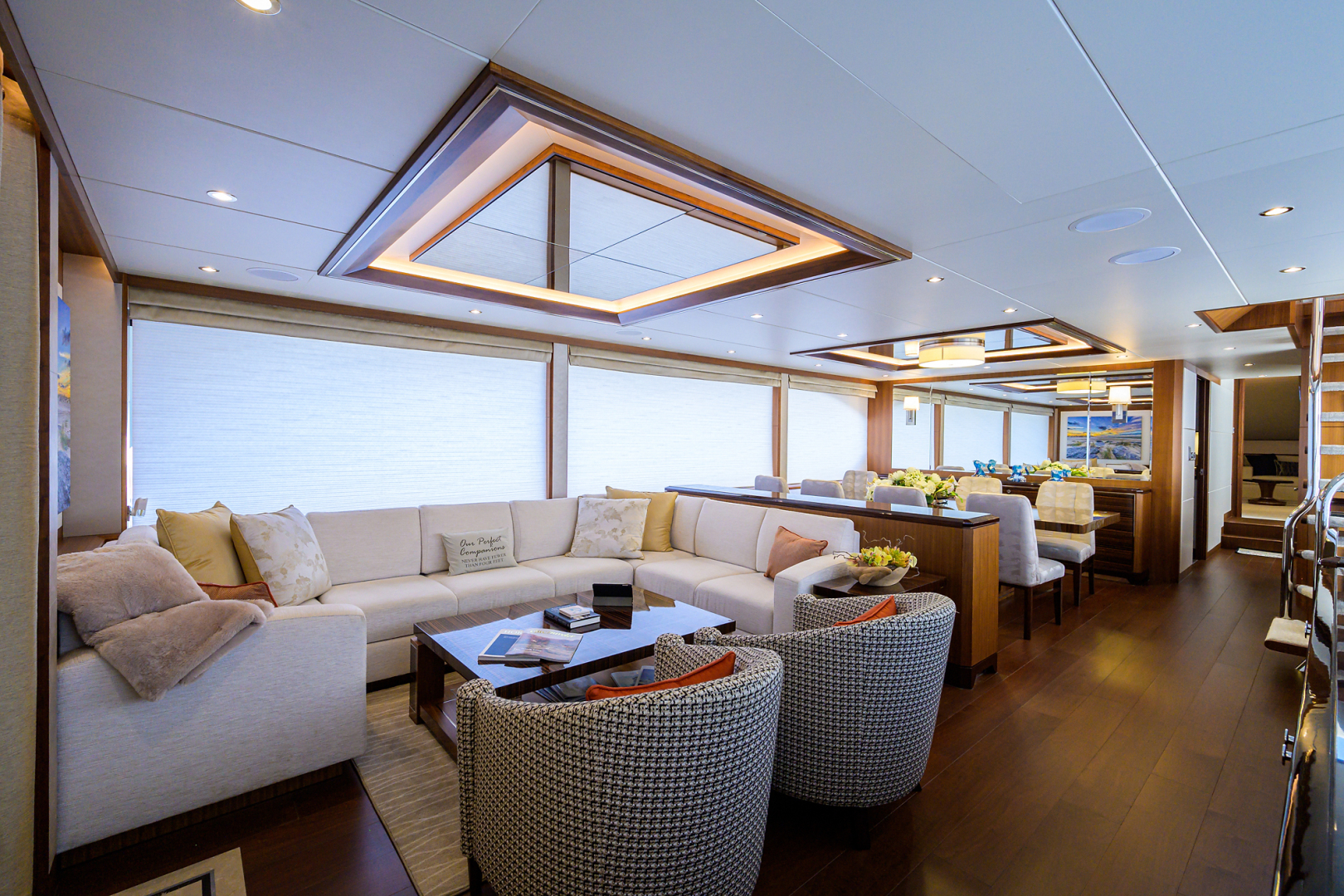

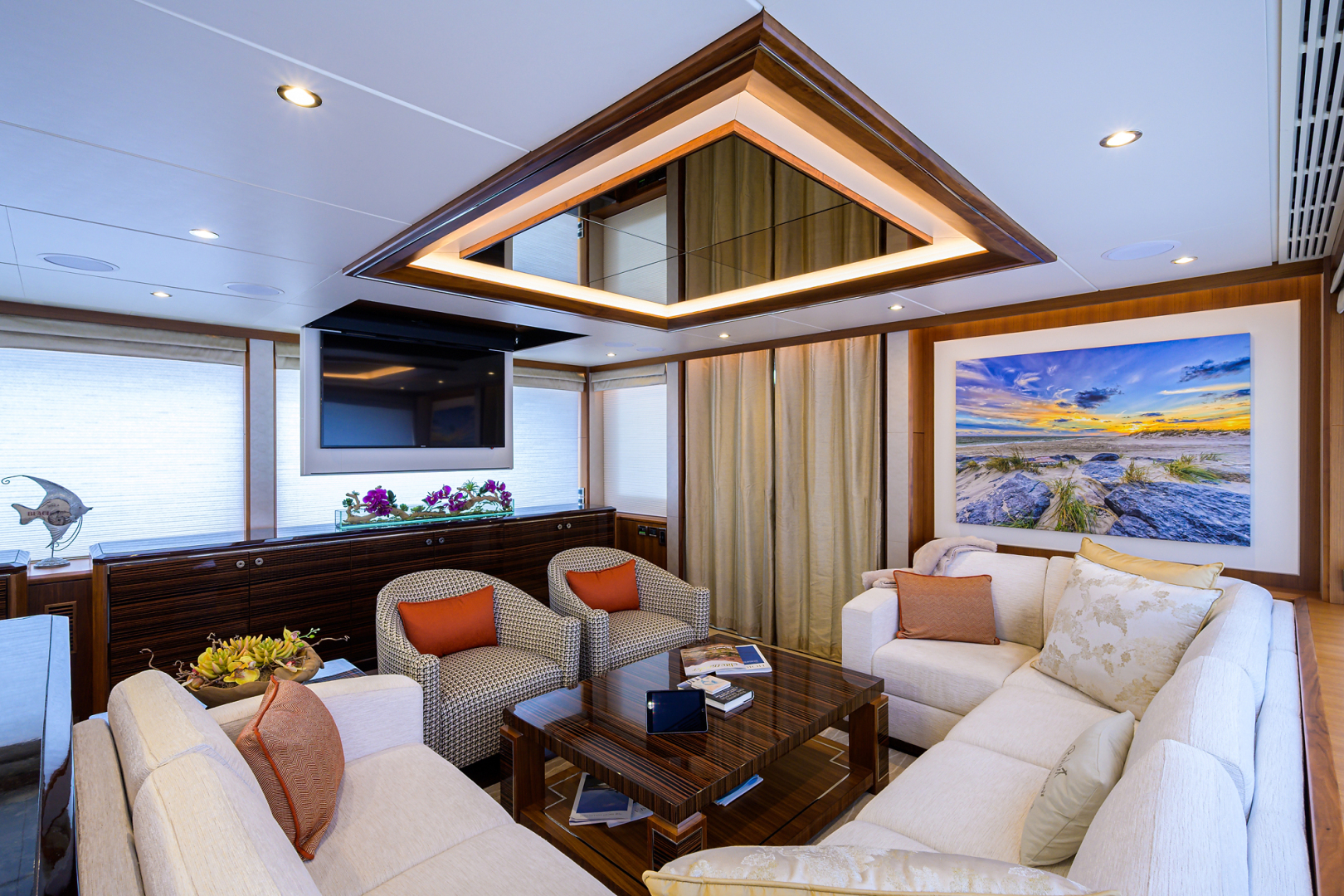

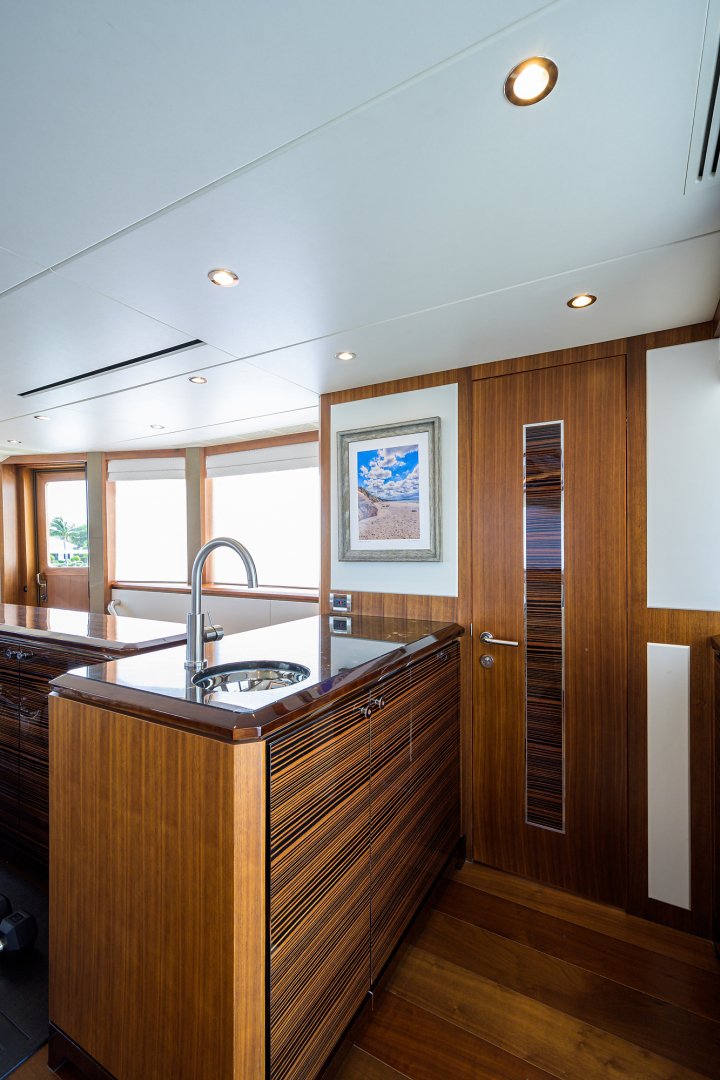

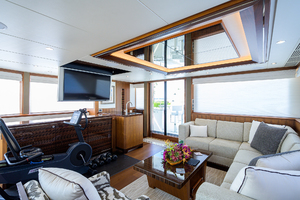

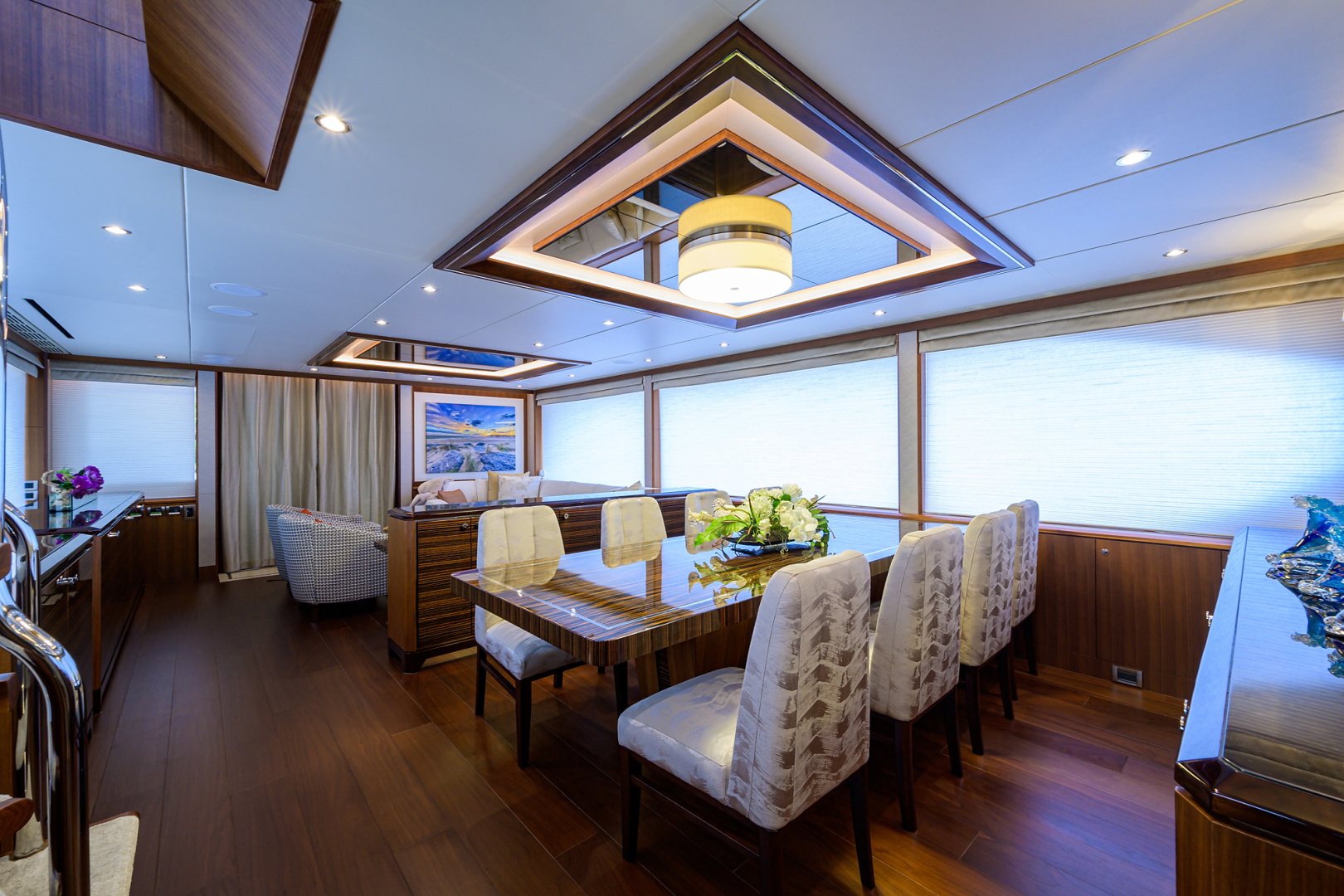

SALON:

LED 60" flip down TV with blue-ray A/V system

• Wood paneling and cabinetry

• Evan K Marshall custom design salon furniture and sofa.

Sofa includes concealed drawers for intelligence use of

space and increase storage

• Stone countertops at wet bar, entertainment cabinet,

stbd cabinet front wall cabinet and dining room divider

cabinet

• Custom designed window mullion

• Decorative ceiling treatment

• Phantom screen (for insects + pollen protection) with

dedicated wood box for door

• Enlarged windows in salon with custom engineered

solution incorporation marine grade aluminum beams

allowing for industry leading window expanse.

Incorporate (where possible) A/C outlet from ceiling,

provides unobstructed view to outside (Design cues from

135, improved for 2017)

• Sylomer floating floor and wall

• Sub Zeroâ„¢ refrigerator

• Salon custom wood floor in lieu of carpet

CREW QUARTERS:

• Largest crew quarters in its class with Ocean Alexander's

unique design, the crew quarters doubles as a Cabana.

Allows for day head and rest/eat area for swimming/out

of water activities without needing to access salon/main

deck interiors

• LED 32" TV at captain stateroom with satellite receiver

Cedar-lined hanging locker with automatic lighting in

captain stateroom

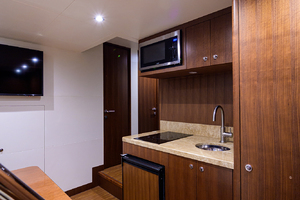

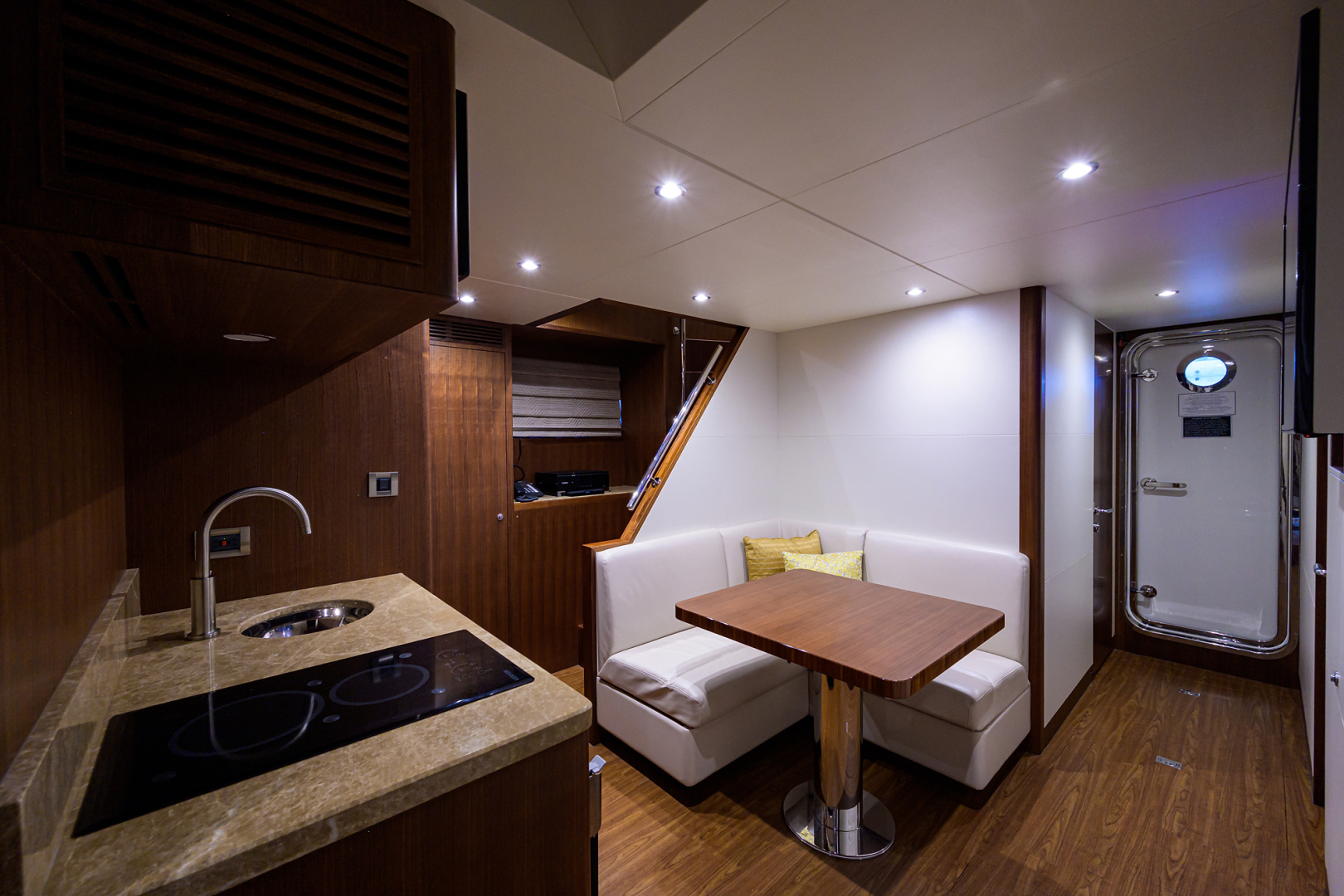

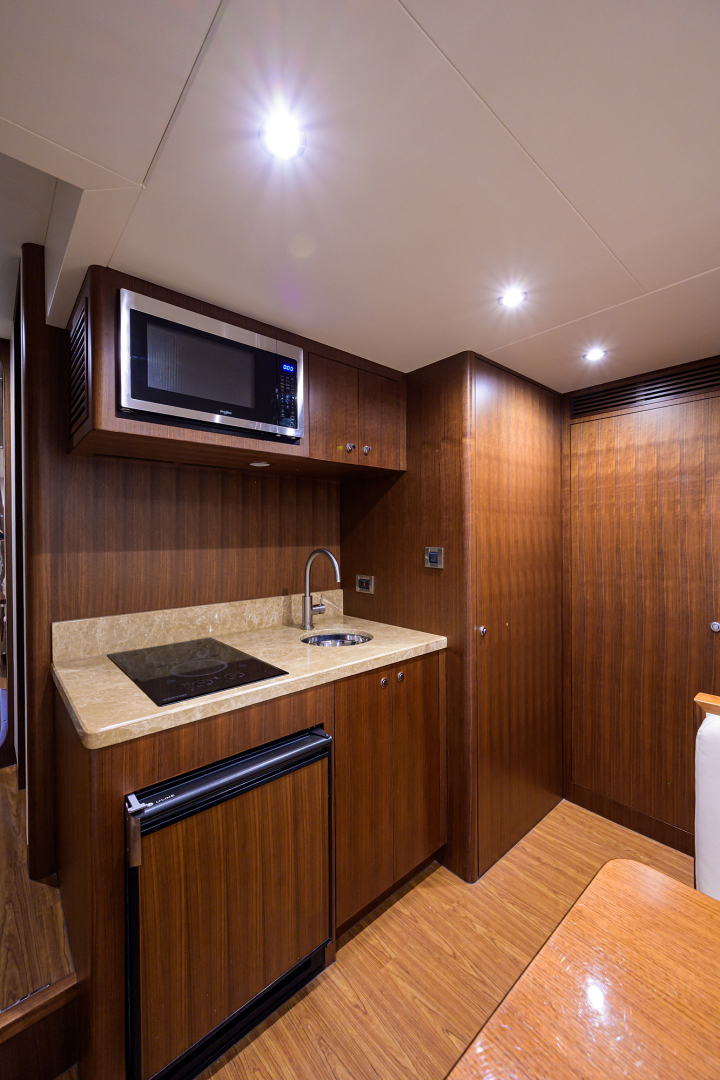

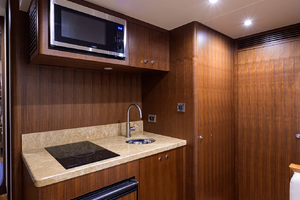

• Kitchenette (sink, microwave, cooktop and refrigerator

w/ice maker)

• Storage locker

• Drawers under bunk

• Microwave Oven

• Captain quarter includes desk with storage and N2KView

linked Apple ipad for systems diagnostics/alerts/settings.

Full height hanging closet and queen size berth with

storage under

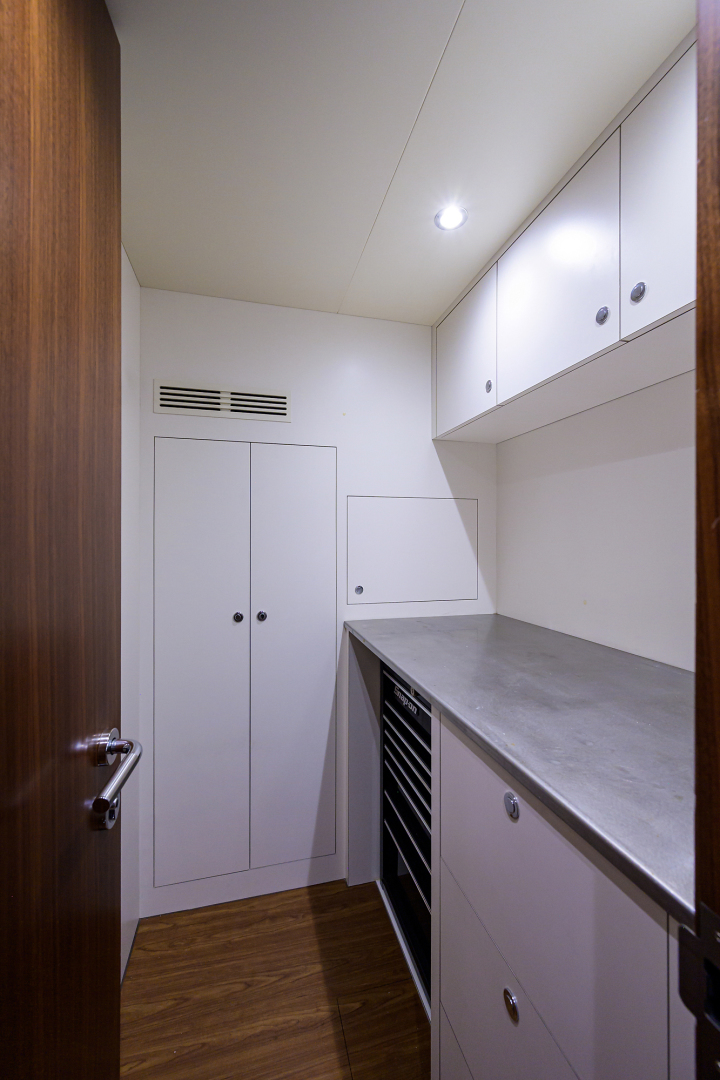

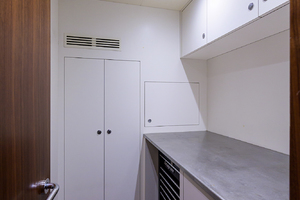

• Dedicated stainless work bench and Snap-on tool chest.

Also includes a wet locker (with ventilation and separate

water drain) and storage compartment. All staterooms

fully air-conditioned

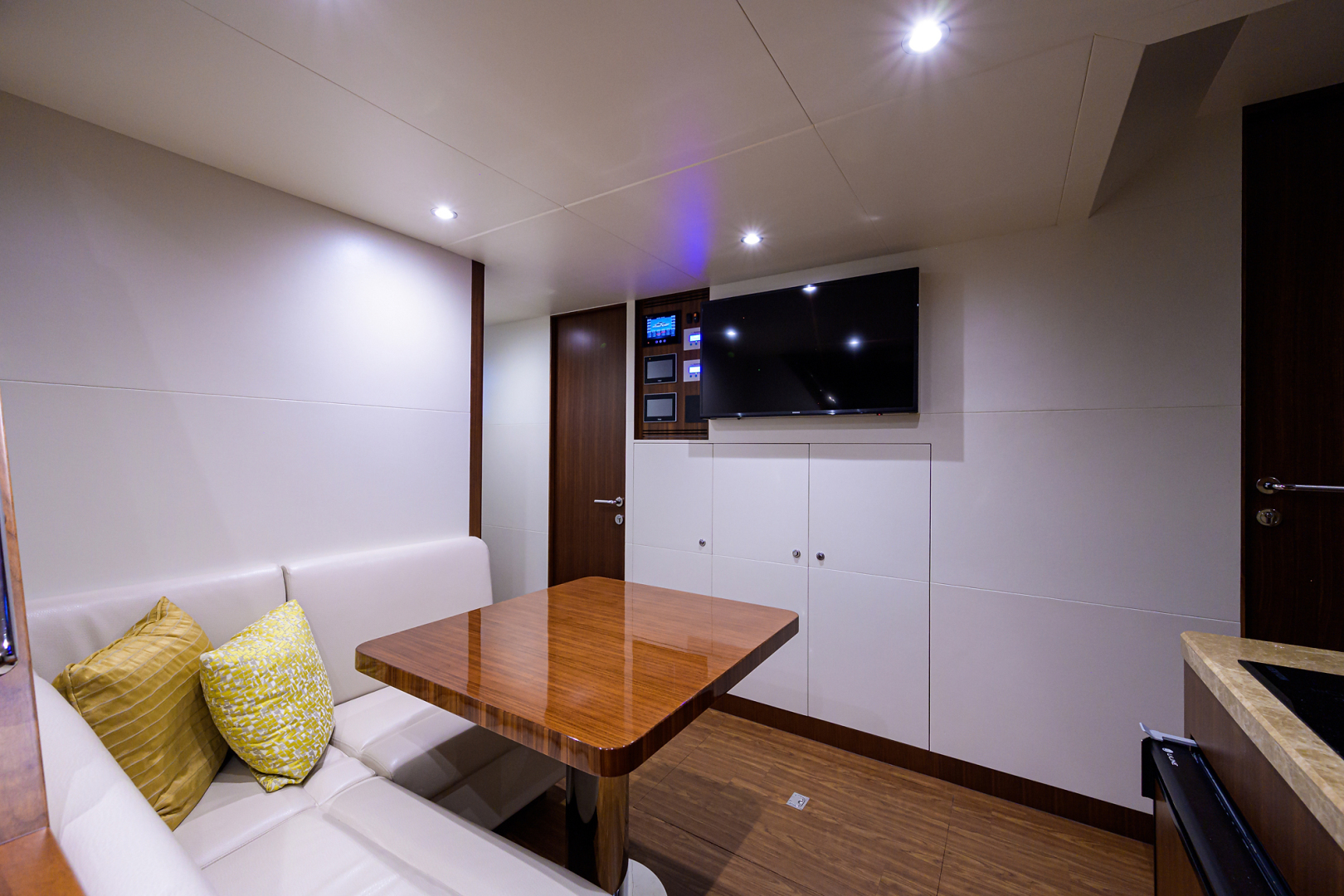

• LED 40" TV with satellite receiver at crew lounge

• Crew quarter w/private head & shower

INTERIOR DÉCOR:

• Wood paneling and cabinetry in semi-gloss

• Walnut wood satin finish

• Interior ceiling panels removable and finished with

diamond faceted edging. Provides a sharper and

structured tailored look. (Design cues from 135)

• Evan Marshall designed interior pilot station and display

pod. With matching wood w/ Faux leather and "floating"

display pod. Ergonomically designed and laid out to

enhance pilot experience/performance. (Design cues

from 135)

• Custom designed and water jet cut stone with stainless

steel insert in lower foyer and master bathroom. (Design

cues from 135)

• Carbon monoxide and smoke detectors

• Air extraction in each head shall be by low noise

extraction fans, switched separately from lights

• Opening port holes for staterooms and twin VIP heads

• High quality European door locks

• Cedar-lined, hanging locker with auto lighting

• Fabric covered walls for lower walkway walls

• Concealed hinges throughout interior cabinets

• Ergonomically designed mattresses and settees

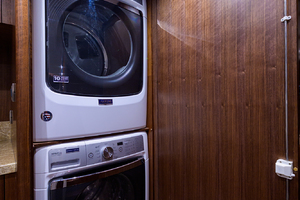

• Washer/ dryer (Commercial quality, Energy star

washer/dryer) in lower foyer

• Danby refrigerator in lower foyer

• $70,000 décor allowance for carpet, bed spreads, and

soft goods

• Electrical blinds for salon, dining, and master(excluding

dayhead) and skylounge (excluding dayhead)

• USB power plug at skylounge counter top and inside MSR

nightstand

• Dedicated oversized drawer for golf club/sport

rackets/bulky items storage under MSR berth

• Crestron Audio/Video & lighting control package

GALLEY:

• Wood panel and cabinetry with positive-latch doors or

proprietary drop-lock drawers. Provides containment of

stored objects while underway (Std. feature often ignore

by competitor)

• Galley storage cabinetry w/hidden hinges

• Stone countertop

• Stone floor in galley

• Elkayâ„¢ professional series kitchen sink w/ pull out tap

• Overhead dish locker fwd & stbd

• 30" Thermadorâ„¢ electric cook top

• 30" Thermadorâ„¢ electric oven

• Sub-Zero® Refrigerator/ freezer

• Sub-Zero® ice maker

• Sub-Zero® wine cooler

• Whirlpoolâ„¢ garbage disposal

• 30" Vikingâ„¢ Over-the Range Microwave with exhaust

blower

• Thermadorâ„¢ dishwasher

• 15" Whirlpoolâ„¢ trash compactor

• Seagullâ„¢ water purifier (ADEX design award winner w/

filtration to 0.1 microns & EPA certification for

microbiological purification)

• Custom s/s potholder for cook top

• Kessebohmer magic corner storage

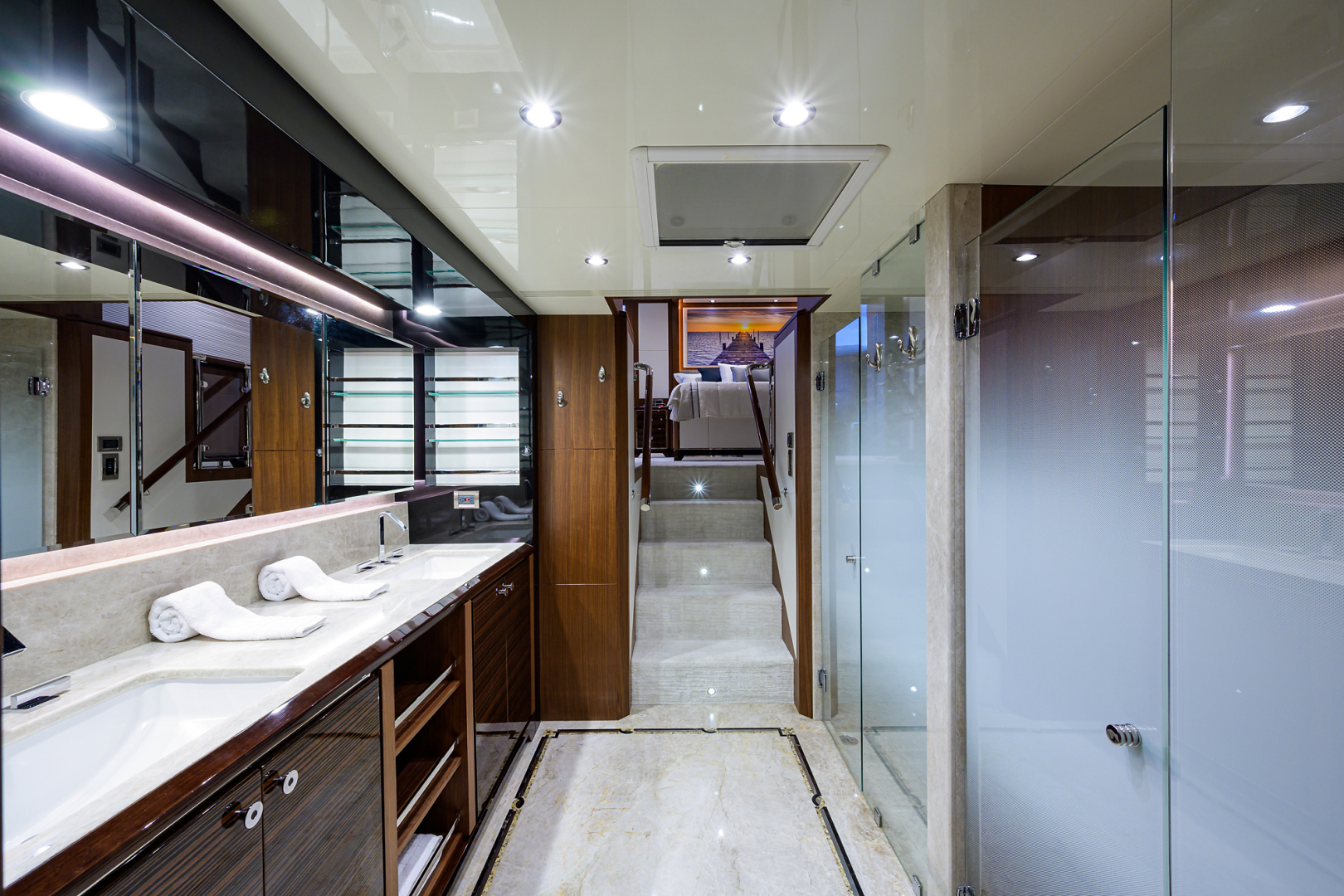

HEADS:

• Wood paneling and cabinetry

• Stone countertop with china sink

• Seamless fiberglass stall shower w/ one-piece glass door.

Industry leading seamless one-piece shower stall design

provides long term protection against moisture, water

intrusion behind the shower panels - leading to foul odors

and water damage (Unique OA feature)

• Shower door w/ stones frame. shower door shall use

"crystal clear" glass custom made for Ocean Alexander.

Providing superior transparency and reflectiveness.

Together with custom made for Ocean Alexander

"minimalist and transparent water strips" provides a

unique Ocean Alexander proprietary "Crystal Shower"

• Cabinet with mirror door above sink

• Air extraction in each head shall be by low noise

extraction fans

• Planusâ„¢ toilet system throughout with unique Ocean

Alexander proprietary "Toilet lock out" system. Provides

"lock out" of flushing when holding tank is full. Prevents

accidental spillage or "blow back" often found on

competitor yachts. Tankage status and alarm is standard

via N2KView monitoring system.

• Custom bathroom fixtures

• Heated stone floor on MSR heads

EXTERIOR:

• Roof top with dedicated custom S/S ladder to

navigational electronics (Standard versus optional with

competitors)

• 2" elliptical 316L stainless steel handrails & stanchions,

main deck 1-1/2" on FB. Elliptical conforms better to

human grip than traditional round rails. Provides greater

"grip strength" for safety and comfort (Unique OA feature)

• 316 stainless-steel cleats

• Elec. stainless-steel sliding doors for salon and skylounge

with safety light curtain that senses obstruction and

protect for grandkids/pets. Also includes "foot-kick

button" control for operation when both hands with full

food trays/other items.

• Two S/S flag poles, Fore and aft

• Teak and stainless steel swim ladder, foldable

• Weather-tight door on transom for access to engine

room/ crew quarters

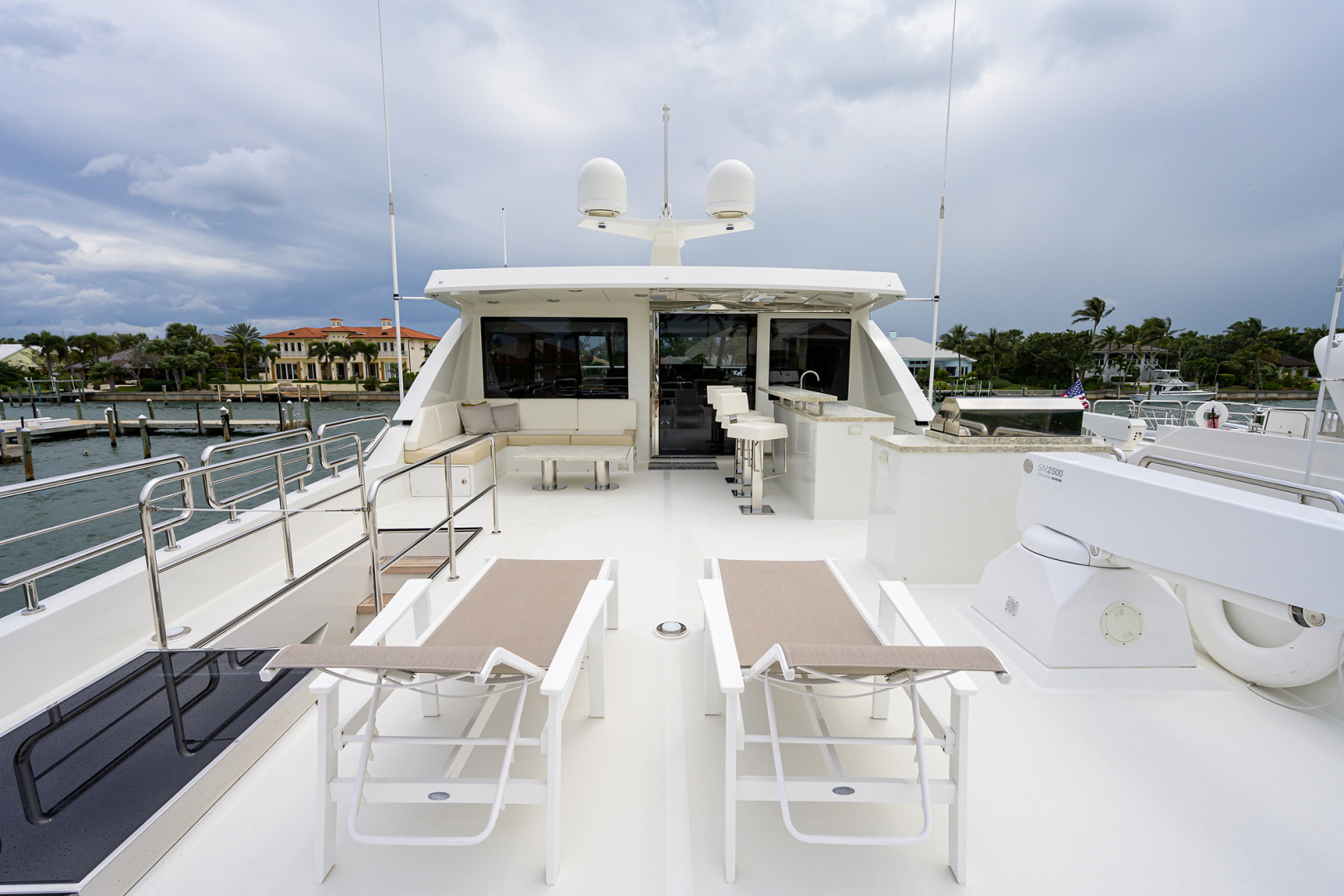

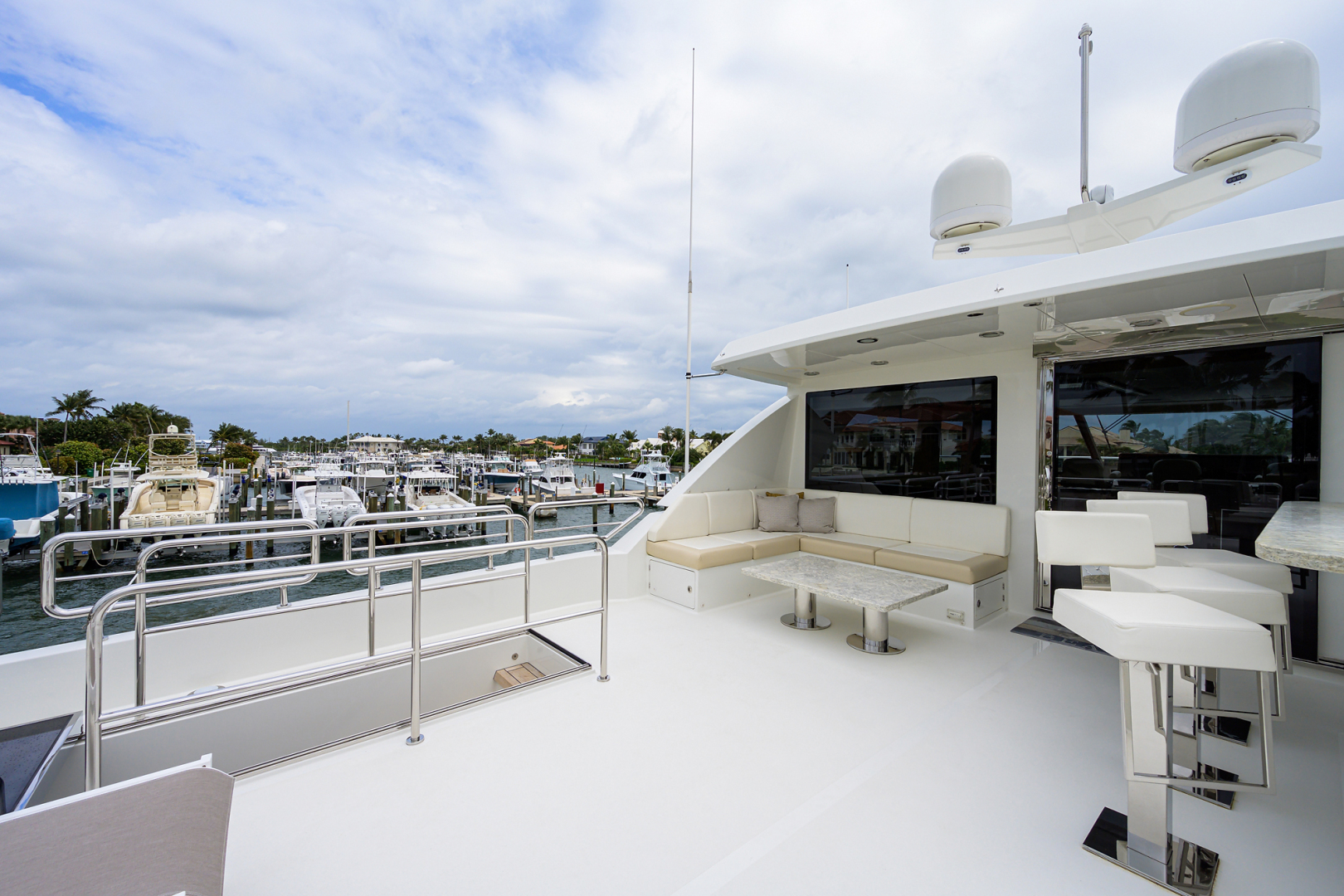

• White non-skid fly bridge deck

• 32" Electric-Chefâ„¢ electric barbecue custom-made for

OA using 316 S/S, versus competitors' 304 materials.

• Boat deck seat w/storage underneath and stone table

• Fiberglass stairway up to flybridge from cockpit w/teak

steps

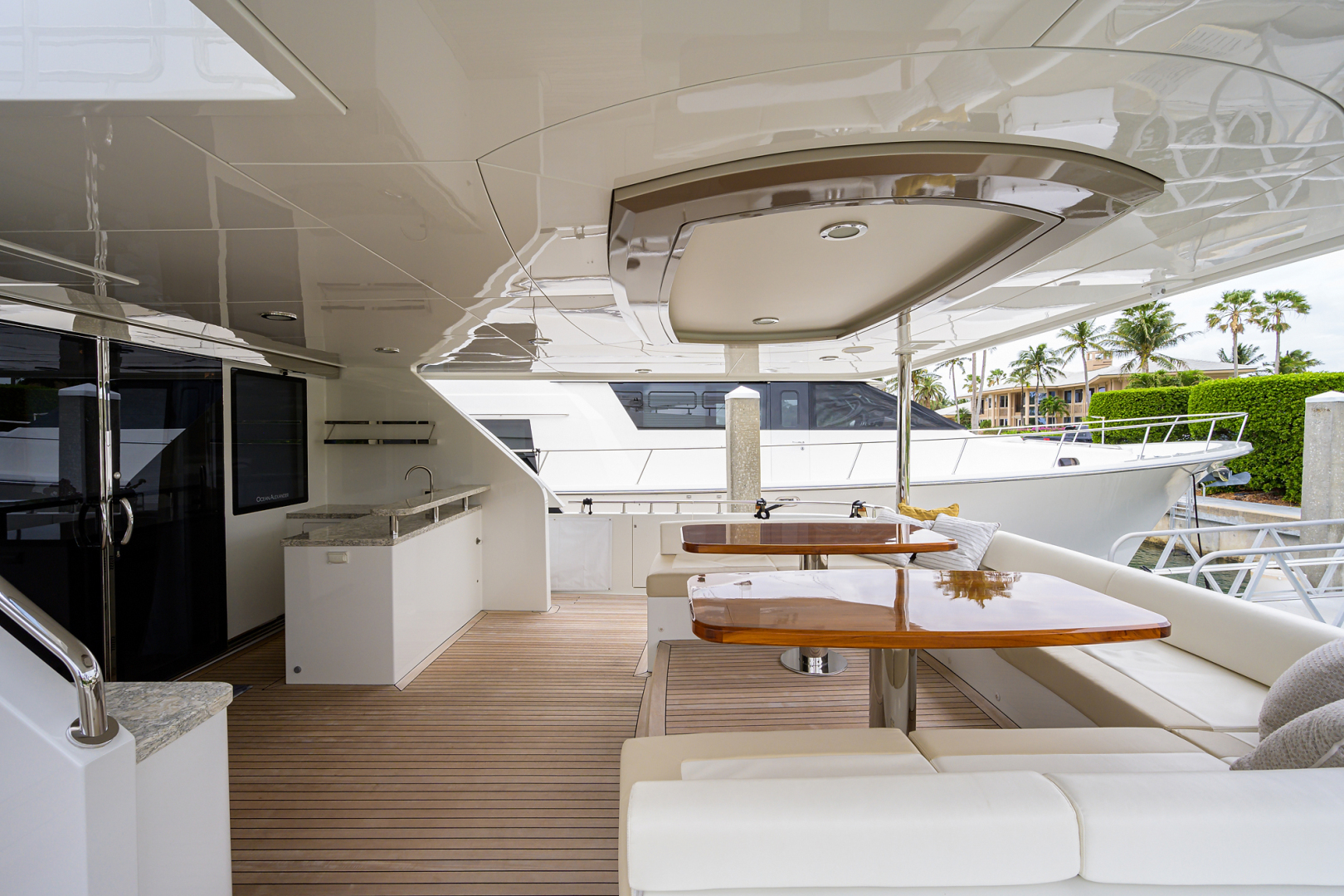

• Teak deck for aft deck and walkway to midship

• Teak swim platform w/ teak steps

• High bulwark w/ flush-mounted deck lights

• Side boarding gates in cockpit

• Recessed boarding ladder on starboard gunnel with OA

logo teak steps (Unique Ocean Alexander standard

feature. Competitors either optional or not available)

• Boat deck outboard storage increased by 54% via

additional storage lockers on port and starboard where

possible

• Exterior ceiling panels removable and finished with

diamond faceted edging. Provides a sharper and

structured tailored look. Also allows for easy service of

navigational electronics and plumbing runs. (Design

cues from 135)

• Custom designed fender storage at bow/chain

locker/lazarette

• Bow seating w/ concealed pop-up lighting and hi-lo

table convert to sun pad and exterior speakers w/ audio

streaming ability

• High output LED underwater lights x 8

• S/S transom gates for pets/children protection

• ACR searchlight with remote on skylounge

• Pre-plumbing and wiring for Jacuzzi

• Manual awning for flybridge with custom made stainless

steel poles and marine-grade exterior. Ferrari mesh

fabric. Includes custom designed built-in storage for

poles.

• Manual awning for bow with custom made stainless steel

poles and marine-grade exterior. Ferrari mesh fabric.

Includes custom designed built-in storage for poles

• Custom exterior protection canvas and windshield mesh

cover for exterior seating and BBQ

• Flip down 32" TV from ceiling TV with satellite receiver

includes additional exterior speakers for full stereo effect

on fly bridge. Includes Bluetooth streaming ability direct

to exterior TV and speakers

• Flip down 40" TV from ceiling TV with satellite receiver

includes additional exterior speakers for full stereo effect

on aft-deck. Includes Bluetooth streaming ability direct to

exterior TV and speakers

• Aft-deck custom ceiling feature

• Boat deck sliding hatch

• 8-man life raft x 2 in valise bag

Mechanical Disclaimer

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.

Ocean Alexander Yachts

Ocean Alexander Yachts was born in 1977 with a mission to create the highest-integrity and superior-quality yachts on the water. This tradition has lasted and remains at the core of Ocean Alexander Yachts as it dominates the luxury motor yacht market. The rich design elements fused with the superior maneuverability and propulsion efficiency make this brand an alluring one. Ocean Alexander knows that a motor yacht is not a necessity; therefore, it should be a thing of beauty. Your yacht should have a presence you instantly associate with freedom, adventure, and luxury. Ocean Alexander has perfected the art of luxury while it has simultaneously made its vessels eminently livable and among the most technically accomplished in the industry.

HMY Yacht Sales

Since 1979, HMY Yacht Sales has been among the most trusted brokerage firms in the industry. For decades we have continued to instill confidence in our clients who choose to buy and sell with us. Our goal is to provide you with the highest level of customer satisfaction combined with HMY’s renowned yachting expertise. When you choose your next brokerage firm, make sure to select the one that is the most experienced and knowledgeable. HMY’s expansive network of sales professionals, support teams, yachting industry experts, and customers have been our recipe for success; and we’ve earned the trust of our clients from around the world.

HMY Sales and Marketing Network

HMY Yachts is known for delivering sales results. We sell a pre-owned yacht every 21 hours at an average value of $1,000,000. With accelerated sales results like this – there’s no better firm you can trust to sell your yacht. We invest heavily in online yacht marketing; and exposing your yacht to the right target buyer is one of HMY’s strengths. Plus, we activate and engage a high-performance network of brokers and buyers with walkthrough videos, virtual tours, MLS, email, magazines, digital campaigns, and our latest virtual tool, “Go Live with HMY”, for real-time exposure. HMY’s accelerated yacht sales approach generates leads and sales at record levels. We connect buyers with our brokers quickly – to get your yacht sold. Call HMY today. We’ll put a world-class sales and marketing strategy together to sell your yacht so you can have peace of mind.

• Substantial investment in marketing/advertising
• Advanced digital tools and real-time technology
• 12 offices and 50 brokers throughout SE Florida and the SE United States
• Professional photography, video, and virtual tours that capture customer interest
• More leads. More conversations with buyers
• More opportunities to sell your yacht
• Proven yacht sales expertise that gets results
