HMY Yachts

Sea Ray Yachts

500 Sedan Bridge

1990–94

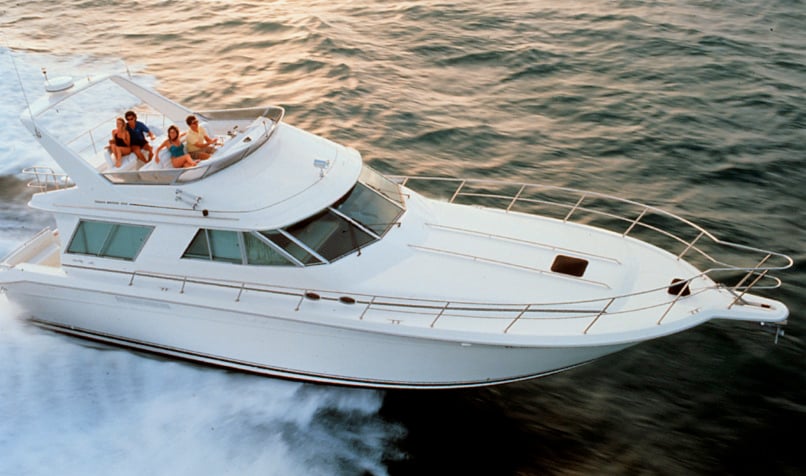

Sea Ray Yachts 500 Sedan Bridge
The largest model in the Sea Ray fleet when she was introduced in 1989, the 500 Sedan Bridge was considered a serious luxury-class yacht by the standards of her day. The hull is fully cored and it’s worth noting that Sea Ray had issues with cored hulls in the 1990s—something to keep in mind for perspective buyers. A good many sedan yachts this size have two staterooms, but the 500 has three including a big master stateroom and surprisingly roomy starboard guest stateroom. The third guest stateroom is located port featuring upper/lower berths. Aft in the companionway is a washer/dryer combo. The salon is impressive, a wide-open living area with cut-down galley, long leather sofa, and big wraparound cabin windows. Both heads have separate stall showers, but the second day head is on the small side. Topside, the flybridge of the Sedan Bridge is another big attraction—it’s huge with seating for 6–8 guests. The cockpit, however, is way small. The drooping bow of the Sea Ray 500 will raise eyebrows with experienced boaters (meaning there are probably better headsea boats). Detroit 550hp 6V-92 cruise at 20–22 knots.
Additional notes (BoatUS)
Overview: Onetime Sea Ray flagship combines enduring styling with spacious interior, deluxe amenities, good open-water performance.@Features: Appealing three-stateroom layout with wide-open salon boasts large owner’s stateroom, full dinette, breakfast bar, concealed washer/dryer (beneath salon floor). Party-time flybridge can entertain a dozen guests. Transom door, radar arch, bow pulpit were standard.@Comments: Large salon results in a fairly small cockpit.@Performance: GM 550hp diesels cruise at 20 knots; 735hp GMs cruise in the high 20s (low 30s top).

Floor Plans

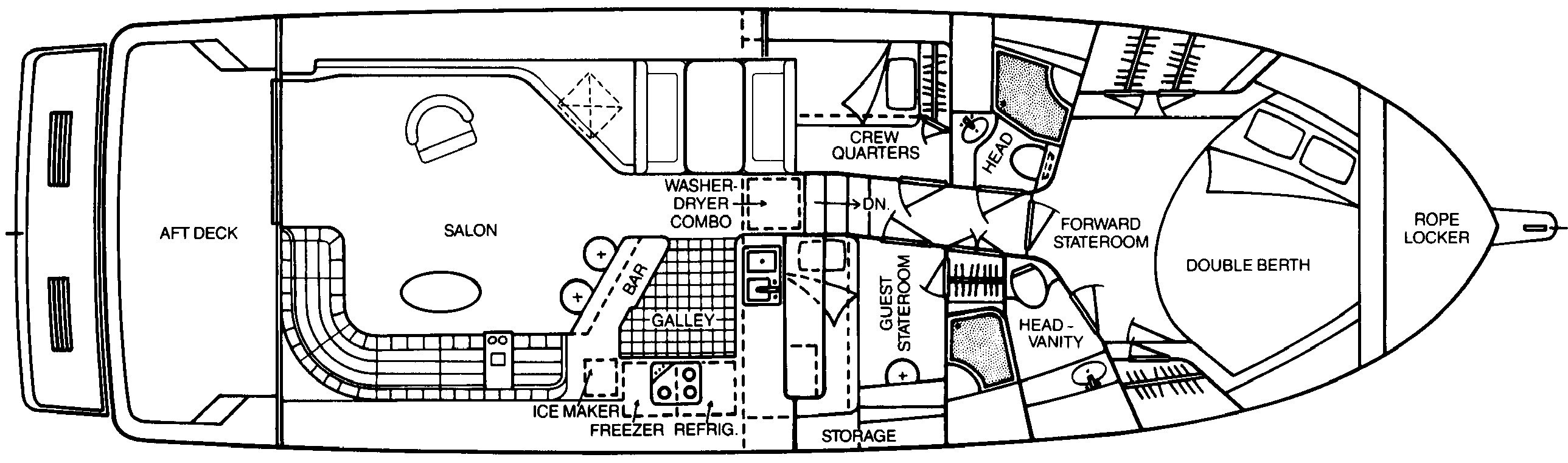

Sea Ray Yachts 500 Sedan Bridge floor plan

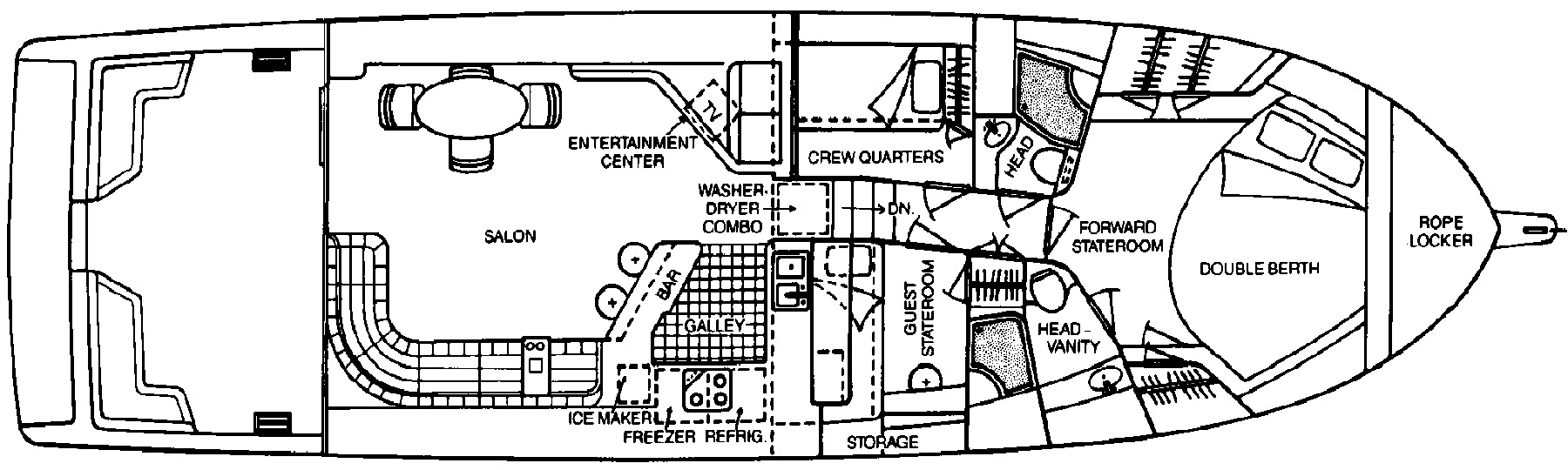

Sea Ray Yachts 500 Sedan Bridge floor plan
